Heat Resistance Metal Random Packing

FOB Price:	600.00 - 1,900.00 USD/Cubic Meter
Supply Ability:	12,000 Cubic Meter/Cubic Meters per Year
Shipping:	Within 5 days for ready goods after payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Evanohm Foil

Price:

Min. Order:
Diamond mounted points

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangxi in China
Packaging Details:	Jumbo bag

Quick Details

Chemical Composition: N/A
Dimensions: 16mm, 25mm, 38mm, 50mm, 76mm
Material: Stainless Steel
Shape: Ring
Application: Industry
Model Number: metal random packing
Brand Name: Chemxin
Certificate: BV&SGS
Size: 16mm, 25mm, 38mm, 50mm, 76mm etc.
Material: SS304, 304L,410, 316, 316L, carbon steel etc.
Quality management: ISO9001:2008
Usage: Electronics Chemicals, Petroleum Additives, Industry

Specifications

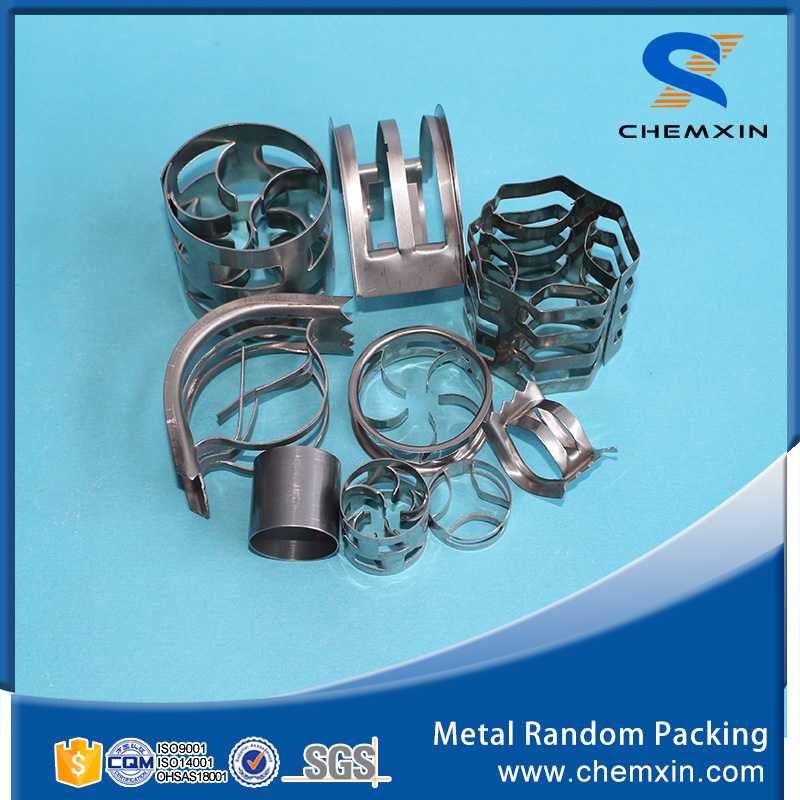

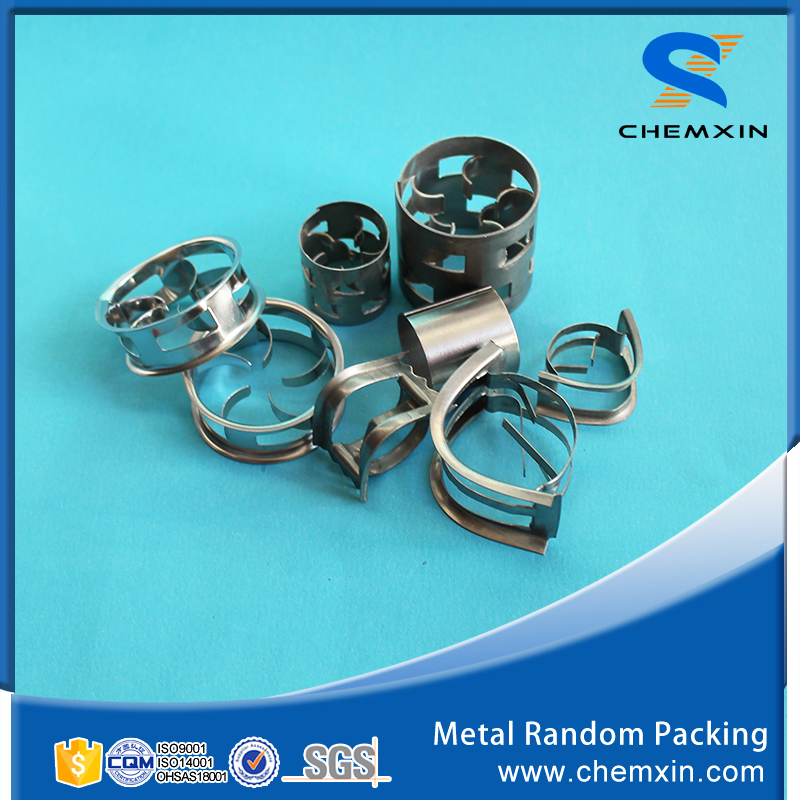

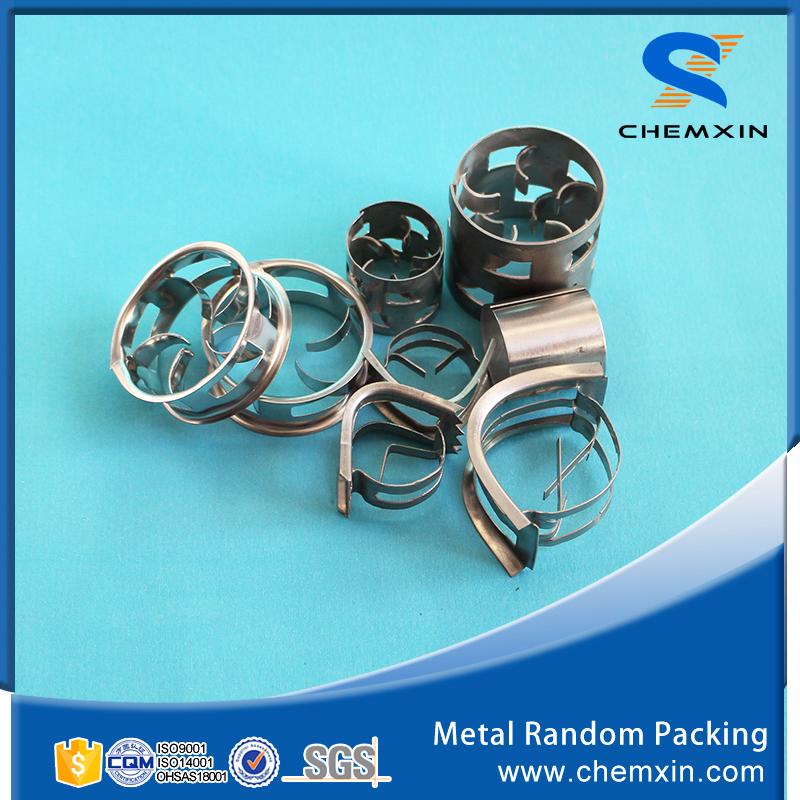

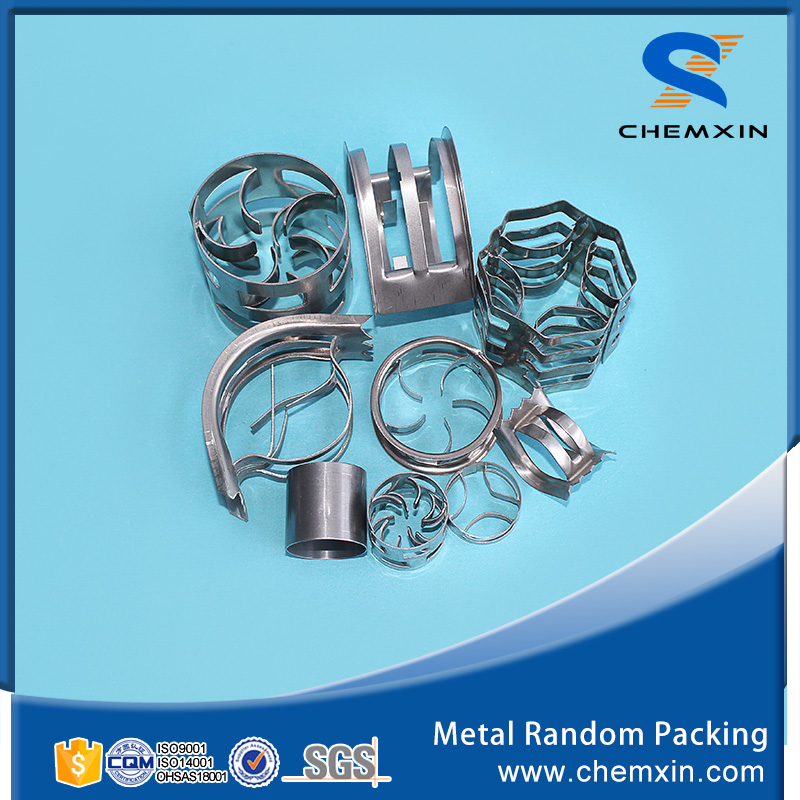

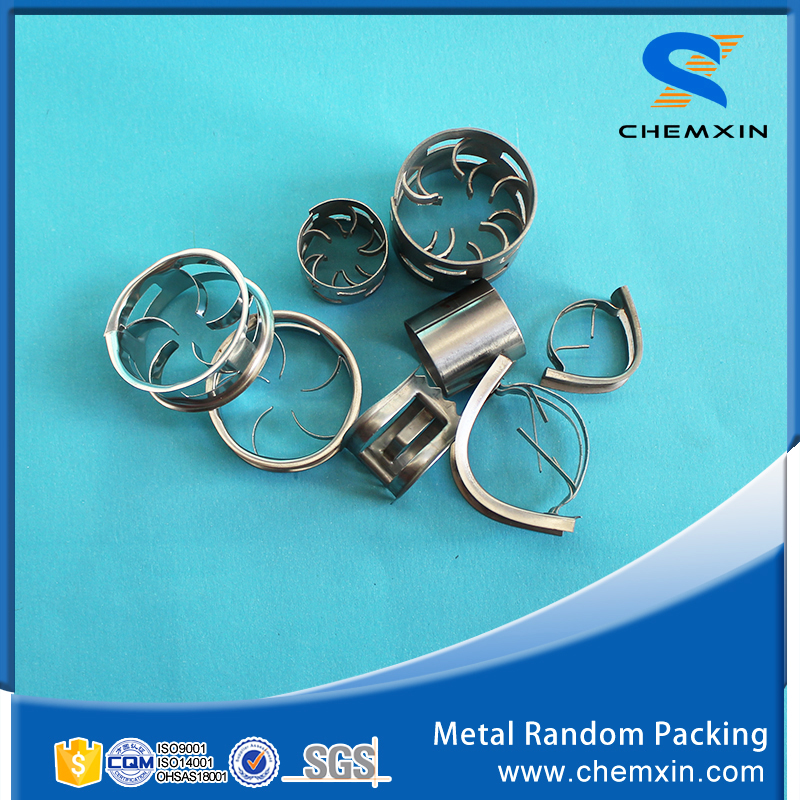

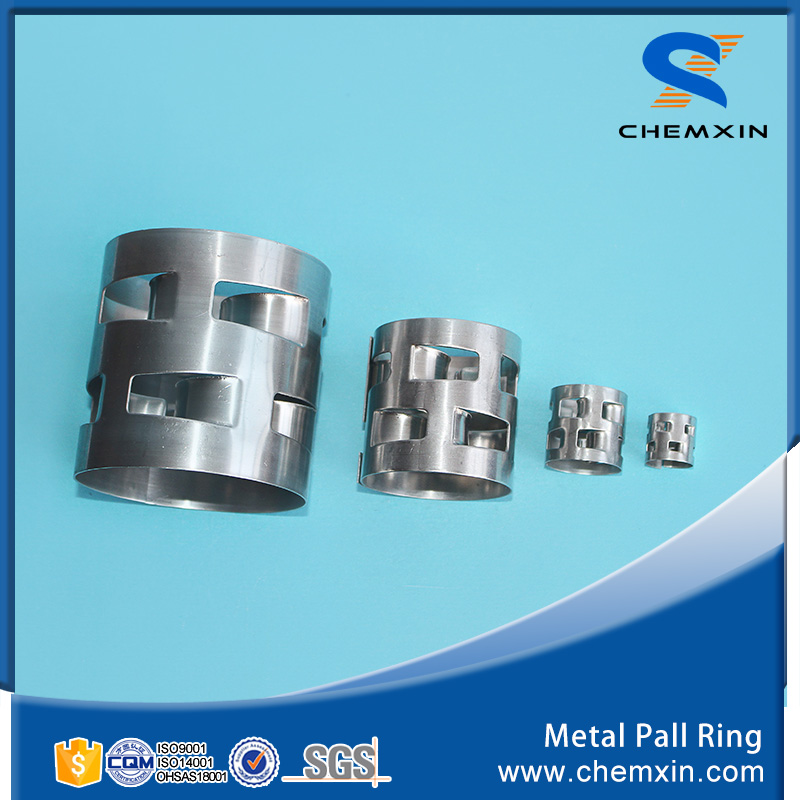

Metal pall ring is made of materi als like carbon steel, stainless steel or Aluminum alloy, etc. The product has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on. It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc...

Technical data

Sizes (mm)	Bulk density (kg/m3)	Number (per m3)	Surface area (m2/m3)	Free volume (%)
16160.3	360	201000	346	95.5
25250.4	302	51000	212	96.2
25250.5	400	51000	216	95
25250.6	461	51000	219	94.2
38380.4	218	15000	143	97.2
38380.5	262	15180	145	96.7
38380.6	328	15000	146	95.9
50500.5	194	6500	106	97.5
50500.7	285	6500	108	96.4
50500.9	365	6500	109	95.4
76760.8	205	1830	69	97.4
90901.0	229	1160	62	97.1

The above data is reference to material stainless steel (AISI304) in the material thickness shown. Other wall thicknesses are available on request.

Material available:

carbon steel, stainless steel including 304, 304L, 410,316, 316L.
