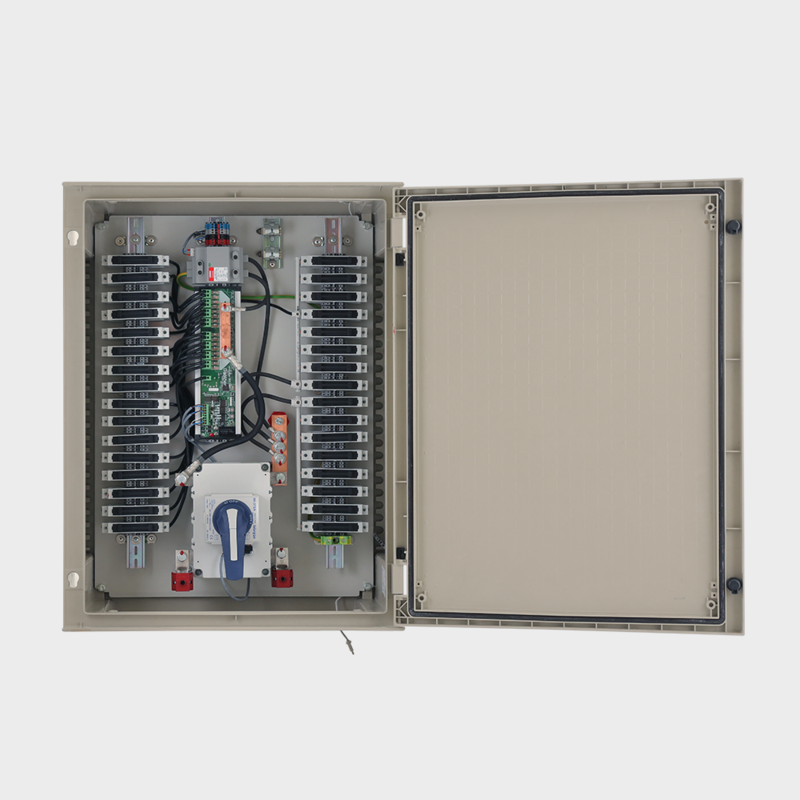

DC Combiner

Payment Terms:	T/T

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Channels	8, 12, 16, 24 PV strings can be connected, other versions available on request
VDC Layout	Consistent 1000 VDC layout (option 1500)
Inputs	Inputs for current, voltage and temperature
Overvoltage protection	1000 VDC and communication
Signal contact monitoring	Circuit breakers and protective devices
Signal conditioning	Calculated DC Power, linearization, mean value, Min/Max storage, alarm
Integrated LC display	Display of all readings including current and DC power for each string, configuration
RS485 fieldbus interface	Up to 115.2 kbps: Modbus-RTU, ASCII (optional OEM)
Connectivity	Can be connected to test controller and datalogger e. g. Q.reader oder Q.pac
Lever type switch fuse	In positive pole with contact protection
DC load break switch	Included
String connection terminals	1,5 - 10 mm² (optional MC3, MC4)
Housing	Heavy duty industrial quality material and workmanship, IP44, UV and weather resistant, -35°C bis +80°C
