>Products Catalog > SDI Tally Intercom Remote Return to Fiber Delivery from EFP Camera to OB Van
SDI Tally Intercom Remote Return to Fiber Delivery from EFP Camera to OB Van
| Supply Ability: | 50 Pair(s) per Month |
|---|---|
| Shipping: | FOB shenzhen |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 pair per carton box |
Quick Details
- Special Features: EFP
- Technology: Infrared
- Sensor: CCD
- Type: Analog Camera
- Brand Name: OEM/Beyondopto
- Model Number: BY-EFP-K3S
- optic adaptor Input power: DC 12~19V
- Power consumption: 10W
- Net weight: 1kg
- Appearance size: 160mm*100mm*44mm
- base station Input power: AC90~240V
- base station Power consumption: 10W
- Optical connector: Dul LC /FC/ST/SC/MX/ Lemo / Neutrik (optional)
- Signal format: SMPTE 424M, SMPTE 292M, SMPTE 259M
- SDI interface: BNC 75 Ohm
Specifications

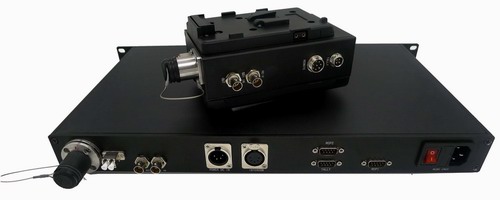

EFP SDI Fiber Optic Extender includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI or CVBS), Remote control data, genlock, intercom, tally, audio and 10/100M Ethernet are also provided. The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
FEATURES
Specifications:
General index
Work Temp
-25C to 55C
Storage Temp
-40C to 85C
humidity
0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input power
DC 12~19V
Power consumption
10W
Net weight
1kg
Appearance size
160mm*100mm*44mm(without V-mount / A-mount)
Optic Base Station
Input power
AC90~240V
Power consumption
10W
Net weight
3kg
Appearance size
19" 1U standard rack mount
Optical:
Wavelength
1310nm / 1550nm / CWDM
Output Power
-6~-1dBm
Rx sensitivity
<-18dBm
Transmission Distance
SM fiber 10+km , MM fiber 300m
Optical connector
Dul LC /FC/ST/SC/MX/ Lemo / Neutrik (optional)
SDI input/output:
Signal format
SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate
270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface
BNC 75 Ohm
Intercom:
Camera Optic Adaptor
Interface
4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone
Mic inputs with mute and pre-amps
Headphone
with volume up or down
Optic Base Station
Interface
Input:3pin XLR Female , Output: 3pin XLR Male or 5pin XLR
or 3.5mm headset jack
Audio
Balance or unbalance line level
Tally:
Camera Optic Adaptor
Interface
4pin air head or 3pin mini XLR
Output
Dry Contact Closure or wet +12V
On: short or +12V
Off: open or 0V
Optic Base Station
Interface
DB9(Male)
Input
Dry Contact Closure or wet
On: short to GND or TTL low Off: open or TTL high
Remote:
Camera Optic Adaptor
Interface
8pin air head or 8pin sony's remote interface
Data
RS422 /RS232/RS485
Optic Base Station
Interface
DB9(Male) or 8pin sony's remote interface
Data
RS422 /RS232/RS485
Ethernet:
Work mode
Full duplex/half duplex
Data Rate
10/100Mbps(AUTO)
connection terminal
RJ45
EFP SDI Fiber Optic Extender
Description

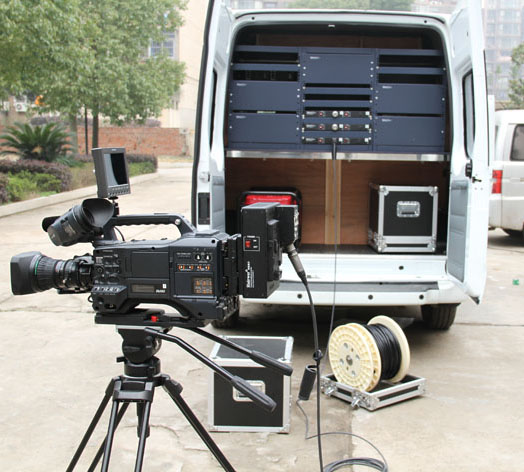

OB van Optical transmission from this supplier
