EFP camera fiber connection system(JM-EFP-S13)for live-Link SDI Over Fiber Transport Systems
| FOB Price: | 2,100.00 - 3,300.00 USD/Pair |
|---|---|
| Supply Ability: | 2,000 Pair/Pairs per Month |
| Shipping: | 25days |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Transmitter x1, Receiver x 1, Power wire x 1, Use mannual x 1 |
Quick Details
- Model Number: JM-EFP-S13
- Brand Name: JiaMinAVTech
- SDI Format: SMPTE 424M-2006, 292, 259 and DVB-ASI compliant
- Audio: Supports embedded audio and data signals
- weight: 5.8kg
- warranty: 3 years
- RX Dimension: 480 x 250 x 50 (mm) = 19
- material: aluminum
- distance: Single mode 10km / Multi mode 250~300 meters
Specifications
EFP camera fiber connection system(JM-EFP-S13)consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit a 3G/HD-SDI signal from the camera side to the Base Station and a return video (3G/HD-SDI),1x TC ,Sony Remote control data,intercom(support clearcom), 2xTally, The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto 2xSM fiber with ST interface.
EFP camera fiber connection system(JM-EFP-S13) Power supply:
This product is the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A shaped gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;and there's space for Lemo opto-electric hybrid cable power supply in the future.
EFP camera fiber connection system(JM-EFP-S13) Features:
Easily pass the Pathological test(extremely harsh environments)
SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals
Uncompressed lossless transmission without delay;
More than 10KM transmission distance up to a maximum 80KM; when the opto-electric hybrid cable power supply the distance up to 250 meters.
Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, V-type with a flexible pinch;
Supports Sony Remote control
Mic level input (with mute function) and amp functions (volume adjustment)
Tally output +12V or dry Contact Closure optional
Wide temperature range, low power consumption
V-mount battery optional
EFP camera fiber connection system(JM-EFP-S13) Application:
Television studio, mobile studio
EFP Electronic Field Production, major sporting events and large celebrations broadcast live
ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
EFP camera fiber connection system(JM-EFP-S13) Specifications:
General index
| Work Temp | -25°C to 55°C |
| Storage Temp | -40°C to 85°C |
| humidity | 0 ~ 95% (non-condensing) |
| Camera Optic Adaptor | |
| Input power | DC 12~19V |
| Power consumption | <10W |
| Net weight | 1kg |
| Appearance size | V-Type the size is 160mm*100mm*44mm |

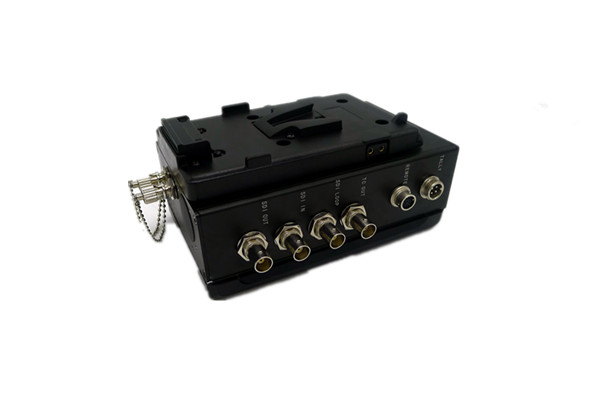

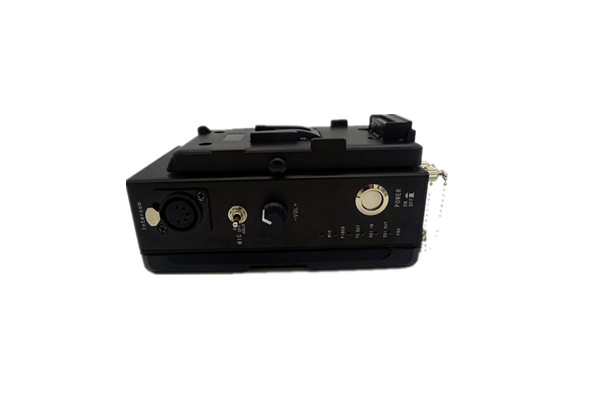

Camera optic adaptor image as below:
| Optic Base Station | |
| Input power | AC90~240V |
| Power consumption | <10W |
| Net weight | 3kg |
| Appearance size | 19" 1U standard rack mount |

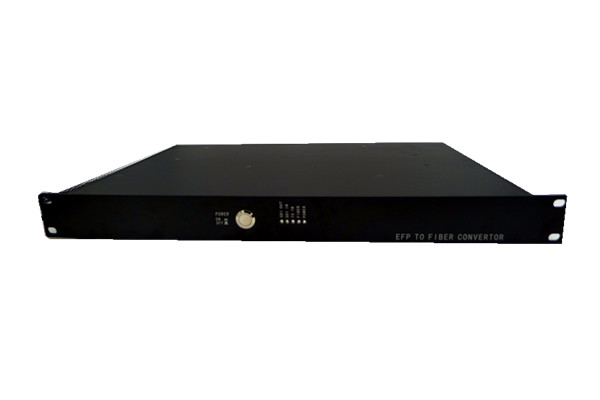

Optic base station image as below:
Optical:
| Wavelength | 1310nm / 1550nm / CWDM |
| Output Power | -6~-1dBm |
| Rx sensitivity | <-18dBm |
| Transmission Distance | SM fiber 10+km , MM fiber 300m |
| Optical connector | Dul ST (optional) |
SDI input/output:
| Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
| Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
| SDI interface | BNC 75 Ohm |
| SDI Channel | 1CH (camera side to base side),1CH(base side to camera side) |
Intercom:
| Camera Optic Adaptor | |
| Interface | 5pin XLR(Female) |
| Microphone | Mic inputs with mute and pre-amps |
| Headphone | with volume up or down |
| Optic Base Station | |
| Interface |
Input:3pin XLR Female , Output: 3pin XLR Male
|
| Audio | Party line |
Tally:
| Camera Optic Adaptor | |
| Interface | 4pin Aviation connector |
| Output | Dry Contact Closure |
|
On: short or +12V Off: open or 0V |
|
| Optic Base Station | |
| Interface | DB9(Male) |
| Input | Dry Contact Closure |
| On: short to GND or TTL low Off: open or TTL high | |
Remote:
| Camera Optic Adaptor | |
| Interface | 8pin sony's remote interface |
| Data | Sony |
| Optic Base Station | |
| Interface | 8pin sony's remote interface |
| Data | Sony |
| Product Name | EFP camera fiber connection system(JM-EFP-S13) |
| Product Model | JM-EFP-S13 |
| SDI Connector | BNC |
| Optical Fiber | Dual ST fibers,Compatible with multimode or single mode fiber |
| Power Supply | AC85-260V/50Hz /DC 12V |
| SDI Format | 1)All inputs and outputs are equalized and re-clocked |
| 2)Immune to pathological patterns over the entire link budget and operating temperature range | |
| 3)SMPTE 424M-2006, 292, 259 and DVB-ASI compliant | |
| 4)Supports embedded audio and data signals | |
| 5)Support SDSDI & HDSDI & 3GSDI, Support 270M & 1.485G & 2.97G SDI Video | |
| Dimension | TX: V-Lock on camera end, RX: 19" 1U rack mount on base end |
| Working Environment | Working Temperature: 0 ℃~+85 ℃; Relative Humidity: 0 ~ 95% (no cold condensation) |
| Warranty | 2 Years warranty |
| Product description | Compliance: 3G, HD, SD compliance, SMPTE 424M, SMPTE 292M, SMPTE 259M |
| 1 x 3G-HDSDI, forward direction (from tx) | |
| 1 x 3G-HDSDI, Reverse direction | |
| 1 x TC,reverse analog signal | |
| 1x intercom( microphone audio and headphone in(from TX),party line | |
| 1xRemote control(Sony) | |
| 2 x Tally (dry contact closure) | |
| Rx Dimension: 480 x 250 x 50 (mm) = 19' standard case | |
| Grosse weight is about 5.8kg, | |
| Extends distance: Single mode 10km / Multi mode 300 meters | |
| Packing in box: Transmitter x1, Receiver x 1, Power wire x 1, Use mannual x 1 |
| Transmitter ( Camera fiber adaptor ) | Receiver ( Base end ) |
| Shape: V-lock | Shape: 1U Rack mount |
| Video: 1x 3G-HDSDI input, 1x 3G-HDSDI output, BNC connector | Video: 1x 3G-HDSDI input, 1x 3G-HDSDI output, BNC connector |
| TC:1x Analog signal,BNC connector | TC:1x Analog signal,BNC connector |
| Intercom: 1x 5 Pin XLR, female,mic level audio input, | Intercom: 2x 3 Pin XLR, Male and Female, party line |
| Tally: 1x 4 Pin Aviation Connector,2xDry contact closure, | Tally:1x DB9 Connector,2x Dry contact closure, |
| Remote: 1x 8 Pin Sony Connector for sony remote | Remote: 1x 8 Pin Sony connector for sony remote |
| Vol Control: Mute, Vol+, Vol-, |
|
| Fiber : 2xST | Fiber : 2xST |
| Power supply: DC12V input | Power supply for base end: 1x AC 90-240V, |
| LED indicator: TC, SDI in, SDI out, PWR,Mic | LED indicator:TC,SDI in,SDI out,Fiber,PWR |

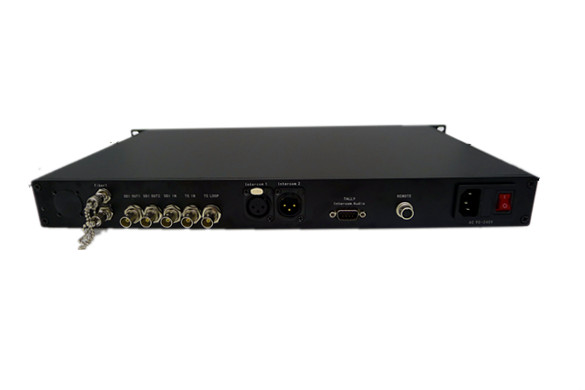

Panel diagram:
Illustration of Led Indicator Status
Adapter:
- MIC: Green light on when MIC is turned on.
- FIBER: Green light on when Fiber2 is connecting, or not green light blink.
- TC OUT: Green light on when the TC OUT port has a signal, or not green light blink.
- SDI IN: Green light on when the SDI IN port input a signal, or not green light blink.
- SDI OUT: Green light on when the SDI OUT port has a signal, or not green light blink.
- PWR: Red light on when power supply is turned on.
Base:
- SDI OUT: Green light on when the SDI OUT port has a signal, or not green light blink.
- SDI IN: Green light on when the SDI IN port input a signal, or not green light blink.
- TC IN: Green light on when the TC IN port input a signal, or not green light blink.
- FIBER: Green light on when Fiber2 is connecting, or not green light blink.
- POWER: Red light on when power supply is turned on.
Fiber1 and Fiber2:
