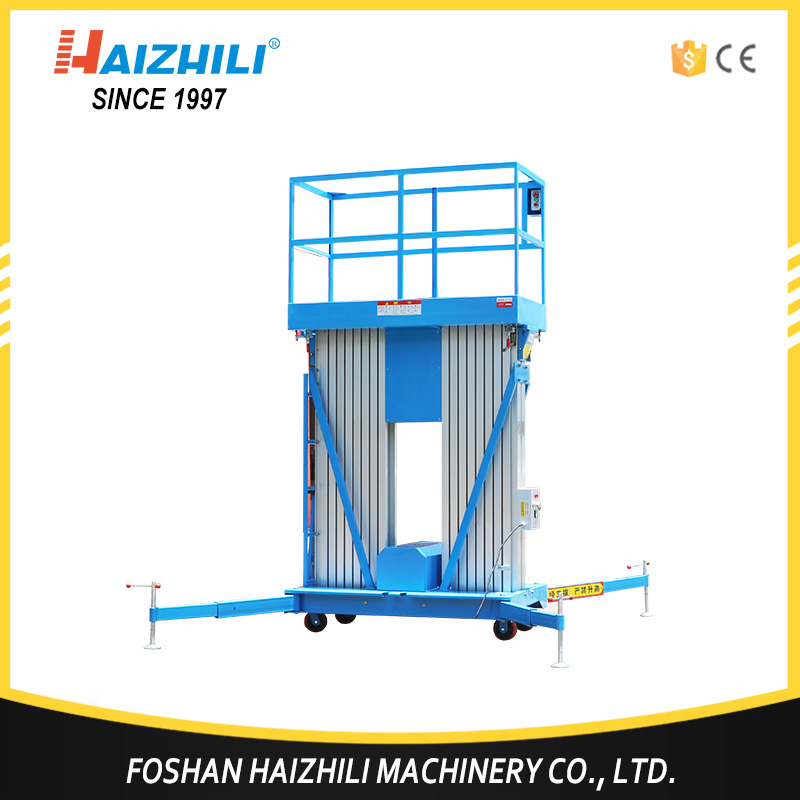

Double Masts Aluminum Alloy Mobile Aerial Work Platform

FOB Price: 2,200.00 - 2,400.00 USD/Set
Supply Ability: 300 Set/Sets per Month
Shipping: within 20 days after receipt of down payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: to be packed in a wooden case

Quick Details

  • Model Number: GTWY -2010S
  • Brand Name: Haizhili
  • Product Name: Aerial Work Platform
  • Material: High-strength aluminium
  • Color: Blue, orange, green etc.
  • Lifting weight: 250kg
  • Max operate height: 11.7m
  • Voltage: 220/24V
  • Mast: Double mast
  • Application: Building,Logistics Centre,dock
  • Lifting Speed: 0.09-0.1m/s
  • Power Supply: AC/DC

Specifications

 Double Masts Aluminum Alloy Mobile Aerial Work Platform


Descriptions
Double Mast Aluminum Aerial Work Platforms has light weight, so people can move it easily. You can not lift the machine if the machine is not in a horizonal statues and the outriggers need to be fully opened.

Feature:
1.Lift or fall steadily: The seamless transmission is used between the lifting masts, thus minimizing the amount of sway after lifting.
2.Safe and reliable: The four turning stabilizers of the unit connected to the four corners of the chassis support the MEWP duringwork.

They are designed for leveling regulation and preventing inclination. They are composed of stand bars and turning legs.

The stand bars are installed in the turning legs.

Extending out the turning legs before operating the unit enlarges the area of supporting. Therefore, the steadiness of the whole platform is guaranteed.
3.Convenient: The whole work platform is light because the lifting masts are made of alloy aluminum.

The structure is compact and the volume is small, so only one person can move the equipment and carry it through a very narrow passage.



Advantages:

1.High-strength aluminium structure

2.Overload protection device

3.Emergency lowering device

4.Anti-fall safety devices

5.Strong safety power supply

Applications:
It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 6m to 12m and lifting capacity varies from 200kg to 250kg.The power sources could be 220V, 380V or chargeable battery.


Specification:

Product name

Model

Maximum Height
(mm)

Maximum Platform Working height(m)

Rated Load
(kg)

Platform Size(m)

Power Supply Voltage(V)

Power
(KW)

Net Weight
(kg)

Dimension(m)

Single mast aluminum alloy lift platform

GTWY-1006

6

7.7

125

0.62x0.62

AC220/50HZ

0.75

280

1.25x0.82x2

GTWY-1008

8

9.7

125

0.62x0.62

AC220/50HZ

0.75

300

1.30x0.82x2

GTWY-1009

9

10.7

100

0.62x0.62

AC220/50HZ

0.75

320

1.30x0.82x2

Double mast aluminum alloy lift platform

GTWY-2006S

6

7.7

300

1.38x0.60

AC220/50HZ

1.5

420

1.45x0.88x1.75

GTWY-2008S

8

9.7

250

1.38x0.60

AC220/50HZ

1.5

560

1.55x0.88x2.05

GTWY-2009S

9

10.7

250

1.38x0.60

AC220/50HZ

1.5

620

1.55x0.88x2.05

GTWY-2010S

10

11.7

250

1.38x0.60

AC220/50HZ

1.5

680

1.55x0.88x2.05

GTWY-2012S

12

13.7

200

1.48x0.60

AC220/50HZ

1.5

700

1.65x0.88x2.05

GTWY-2014S

14

15.7

200

1.58x0.60

AC220/50HZ

1.5

980

1.75x0.88x2.3

Three mast aluminum alloy lift platform

GTWY10-200

10

11.7

200

1.58x0.80

AC220/50HZ

1.5

1000

1.88x1.0x2.05

GTWY12-200

12

13.7

200

1.58x0.80

AC220/50HZ

1.5

1100

1.88x1.1x2.1

GTWY13-200

13

14.7

200

1.58x0.80

AC220/50HZ

1.5

1200

1.88x1.2x2.18

GTWY14-200

14

15.7

200

1.58x0.80

AC220/50HZ

1.5

1300

1.88x1.2x2.48

Four mast aluminum alloy lift platform

GTWY14-400

14

15.7

200

1.58x0.80

AC220/50HZ

2.2

1000

1.88x1.2x2.3

GTWY15-400

15

16.7

200

1.58x0.80

AC220/50HZ

2.2

1200

1.88x1.2x2.55

GTWY16-400

16

17.7

200

1.58x0.80

AC220/50HZ

2.2

1300

1.88x1.2x2.65

Six mast aluminum alloy lift platform

GTWY16-160

16

17.7

150

1.58x0.88

AC220/50HZ

1.5/2.2

1400

2.26x1.2x2.1

GTWY18-160

18

19.7

150

1.58x0.88

AC220/50HZ

1.5/2.2

1500

2.26x1.4x2.3

GTWY20-160

20

21.7

150

1.58x0.88

AC220/50HZ

1.5/2.2

1780

2.26x1.4x2.4

GTWY21-160

21

22.7

150

1.58x0.88

AC220/50HZ

1.5/2.2

1880

2.26x1.4x2.6


We are one of leading auluminum lift platform manufactory in China since 1997, and we are willing to establish long term business relationship with you. We do not want one time business, so we take more attention on the quality. GOOD QUALITY+ GOOD PRICE=LONG TIME BUSINESS. Believe us, and trust us. Haizhili will be your best partner. Please contact Rebecca for more detail and discounts.
