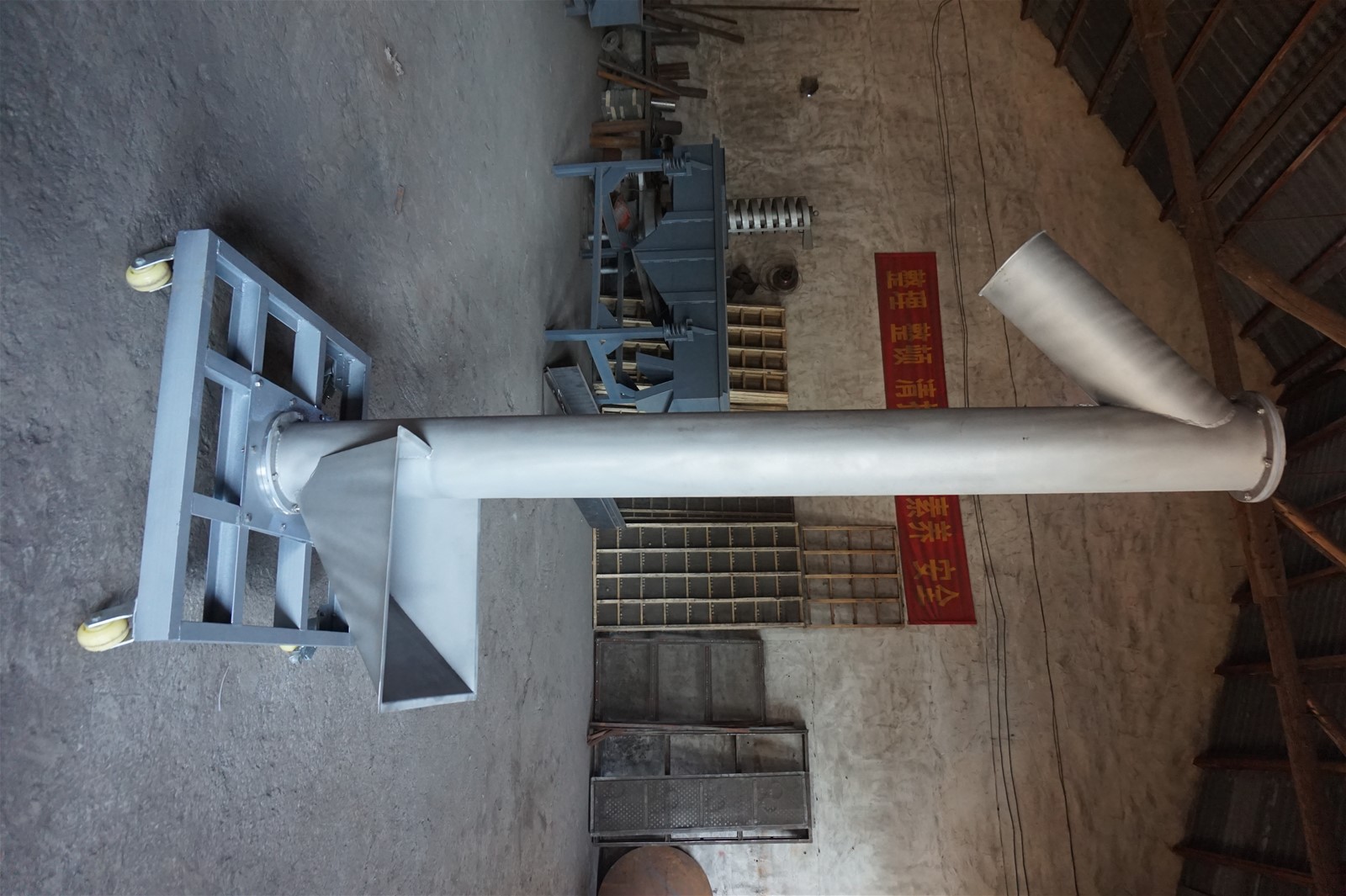

xinxaing dahan vertical or horizontal screw auger conveyor

FOB Price:	1,100.00 - 1,800.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	shanghai
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, Cash

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden case or request

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001:2008
Dimension(L*W*H): 2000*219*500
Power(W): 0.35kw
Voltage: 380
Model Number: LS
Brand Name: Dahan
Load Capacity: 15 cubic meter
Structure: Conveyor System
Material Feature: Heat Resistant
Material: Stainless Steel
Type: Screw Conveyor
Condition: New
width: 219mm
length: 2m
motor: 3-4kw
reducer: 2
capacity: 15 cubic meter
customized: accept

Specifications

Introduction

From the perspective of the screw conveyor conveying the material displacement direction of the division, the screw conveyor is divided into horizontal and vertical screw conveyor screw conveyor are two types.

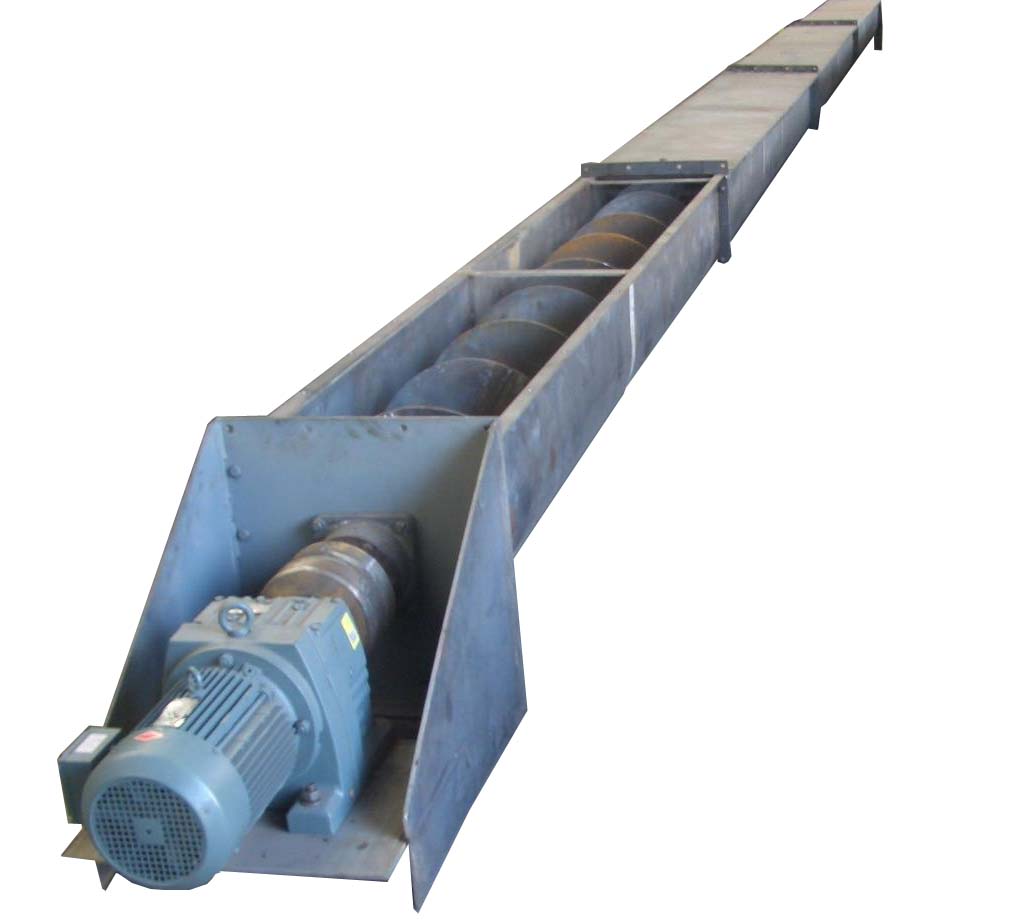

Screw conveyor works

When the screw shaft is rotated due to the frictional force of gravity and the tank wall material produced, so that the material can only move forward along the conveyor at the bottom of the blade push, it seems the situation can not rotate the nut along a rotating screw translational movement of the same. Bearing material in the middle of migration, it is relying on the forward thrust behind the material.

So, the material in conveyor transport, is a completely slipping. In order to make the screw shaft in a relatively favorable tensile state, generally the drive means and a discharge outlet disposed at the same end of the conveyor and the feed inlet as possible on the other side near the tail. Rotating helical blade passage of the material is conveyed, so that the material does not screw conveyor blades rotate together force is the material of its own weight and screw conveyor enclosure material friction.

Depending on the type of blade surface material transport entities face, tape face, the blade surface type and other types. Terminal screw conveyor screw axis in the direction of movement of materials with a thrust bearing to the spiral of material to the axial reaction force, the captain long, should be added intermediate hanger bearings.

Applications

Screw machine is widely used in various industries, such as building materials, chemicals, power, metallurgy, coal carbon, food and other industries, for horizontal or inclined conveying powder, granular and small bulk materials such as coal, ash, slag, cement, food and so on, the material temperature is less than 200 ℃. Screw machine suitable for transporting perishable viscous, easy caking materials. Concrete mixing station, the role of the screw conveyor has been the greatest expression.

If you are interested in our products,please contact me.
