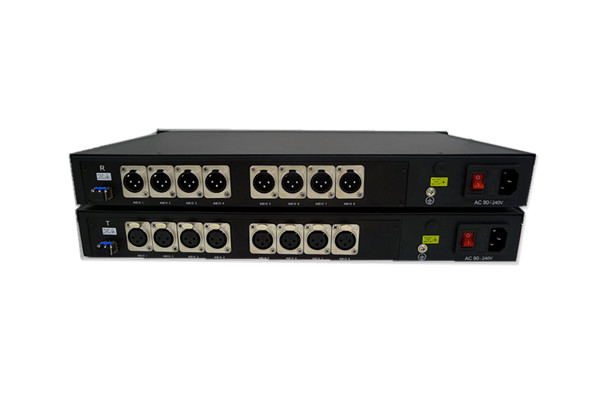

8CH fiber optic audio to XLR balanced converter for 8CH unidirectional balanced audio over fiber
| FOB Price: | 455.00 - 600.00 USD/Pair |
|---|---|
| Supply Ability: | 10,000 Pair per Month |
| Shipping: | 8~14 working days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 2x power cables,1 optic transmitter,1 optic receiver,1User's Manual |
Quick Details
- Power Adapter:: AC 90V~240V
- Installation: 19 inch 1U rack-mount chassis
- Shipping Weight:: 7KG/pair(including Transmitter+Receiver)
- Operating Temperature:: -20C ~ +75C
- Wavelength: 1310nm&1470nm~1610nm
- fiber: 50/125u multimode,62.5/125u multimode,9/125u single mode
Specifications
8CH fiber optic audio to XLR balanced converter supports 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.
Specifications
Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -9~ -3dBm / -5~0dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -25dBm |
| Optical connector | FC,ST,SC ,LC(optional) |
| Distance | 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) |
Balanced Audio
| Number of Channels | 8 |
| Input Connector | XLR(female) |
| Output Connector | XLR(male) |
| Input / Output Impedance | 10K Ohm |
| Input capacitance LINE inputs | 10 pF |
| Max input/output voltage | 3.0Vp-p |
| Frequency Response | 10 Hz～24kHz @±3dB |
| Sample Rates From | 48kHz |
| SNR | > 80dB |
Electrical & Mechanical
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 8W |
| Installation | 19'' 1U rack-mount chassis |
| Shipping Weight: | (include Transmitter & Receiver ) 7kg |
Environmental
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
8CH fiber optic audio to XLR balanced converter Audio connection diagram
Dimension:
