Glsun Science & Tech Group Co., Ltd.
China Manufacturer with main products: Optical Switch, Optical Isolator, CWDM/DWDM, Splitter, EDFA, MEMS VOA, Optical Circulator, OTDR |

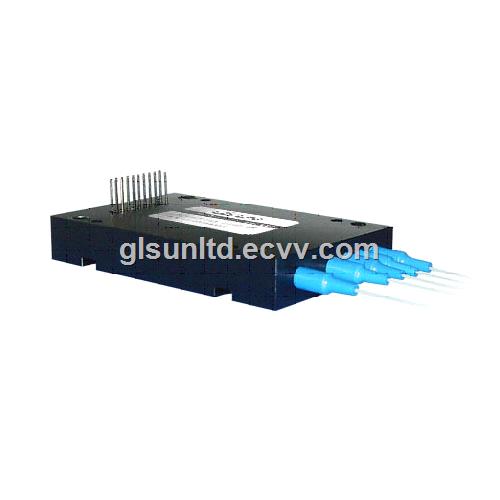

1x16 Optical Fiber Switch
| FOB Price: | 1.00 - 5,000.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | within 7~30 working days, Guangzhou/Shenzhen |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | by carton box |
Quick Details
- Model Number: SUN-FSW-1x16
- Brand Name: GLSUN
- Wavelength Range: 850+/-40 / 1300+/-40; 1260 ~ 1650
- Test Wavelength: 850 / 1300; 1310 / 1550
- Insertion Loss: Typ: 2.8 Max: 3.2
- Return Loss: MM more than 30; SM more than 50
- Crosstalk: MM more than 35; SM more than 55
- PDL: less than 0.15
- WDL: less than 0.35
- Repeatability: less than +/- 0.05
- Power Supply: 5V +/- 5%
- Switching Time: less than 8ms
Specifications
INTRODUCTION:
|
1×16 Optical Switch - Features |
|
|
?Wide Wavelength Range ?Low Crosstalk ?High Stability, High Reliability ?Epoxy-free on Optical Path |
|
|
1×16 Optical Switch - Applications |
|
|
?R&D in Laboratory ?System Monitoring ?OADM ?OXC |
|
|
SUN-FSW-1×16 Optical Switch is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system. |
|
|
1×16 Optical Switch - Specifications |
|
|
Parameters |
Unit |
SUN-FSW-1×16 |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss |
dB |
Typ: 2.8 Max: 3.2 |
|
|
Return Loss |
dB |
MM ≥ 30 SM ≥ 50 |
|
|
Crosstalk |
dB |
MM ≥ 35 SM ≥ 55 |
|
|
PDL |
dB |
≤ 0.15 |
|
|
WDL |
dB |
≤ 0.35 |
|
|
Repeatability |
dB |
≤ ±0.05 |
|
|
Power Supply |
V |
5.0 ± 5% |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)110×(W)179×(H)16 ±0.2 |
|
|
1×16 Optical Switch - Pin Configurations |
|
Pin No. |
Signal Name |
I / O |
Description |
|
1 |
D0 |
Input |
TTL, Channel selection bit 0 |
|
2 |
D1 |
Input |
TTL, Channel selection bit 1 |
|
3 |
D2 |
Input |
TTL, Channel selection bit 2 |
|
4 |
D3 |
Input |
TTL, Channel selection bit 3 |
|
5 |
/EN |
Input |
Channel Selection Enabled. |
|
6 |
NA |
|
|
|
7 |
VCC |
Input |
5.0±5% VDC Power Supply (max 750mA). |
|
8 |
GND |
Input |
Ground |
|
9 |
NA |
|
|
|
10 |
NA |
|
|
|
11 |
NA |
|
|
|
12 |
NA |
|
|
|
13 |
S0 |
Output |
TTL, Switch status output bit 0 |
|
14 |
S1 |
Output |
TTL, Switch status output bit 1 |
|
15 |
S2 |
Output |
TTL, Switch status output bit 2 |
|
16 |
S3 |
Output |
TTL, Switch status output bit 3 |
|
17 |
NA |
|
|
|
18 |
NA |
|
|
|
19 |
NA |
|
|
|
20 |
NA |
|
|
|
1×16 Optical Switch - Switch Status |
|
Input |
Active Channel |
Output |
|||||||
|
/EN |
D3 |
D2 |
D1 |
D0 |
S3 |
S2 |
S1 |
S0 |
|
|
0 |
0 |
0 |
0 |
0 |
COM → 1 |
0 |
0 |
0 |
0 |
|
0 |
0 |
0 |
1 |
COM → 2 |
0 |
0 |
0 |
1 |
|
|
0 |
0 |
1 |
0 |
COM → 3 |
0 |
0 |
1 |
0 |
|
|
0 |
0 |
1 |
1 |
COM → 4 |
0 |
0 |
1 |
1 |
|
|
0 |
1 |
0 |
0 |
COM → 5 |
0 |
1 |
0 |
0 |
|
|
0 |
1 |
0 |
1 |
COM → 6 |
0 |
1 |
0 |
1 |
|
|
0 |
1 |
1 |
0 |
COM → 7 |
0 |
1 |
1 |
0 |
|
|
0 |
1 |
1 |
1 |
COM → 8 |
0 |
1 |
1 |
1 |
|
|
1 |
0 |
0 |
0 |
COM → 9 |
1 |
0 |
0 |
0 |
|
|
1 |
0 |
0 |
1 |
COM → 10 |
1 |
0 |
0 |
1 |
|
|
1 |
0 |
1 |
0 |
COM → 11 |
1 |
0 |
1 |
0 |
|
|
1 |
0 |
1 |
1 |
COM → 12 |
1 |
0 |
1 |
1 |
|
|
1 |
1 |
0 |
0 |
COM → 13 |
1 |
1 |
0 |
0 |
|
|
1 |
1 |
0 |
1 |
COM → 14 |
1 |
1 |
0 |
1 |
|
|
1 |
1 |
1 |
0 |
COM → 15 |
1 |
1 |
1 |
0 |
|
|
1 |
1 |
1 |
1 |
COM → 16 |
1 |
1 |
1 |
1 |
|
|
1 |
x |
x |
x |
x |
Hold |
Hold |
Hold |
Hold |
Hold |
|
1×16 Optical Switch - Optical Route
|
|
1×16 Optical Switch - Timing Diagram
|
|
1×16 Optical Switch - Dimension |
|
|
|
1×16 Optical Switch - Ordering Information: SUN-FSW-1×16-A-B-C-D-E-F |
|
A |
B |
C |
D |
E |
F |
|
Fiber Type |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length |
Connector |
|
SM: SM, 9/125 |
L: Latching |
850: 850nm |
90:900um |
05: 0.5m±5cm |
OO:None |
