Boonai(Suzhou) Lifting Equipment Co., Ltd.
China Manufacturer with main products: Mast Aerial Work Platform, Scissor Lift, Fixed Lift Table, Car Lift, Material Picker |

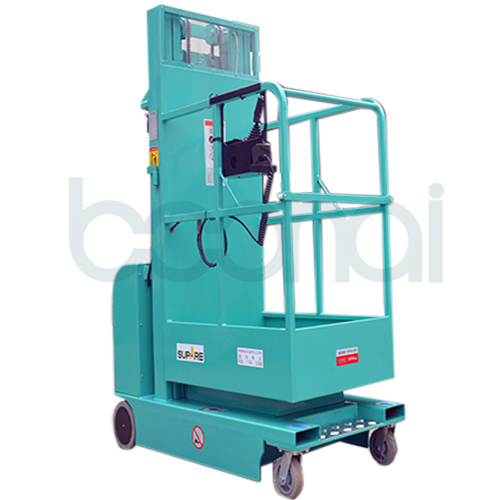

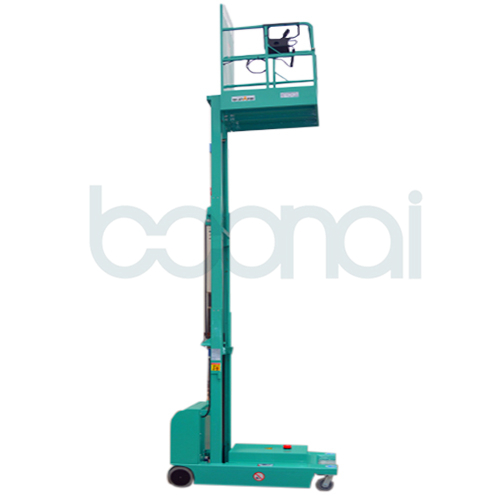

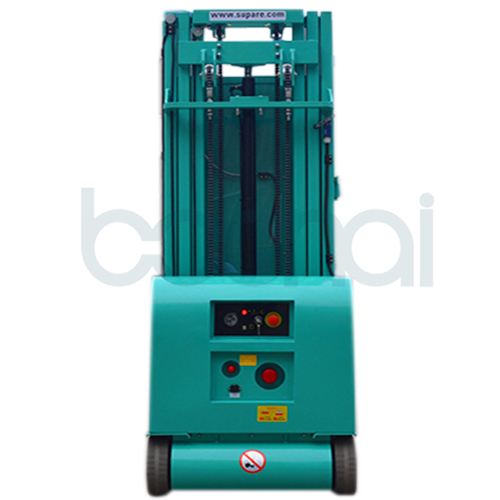

4.5m Self-Propelled Aerial Order Picker (Triple Masts)
| FOB Price: | 5,424.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Wooden Pallet |
Quick Details
- Model Number: ZDYT3-4.5T
- Brand Name: Boonai
Specifications
Self-propelled Aerial Stock Picker(Triple Masts)
1.Upper / lower control mode
2.Emergency lowering device
3.Double contactors and double limit switches
4.Self-propelled device is equipped
5.Emergency stop button
6.Turning wheel with brake
7.DC 24V control
Parameters
| Model | ZDYT3-3.5T | ZDYT3-4.0T | ZDYT3-4.5T |
| Safe Working Load(kg) | 300 | 300 | 300 |
| Number of passengers | 1 | 1 | 1 |
| Max working height (m) | 5.50 | 6.00 | 6.50 |
| Max height of platform (m) | 3.50 | 4.00 | 4.50 |
| Overall length(m) | 1.56 | 1.56 | 1.56 |
| Overall width (m) | 0.76 | 0.76 | 0.76 |
| Overall length(m) | 1.66 | 1.83 | 1.99 |
| Platform size (m) | 0.95*0.70 | 0.95*0.70 | 0.95*0.70 |
| Min ground clearance (m) | 0.04 | 0.04 | 0.04 |
| Wheel base (m) | 1.23 | 1.23 | 1.23 |
| Driving motor(VDC/kw) | 2*24/0.4 | 2*24/0.4 | 2*24/0.4 |
| Lifting motor (VDC/kw) | 24/1.5 | 24/1.5 | 24/1.5 |
| Travel Speed |
|
|
|
| Travel speed(stowed)(m/h) | 4 | 4 | 4 |
| Travel speed(raised)(km/h) | 0.7 | 0.7 | 0.7 |
| Up/down speed(sec) | 20/18 | 22/19 | 24/21 |
| Accumulator (V/Ah) | 2*12/120 | 2*12/120 | 2*12/120 |
| Charger (V/A) | 24/10 | 24/10 | 24/10 |
| Grade ability | 25% | 25% | 25% |
| Max working slope | 1.5° | 1.5° | 1.5° |
| Tire |
|
|
|
| Front tire (in) | 230*80 | 230*80 | 230*80 |
| Rear tire (in) | 6 | 6 | 6 |
| Overall weight (kg) | 642 | 662 | 682 |
