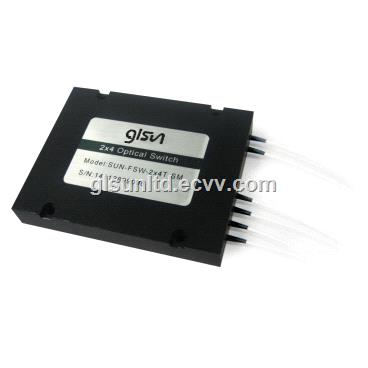

2x4 Fiber Optical Switch
| FOB Price: | 1.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | Within 7~30 working days, Guangzhou/Shenzhen |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | by carton box |
Quick Details
- Model Number: SUN-FSW-2x4
- Brand Name: GLSUN
- Wavelength Range: 850+/-40 / 1300+/-40; 1260 ~ 1650
- Test Wavelength: 850 / 1300;1310 / 1550
- Insertion Loss: Typ: 1.5 Max: 1.8
- Return Loss: MM more than 30; SM more than 50
Specifications
INTRODUCTION:
2×4 Optical Switch-Features
·Wide Wavelength Range
·Low Crosstalk
·High Stability, High Reliability
·Epoxy-free on Optical Path
2×4 Optical Switch-Applications
·R&D in Laboratory
·System Monitoring
·OADM
·OXC
SUN-FSW-2×4 Optical Switch is an ideal component for OADM, OXC, system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
2×4 Optical Switch-Specifications
|
Parameters |
Unit |
SUN-FSW-2×4 |
|
|
Wavelength Range |
nm |
850±40 / 1300±40 |
1260 ~ 1650 |
|
Test Wavelength |
nm |
850 / 1300 |
1310 / 1550 |
|
Insertion Loss |
dB |
Typ: 1.5 Max: 1.8 |
|
|
Return Loss |
dB |
MM ≥ 30 SM ≥ 50 |
|
|
Crosstalk |
dB |
MM ≥ 35 SM ≥ 55 |
|
|
PDL |
dB |
≤ 0.15 |
|
|
WDL |
dB |
≤ 0.35 |
|
|
Repeatability |
dB |
≤ ±0.05 |
|
|
Power Supply |
V |
5.0 ± 5% |
|
|
Durability |
Cycles |
≥ 10 Million |
|
|
Switching Time |
ms |
≤8 |
|
|
Optical Power |
mW |
≤500 |
|
|
Operating Temperature |
℃ |
-5 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)95×(W)76×(H)14 ±0.2 |
|
Pin No.
Signal Name
I / O
Description
1
1D0
Input
TTL, COM 1 Channel selection bit 0
2
1D1
Input
TTL, COM 1 Channel selection bit 1
3
2D0
Input
TTL, COM 2 Channel selection bit 0
4
2D1
Input
TTL, COM 2 Channel selection bit 1
5
/EN
Input
Channel Selection Enabled.
6
RST
Input
Reset
7
VCC
Input
5.0±5% VDC Power Supply (max 200mA).
8
GND
Input
Ground
9
NA
10
NA
11
NA
12
NA
13
1S0
Output
TTL, COM 1 Switch status output bit 0
14
1S1
Output
TTL, COM 1 Switch status output bit 1
15
2S0
Output
TTL, COM 2 Switch status output bit 0
16
2S1
Output
TTL, COM 2 Switch status output bit 1
17
NA
18
NA
19
NA
20
NA
2×4 Optical Switch-Pin Configurations
2×4 Optical Switch-Switch Status
