UL2651 AWG28 Flat Ribbon Cable Rated 105C 300V

FOB Price: 0.02 - 0.12 USD/Meter
Supply Ability: 400,000 Meter/Meters per Month
Shipping: 10 days for ready goods
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: 305 meters or 152.5 meters per reel

Quick Details

  • Insulation Material: PVC
  • Jacket: PVC
  • Conductor Material: Copper
  • Shielding: Non-Shielded
  • Model Number: WCH-UL2651
  • Brand Name: WCH CABLE
  • UL Style Number: UL2651
  • Type: Flat Ribbon
  • RoHS Compliant: Yes
  • CSA Approval: Yes
  • Reach Compliant: Yes
  • Conductor Gauge: 28AWG

Specifications

UL2651 AWG28 Flat Ribbon Cable Rated 105C 300V

99.99% High Purity Copper Conductors
105 deg C, 300 Vac, Horizontal flame.
36 AWG - 14 AWG, solid or stranded.
Uniform insulation thickness for easy process treatment.
Appliance Wiring Material UL 758.
Internal wiring of Electronic equipment.

UL Style & CSA Type Pin Quantity Conductor Pitch
Insulation
Thickness
Overall Diameter
Conductor
Resistance
AWG mm mm mm mm Ω/KM
UL2651
(Stranded)
9 28 7/0.127 1.27 0.23 0.9×11.43 239.00
10 28 7/0.127 1.27 0.23 0.9×20.32 239.00
14 28 7/0.127 1.27 0.23 0.9×12.70 239.00
15 28 7/0.127 1.27 0.23 0.9×17.78 239.00
16 28 7/0.127 1.27 0.23 0.9×19.05 239.00
20 28 7/0.127 1.27 0.23 0.9×25.40 239.00
25 28 7/0.127 1.27 0.23 0.9×31.75 239.00
26 28 7/0.127 1.27 0.23 0.9×33.02 239.00
30 28 7/0.127 1.27 0.23 0.9×38.10 239.00
34 28 7/0.127 1.27 0.23 0.9×43.18 239.00
36 28 7/0.127 1.27 0.23 0.9×45.72 239.00
40 28 7/0.127 1.27 0.23 0.9×50.80 239.00
50 28 7/0.127 1.27 0.23 0.9×63.50 239.00
60 28 7/0.127 1.27 0.23 0.9×76.20 239.00

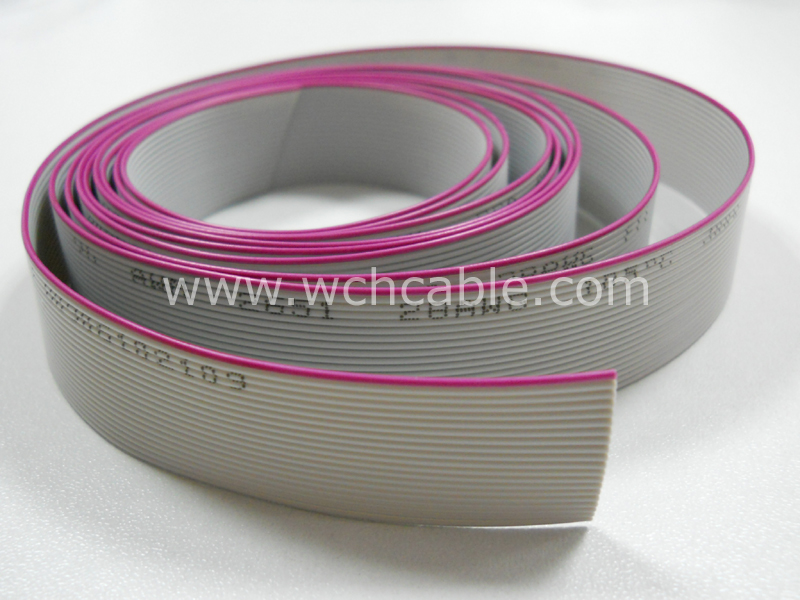

UL2651 AWG28 Flat Ribbon Cable Rated 105C 300V

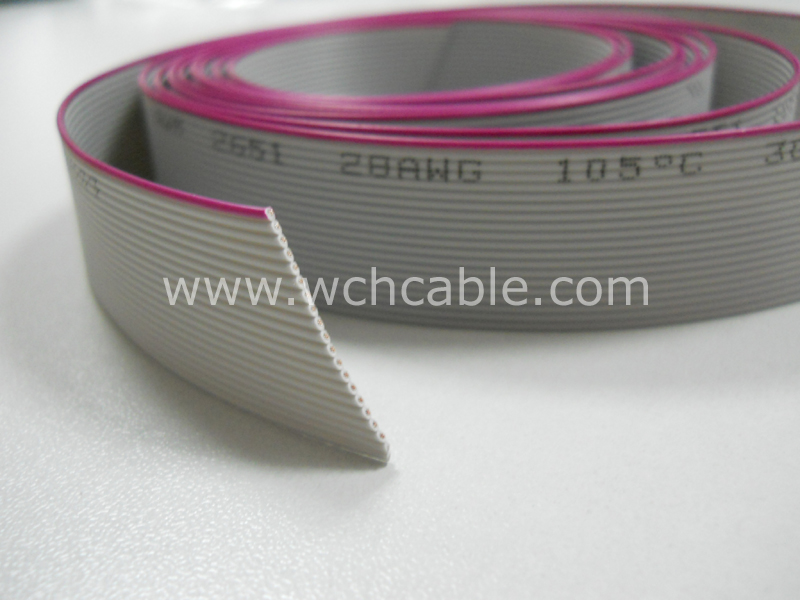

UL2651 AWG28 Flat Ribbon Cable Rated 105C 300V
