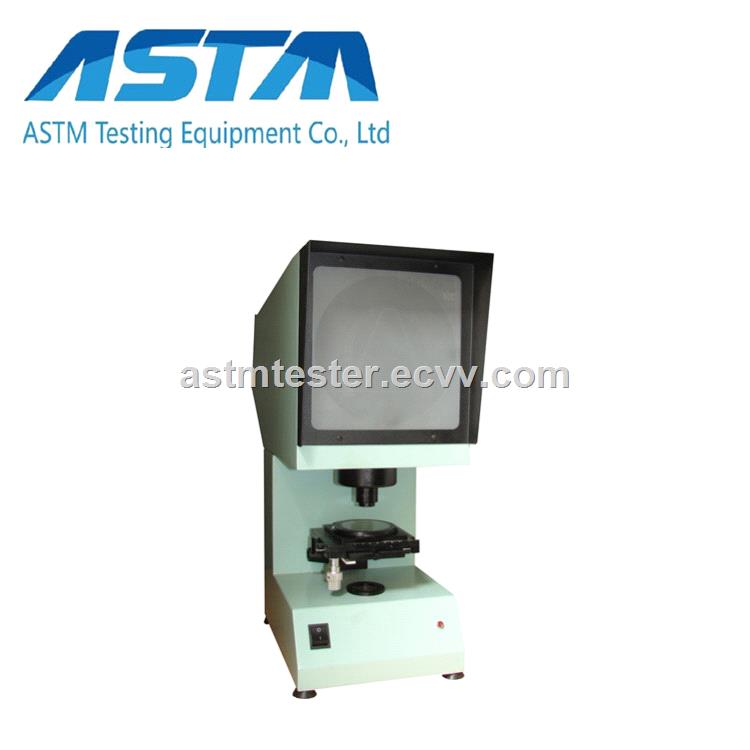

CST-50 Charpy Impact Specimen Gap Projector
| FOB Price: | 1,500.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Month |
| Shipping: | 15 working days for ready goods by Qingdao Port |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Packed by Plywood package per set |
Quick Details
- Usage: Impact Testing Machine
- Power: Electronic
- Brand Name: ASTM
- Warranty: 12 months
- weight: 20kg
- Model Number: CST-50
- Usage: Impact Testing Machine
- Power: Electronic
Specifications
Usage and Characteristics
CST-50 Type Impact Specimen Gap Projector,Based on the practical requirement of the Domestic
Customers and according to the demand of impact specimen gap in GB/T229-2007<Metallic materials-Charpy notch impact test>, It is the special equipment which checks the Charpy V type and U -
Type gaps. the instrument magnifies Impact specimen gap's outline and projects it
onto screen to compare with standard sample Drawing of the impact specimen V-type or U-type gaps.
this helps to examine whether the tested impact specimen gap is qualified or not. It can meet the
ASTM E23,EN 10045,ISO 148,ISO 83 and other international standards.
Main technical parameters
Diameter of the Screen: 200mm
Size of worktable Size of square worktable: 110*125mm
Diameter of round worktable: 90mm
Diameter of working screen: 70mm
Journey of worktable Longitude: ±10mm
Latitude: ±10mm
Rise and fall: ±12mm
Scope of Revolving of the worktable: 0° ~ 360°
Magnification of the instrument: 50X
Magnification of the object lens: 2.5X
Magnification of the objective lens for projection: 20X
Illuminant (Tungsten-halogen lamp): 12V 100W
Outline size: 515*224*603mm
Weight: 18Kg
Supply power: 220V 50Hz
