Guangzhou Jeweil Industrial Packaging Machinery Co., Ltd.
China Manufacturer with main products: Aluminum-Plastic Laminated Tubes, Aluminum Tubes, Plastic Tubes, Tube Filling and Sealing Machine, Tube Making Machine, Toothpaste Making... |

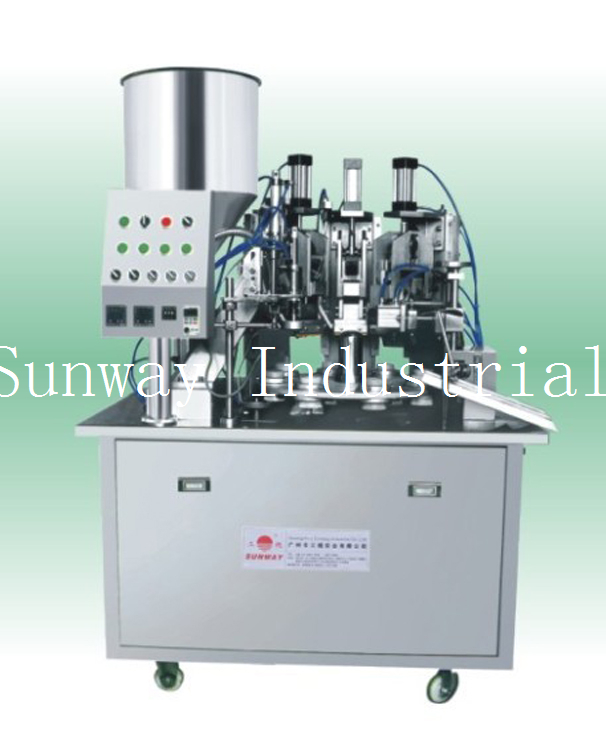

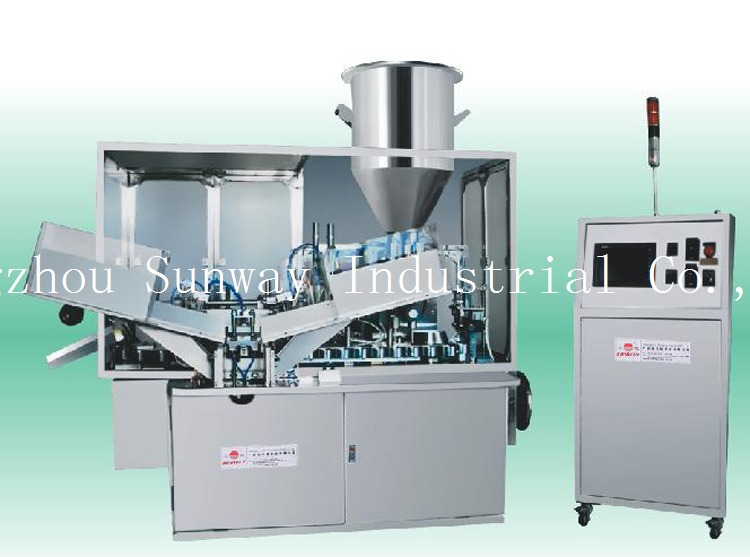

Laminated Tube PE Tube Filling and Sealing Machine for Cosmetic Toothpaste
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | Guangzhou,Shenzhen |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | packaging: wooden case |
Quick Details
- Type: Filling Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO
- Weight: 1300KG
- Dimension(L*W*H): 2320*1120*2190mm
- Model Number: B.GF-80
- Brand Name: SUNWAY
- Power: 9KW
- Voltage: 380/220v
- Driven Type: Electric
- Automatic Grade: Automatic
- Packaging Material: Plastic
- Packaging Type: tubes
- Application: Food,Medical,cosmetic, toothpaste
- Condition: New
- applicable for: plastic tubes,laminated tubes
- heating type: inner heating
- filling nozzle: 2
Specifications
Product Description
The series of machines are widely used for filling, sealing and batch No. printing of products packaged by aluminum-plastic and full plastic tubes in cosmetics, toothpastes, medical ointments, food, shoe polishes, adhesives,etc. According to customer requuirements, the series of machines can realizer dual-use filling of liquid and ointment materials through special design and special filling device. The series of machines can be used independently and can also form a production flow line with other equipments such as the automatic packaging machine and etc.
Type
80-1 80-3 80- 4
80- 5
Power Supply
380V(220)/50Hz
380V(220)/50Hz
Power
outer heating 5.5kw
inner heating 9kw
6kw
Metering precision
±1.5%
±1%
Filling at one time
2 pcs
2 pcs
Mex. production capacity
60-80 pcs/min
45-80 pcs/min
Tube Size
φ19-φ35mm
φ30-φ50mm
Dimension(L*W*H)
2320*1120*2190mm
2670*1300*2190mm
Weight
1300kg
1800kg
Filling Volume
10-180ml
10-200ml
Features
1. The main driving adopts full mechanical structure with stable running, low noise, and convenient operation and maintenance
2. Equipment with automatic tube dropping box, automatic tube feeding, automatic color code aligning, automatic tube discharging
3. Menchanical adjusted filling volume, no fillling in case od no tube, double-head filling, PLC control, electrical buttons operation
4. Wire drawing preventing or leakage preventing filling head, (optional)
5. Storage barrel liquid level control and alarming system, automatic feeding,(optional)
6. Provided with mixing storage barrel, (optional)
7. Provided with heating storage barrel, (optiinal)
The B.GF-80-1 model adopts the outer heaint form, especiall suitable for sealing aluminum-plastic composite tubes with strong adaptability and convenient change of different specifications.
The B.GF-80-3 model adopts the inner heating form, especially suitable for sealing full-plastic packaging tubes with hot air heating from tube inner wall, no damege to tube surface tissues, beautiful sealing.
The B.GF-80-4 model adopts the inner heaing form with irregular shape sealing. All heating parts, clamping parts and sealing parts adopt the irregular shape device with precise positioning and carious sealing shapes. It is especially suitable for sealing full-plastic packaging tubes.
The B.GF-80-5 model is suitable for filling and sealing tubes with tube tube diameter above φ40mm. Inner or outer heating from can be adopted according to customer requirements.
