Guangzhou Top Power Electronics Technology Co., Ltd.
China Manufacturer with main products: DC-DC Converter, Power Supply, DC-DC Power Module, AC-DC Power Module, AC-DC Converter, Power Supplies, Power Module, Converter Modules |
Home
>Products Catalog > DC/DC CONVERTERS > 1W Isolated Wide Input Single And Dual Output DC/DC Converters
1W Isolated Wide Input Single And Dual Output DC/DC Converters
| FOB Price: | 4.90 - 5.50 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Quarter |
| Shipping: | DHL/UPS/FEDEX/TNT |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 30pcs/ tubes |
Quick Details
- Output Current: ma
- Output Frequency: 80
- Output Voltage: vdc
- Input Voltage: vdc
- Output Type: Dual
- Model Number: TP2L-1W
- Brand Name: TOPPOWER
- type: DC/DC converter
- power: 1w
Specifications

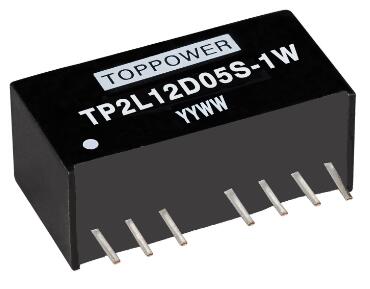

TP2L-1W series are a range of isolated 1 Watt converters in a SIP package, 2:1 wide input range and tightly regulated output voltage qualifies these converters for many cost critical applications in industrial and consumer electronics. Operating temperature ranges from -40 oC to 85 oC the Internal SMD construction makes it possible to offer a product with high performance at low cost.
Part Number
Input
Output
Voltage(VDC)
Voltage
(VDC)
Nominal
Range
Max*
TP2L05D05S-1W
5 (2:1)
4.5-9.0
11
±5
TP2L05D09S-1W
5 (2:1)
4.5-9.0
11
±9
TP2L05D12S-1W
5 (2:1)
4.5-9.0
11
±12
TP2L05D15S-1W
5 (2:1)
4.5-9.0
11
±15
TP2L05S05S-1W
5 (2:1)
4.5-9.0
11
5
TP2L05S09S-1W
5 (2:1)
4.5-9.0
11
9
TP2L05S12S-1W
5 (2:1)
4.5-9.0
11
12
TP2L05S15S-1W
5 (2:1)
4.5-9.0
11
15
TP2L05S24S-1W
5 (2:1)
4.5-9.0
11
24
TP2L12D05S-1W
12 (2:1)
9.0-18
22
±5
TP2L12D09S-1W
12 (2:1)
9.0-18
22
±9
TP2L12D12S-1W
12 (2:1)
9.0-18
22
±12
TP2L12D15S-1W
12 (2:1)
9.0-18
22
±15
TP2L12D24S-1W
12 (2:1)
9.0-18
22
±24
TP2L12S03S-1W
12 (2:1)
9.0-18
22
3.3
TP2L12S05S-1W
12 (2:1)
9.0-18
22
5
TP2L12S09S-1W
12 (2:1)
9.0-18
22
9
TP2L12S12S-1W
12 (2:1)
9.0-18
22
12
TP2L12S15S-1W
12 (2:1)
9.0-18
22
15
TP2L12S24S-1W
12 (2:1)
9.0-18
22
24
TP2L24D05S-1W
24 (2:1)
18-36
40
±5
TP2L24D09S-1W
24 (2:1)
18-36
40
±9
TP2L24D12S-1W
24 (2:1)
18-36
40
±12
TP2L24D15S-1W
24 (2:1)
18-36
40
±15
TP2L24S03S-1W
24 (2:1)
18-36
40
3.3
TP2L24S05S-1W
24 (2:1)
18-36
40
5
TP2L24S09S-1W
24 (2:1)
18-36
40
9
TP2L24S12S-1W
24 (2:1)
18-36
40
12
TP2L24S15S-1W
24 (2:1)
18-36
40
15
TP2L24S24S-1W
24 (2:1)
18-36
40
24
TP2L48D05S-1W
48 (2:1)
36-72
80
±5
TP2L48D12S-1W
48 (2:1)
36-72
80
±12
TP2L48D15S-1W
48 (2:1)
36-72
80
±15
TP2L48S05S-1W
48 (2:1)
36-72
80
5
TP2L48S09S-1W
48 (2:1)
36-72
80
9
TP2L48S12S-1W
48 (2:1)
36-72
80
12
TP2L48S15S-1W
48 (2:1)
36-72
80
15
