Shandong Boyoun Heavy Industries Co., Ltd.
China Manufacturer with main products: Precast Segment Formwork, Cantilever Form Traveler, Precast Girder Formwork |
Box girder Mould, segment box girder mould, box beam mould
| FOB Price: | 1,500.00 - 2,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Payment Terms: | L/C |
Related products from verified members
| Export Markets: | South America, Mid East |
|---|
Quick Details
- Product Material: Steel
- Brand Name: Boyoun
Specifications

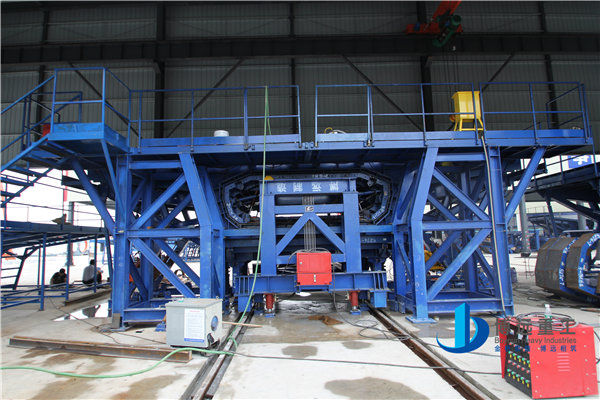

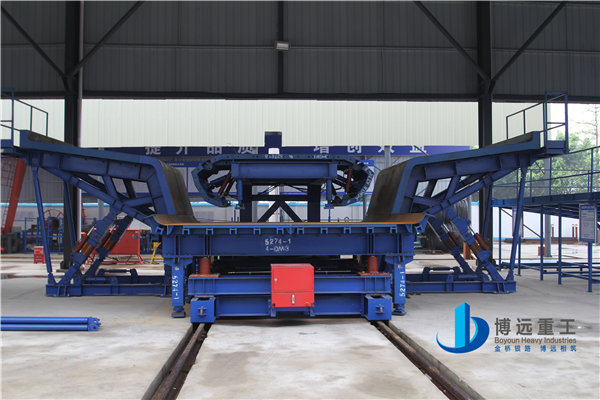

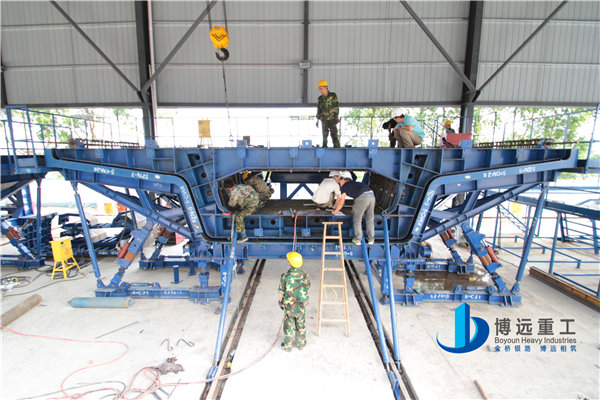

Precast girder formwork has advantages of high-precision, simple structure,retractile,easy-demoulding and simple operation. It can be hoisted or dragged to casting site integrally, and demoulded integrally or piecemeal after concrete achieving the strength, then pull out the inner mould from the girder. It is handy installing and debugging, low labor intensity, and high efficient.
Design technique of precasting girder mould
The mould is integrated designed and stress analyzed in concordance with the girder structure,girder span and arrangement of the casting site.The demoulding mechanism is designed by simulating the trajectory of the inner mould.
The girder's integrally or piecemeal pulling out of mould after precasting is ensured by inner mould structure, connectors, inner mould support system, hydraulic system, demoulding mechanism,guideway system and the segmental design of inner mould.
The design of outer mould structure, way of locomotion, support system of outer mould,pathway of temper mill, disposal of oscillator,stair and rail.
Transport scheme should be considered when design the inner and outer mould segmentation. The applicability of the mould to different girder span .
The material selection: 12mm steel plate for bottom mould and end mould;8mm steel plate for lateral mould and inner mould.
