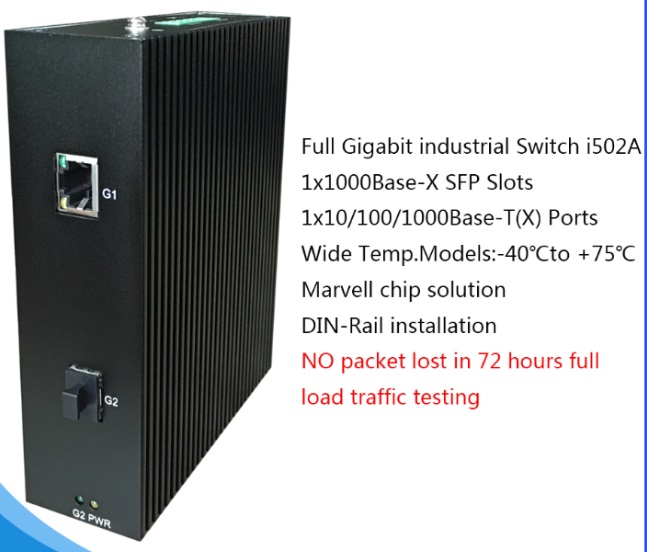

2 Ports Full Gigabit Unmanaged Industrial Ethernet Switch I502A
| FOB Price: | 1.00 - 79.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | 2 weeks after payment |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 700g/pcs, 40pcs/ctn |
Quick Details
- Model Number: i502A
- Brand Name: InMax
- Communication Mode: Full-Duplex & Half-Duplex
- Transmission Rate: 10/100/1000Mbps
- Ports: 2
- Products Status: Stock
Specifications
Features and Benefits
1. with 1×10/100/1000BaseT(X) port, and 1×1000BaseX SFP slot
2. Redundant dual 12/24/48 VDC power inputs,
Built-in over-current protection, Reverse Connection protection
3. -40 to 75℃Operating temperature range (WT Models)
4. No fan, low consumption, industrial design standard,
Industrial grade electronic components,
Environmental protection & lead-free production
5. Hard aluminum alloy case (Not sheet metal), DIN-rail and wall Mounting
6. IP Rating up to IP40
7.No packet lost in 72 hours Full load traffic testing
Introduction
I502A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 2 Gigabit Ethernet ports, making them ideal for applications that demand high bandwidth.
No fan, Low power consumption design, working function more steady, andNo packet lost in 72 hours full load Traffic testing.
It Accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃Working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
Standards |
IEEE 802.3 for 10BaseT |
IEEE 802.3u for 100BaseT(X) | |
IEEE 802.3ab for 1000BaseT(X) | |
IEEE 802.3z for 1000BaseX | |
IEEE 802.3x for Flow Control | |
IEEE 802.3az for Energy-Efficient Ethernet | |
Flow Control |
IEEE 802.3x Flow Control |
Back Pressure Flow Control |
Switch Properties
Packet Forwarding rate |
8.928Mpps |
Processing Type |
Store and Forward |
MAC Table Size |
1 K |
Jumbo Frame Size |
10KByte |
Backplane |
12G |
Packet Buffer Size |
1Mbit |
Interface
Fiber Ports |
1000BaseX SFP Slot |
RJ45 Ports |
10/100/1000BaseT(X) auto Negotiation speed |
Full/Half Duplex mode | |
MDI/MDI-X connection | |
LED |
RJ45 Ports: Link G1, Act G1 |
Fiber Ports: Link/Act G2 | |
Power: PWR |
Power Requirements
Connection |
1 removable 6-contact terminal block |
Input Voltage |
12/24/48VDC (9.6 to 60VDC),Redundant Dual Inputs |
No-load Power |
5W @ 24VDC |
Full-load Power |
8W @ 24VDC |
Redundant Dual Inputs |
Present |
Reverse Polarity Protection |
Present |
over current Protection |
Present |
Physical Characteristics
Housing |
Hard aluminum Alloy case |
IP Rating |
IP40 |
Dimensions (W × H × D) |
41 × 153.5 × 128 mm |
Weight |
560g |
Installation |
DIN-rail Mounting, wall mounting |
Environmental Limits
Operating Temperature |
Standard Models: -25 to 60℃ (-13 to 140℉) |
Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
Storage Temperature |
-40 to 85℃(-40 to 185℉) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Standards and Certifications
EMI |
FCC Part 15, CISPR (EN55022) class A |
EMS |
EN61000-4-2 (ESD), Level 4 |
EN61000-4-3 (RS), Level 3 | |
EN61000-4-4 (EFT), Level 4 | |
EN61000-4-5 (Surge), Level 4 | |
EN61000-4-6 (CS), Level 3 | |
EN61000-4-8, Level 5 | |
Shock |
IEC60068-2-27 |
Freefall |
IEC 60068-2-32 |
Vibration |
IEC60068-2-6 |
EMI |
FCC Part 15, CISPR (EN55022) class A |
Warranty
Warranty Period |
5 years |
Ordering
Product Model |
Description |
i502A |
with 1 10/100/1000BaseT(X) port, and 1 1000BaseX SFP slot, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃Operating Temperature |
I502A-WT |
with 1 10/100/1000BaseT(X) port, and 1 1000BaseX SFP slot, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃Operating temperature |
