Xingyang Mining Machinery Factory

China Manufacturer with main products: Crusher, Grinding Mill, Flotation Machine, Agitation Tank, Thickener, Rotary Kiln, Rotary Dryer, Conveyor Belt

Home >Products Catalog > High efficiency slag material crushing line impact crusher ,fine stone crusher price for sale

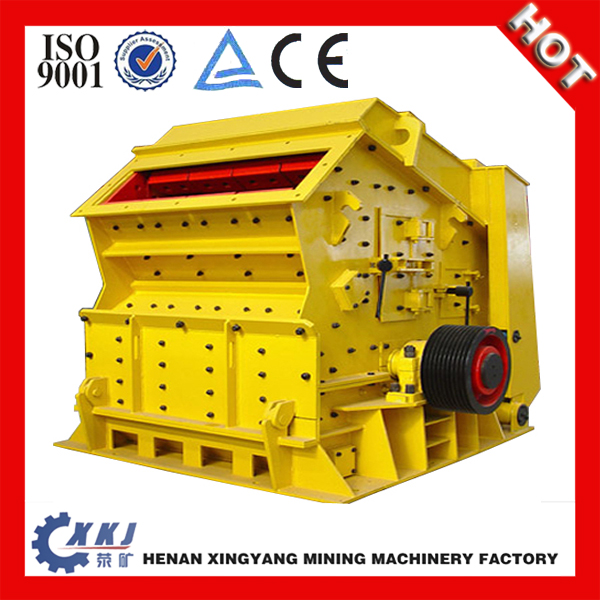

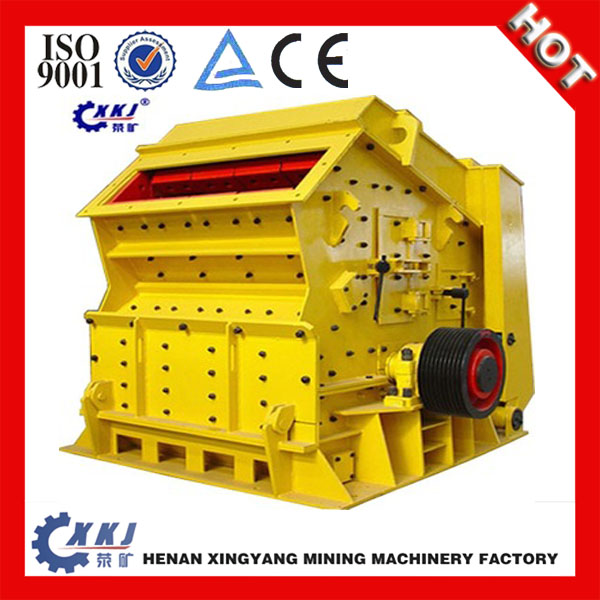

High efficiency slag material crushing line impact crusher ,fine stone crusher price for sale

FOB Price:	10,000.00 - 900,000.00 USD/Set
Supply Ability:	20 Set/Sets per Month
Shipping:	Shipped in 10 days after payment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	standard export packing of stone impact crusher or packng stone impact crusher as your requirement

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Certification: ISO CE
Weight: depend on the model
Dimension(L*W*H): depend on the model
Model Number: impact crusher
Brand Name: XKJ
Capacity(t/h): 4-350 t/h
Power(W): 7.5-280kw
Motor Type: AC Motor
Application: Mining processing
Type: Impact Crusher
Condition: New

Specifications

Product introduction

Structure

An impact crusher with a rotor and one or more impact members interconnected to form an adjustable impact member system, a first impact member being mounted pivotally around a first horizontal axis by way of at least one drive means, on the second horizontal axis of which a further impact member, pivotal by way of at least one drive means, is provided, in which context the horizontal axis pivotally supporting the impact member is provided in the region of that end of the first impact member which is remote from the horizontal axis and the second impact member comprises one or more levers.

Operating Principle

Material is fed in Impact Crusher from the periphery through a hopper into the grinding chamber to minimize air pressure, greatly reducing dust problems. For some material suitable ventilation is recommended by introducing air on the discharge side of the crusher, this will prevent a dusty atmosphere at the inlet of Impact Crusher. The swinging hammers in Impact Crushers crush the materials along the stationery liners before discharging through a perforated screen at the bottom; replaceable bar type screen is available for specific application. Combination of hammer style, liner plates and sieve inserts offer almost unlimited possibilities to cater user needs from an Impact Crusher.

Applications of Impact Crusher

XKJ Impact Crushers are used for crushing or shredding of diverse materials such as: Limestone, Glass, Coal and Lignite, Clay, Sand, Phosphate, Rock, Fertilizer, Aluminum Oxide, Slag, Coke, Silica, Bauxite, Dolomite, Grain, etc.

Parameters

Type	Specification (mm)	Max feed size (mm)	Capacity (t/h)	Motor Power (KW)	Weight (t)
PF-0504	Φ500×400	100	4-8	7.5	1.6
PF-0807	Φ800×700	100	15-30	22	3.5
PF-1007	Φ1000×700	200	30-50	37	8.5
PF-1010	Φ1000×1050	250	50-80	55	12.1
PF-1108	Φ1100×850	300	60-100	110	13.5
PF-1210	Φ1250×1000	350	80-135	110	14
PF-1214	Φ1250×1400	450	130-180	132	18.6
PF-1315	Φ1320×1500	600	160-250	160	19
MFD-20	Φ750×500	200	8-20	30	1.9
MFD-50	Φ750×700	200	10-20	75	2.6
MFD-100	Φ1000×700	200	15-30	130	5.4
MFD-120	Φ1250×1000	200	80-110	240	7.2
