Ecvv Trade
Xiamen Xinhonghua Machinery Co., Ltd.

China Manufacturer with main products: Heat Insulation PPGL Coil, Roof Panel Roll Forming Machine, C&U&Z Purlin Forming Machine, Straight & Tapered Sheet Automatic Slitting Machine...

Home  >Products Catalog > Roofing Sheet Roll Forming Machine > Metal Roof Panel\Color Steel Roofing Sheet Roll Forming Machine

Metal Roof Panel\Color Steel Roofing Sheet Roll Forming Machine

FOB Price: 25,000.00 - 35,000.00 USD/Set
Supply Ability: 20 Set/Sets per Month
Shipping: XIAMEN PORT,CHINA,Shipped in 60 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Fujian in China
Packaging Details: 1.Machine is fixed in the container with steel ropes so that the machine is kept from being collided

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 Year
  • Certification: SGS
  • Weight: 5500KGS
  • Dimension(L*W*H): 6500*1200*1500 mm
  • Voltage: 380V 50Hz 3phases
  • Power(W): 4KW+1.5KW
  • Model Number: YX13.7-875
  • Brand Name: XHH
  • Production Capacity: 8-14m/min
  • Use: Roof
  • Tile Type: Colored Glaze Steel
  • Type: Tile Forming Machine
  • Condition: New
  • Roller Material: 45# Forged Steel
  • Control System: PLC Computer Controlling System With Touching Screen
  • Forming Steps: 14 Steps
  • Effective Width of Finished Penal: 875mm
  • Effective Height of Finished Penal: 13.7mm

Specifications



1.Specifications of the YX13.7-875 roof panel roll forming machine

1).Main Techincal Data:

1.

Model Number

YX13.7-875

2.

Size

6500*1200*1500mm

3.

Weight

5500KGS

4.

Motor Power

4KW

5.

Hydraulic Power

1.5KW

6.

Voltage

380V/50HZ/3PH

7.

Forming Steps

14 steps

8.

Processing Speed

8-14m/min

9.

Thickness

0.3-0.6mm

10.

Feeding Material Width

1000mm

11.

Effective Width

875mm

12.

Height of Roofing

13.7mm

2). Main Accessories:

(1).Main Forming Machines;

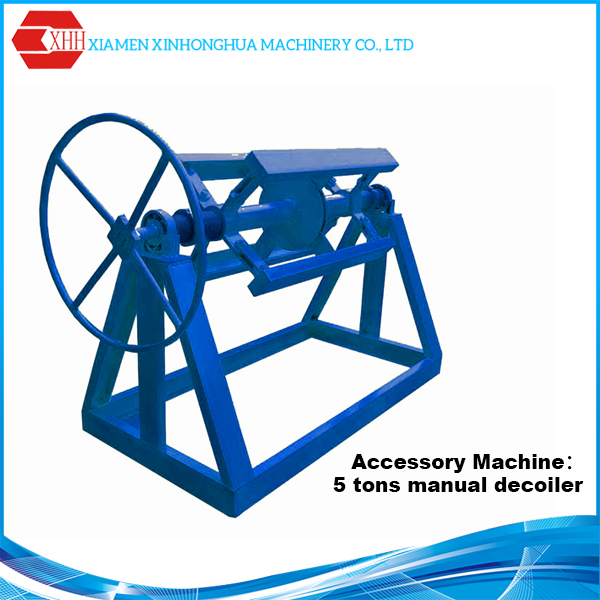

(2).5 Tons Manual Uncoiler;

(3).Hydraulic System;

(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching

     screen, cencorder and frequency changer)

(5).Hydraulic Forming Cutter;

(6).Tools;

(7).Operation Manual.

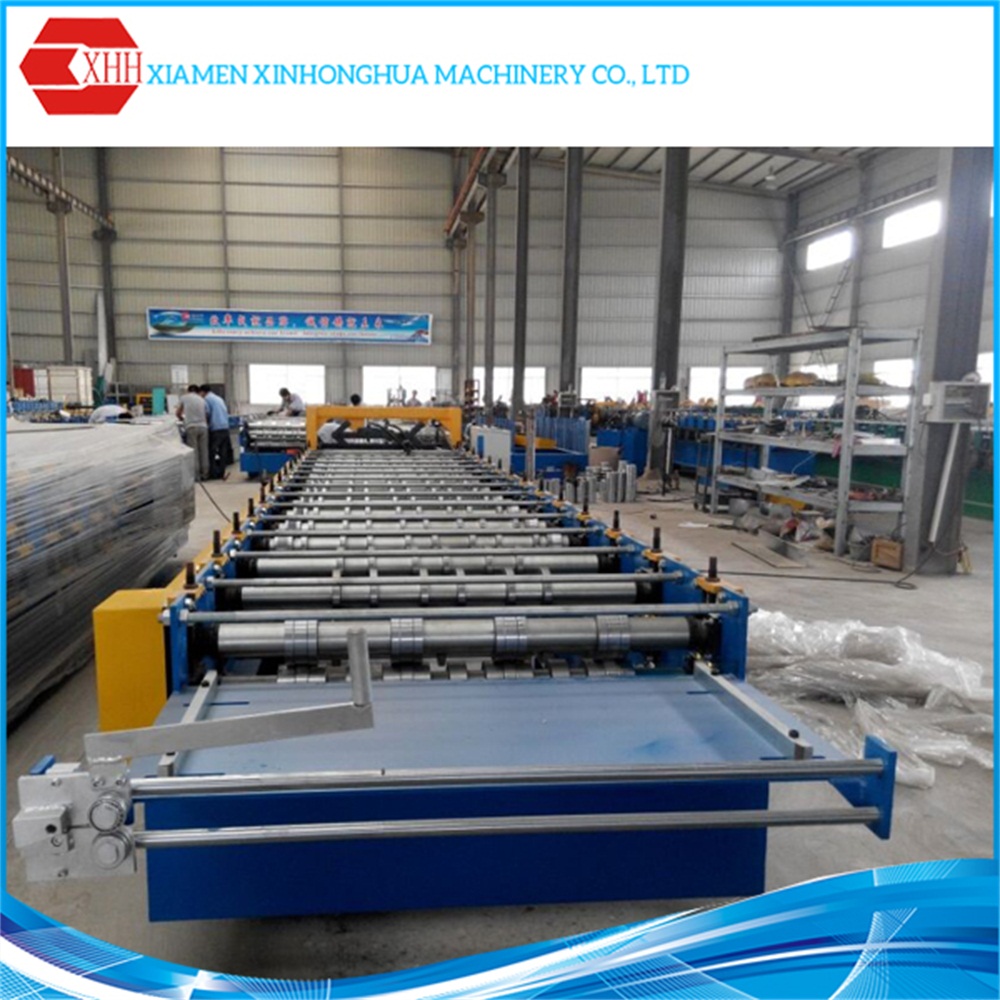

2.Pictures of roofing sheet making machine

Metal Roof PanelColor Steel Roofing Sheet Roll Forming MachineMetal Roof PanelColor Steel Roofing Sheet Roll Forming Machine

3.Certifications of Product

Metal Roof PanelColor Steel Roofing Sheet Roll Forming Machine

 4.Applications of Product

Metal Roof PanelColor Steel Roofing Sheet Roll Forming Machine

 5.Production Line of Product

Metal Roof PanelColor Steel Roofing Sheet Roll Forming Machine

Company Introduction

Xiamen XinHongHua Machinery Co.,LTD.founded in 2004, specialized in the production of roll forming machines, is a collection of product research and development design, manufacture, installation, debugging, training and other comprehensive ability.Our main machines are:Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines,Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine,Floor Decking Machine and Highway Rail Forming Machines, etc.

Our advantage

a.We as a manufacturer are Specialized in all kinds of cold roll forming machine since 2004.So for the design and produce there are much experience and professional people.

 b.Customers'design, color and logo are also accepted! Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.

c.Schneider PLC system:Ensuring high accuracy and easy to operate!Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.

d.Our machines exported to the Southeast Asia, Middle East, Africa, North & South America more than twenty countries and regions.We have professional team, complete production system, high quality products, good service.

e.Within the ONE-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.

Certifications of Our Company



Thank you for your attention!
