EF-VTS500 1750 Degrees Celsius Vacuum and Atmosphere Sintering Furnace
| FOB Price: | 10,000.00 - 500,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Year |
| Shipping: | Max. 90 business days in any China port |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hunan in China |
| Packaging Details: | Vacuum Sintering Furnace is packed by standard export packing. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: CE
- Weight: 1-10T
- Dimension(L*W*H): Custom Made
- Power(W): 100KW
- Voltage: 380V
- Model Number: EF-VTS500
- Brand Name: EasyFashion
- Usage: Sintering Furnace
- Type: Sintering Furnace
- Condition: New
- Heating Method: Internal heating methold
- Product Name: Sintering Furnace
- Application: degreasing and sintering of powder metallurgies and metal injection molding products
- Capacity: 10-500KG/batch
- Control Method: PID control
- Furnace Color: Optional
Specifications
Working Zone(dm)
(width×height×length)
rotary-vane vacuum pump and roots vacuum pump

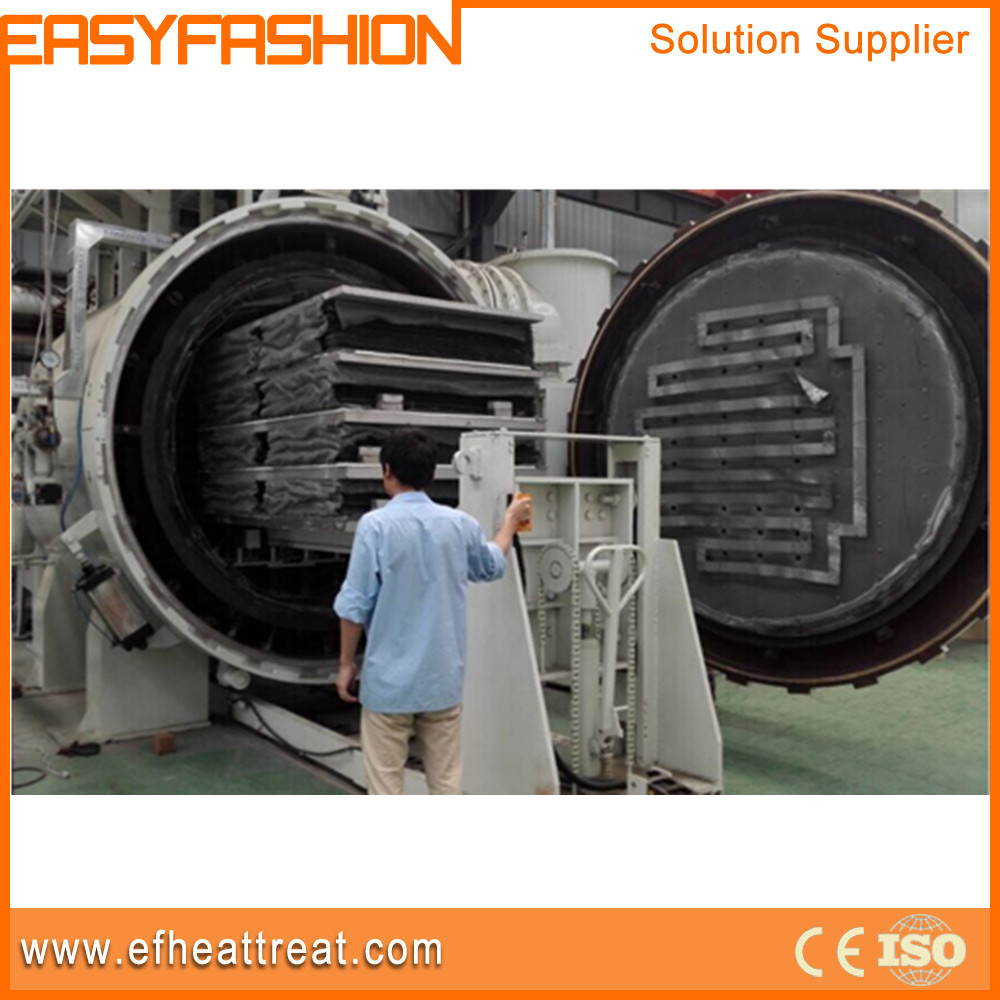

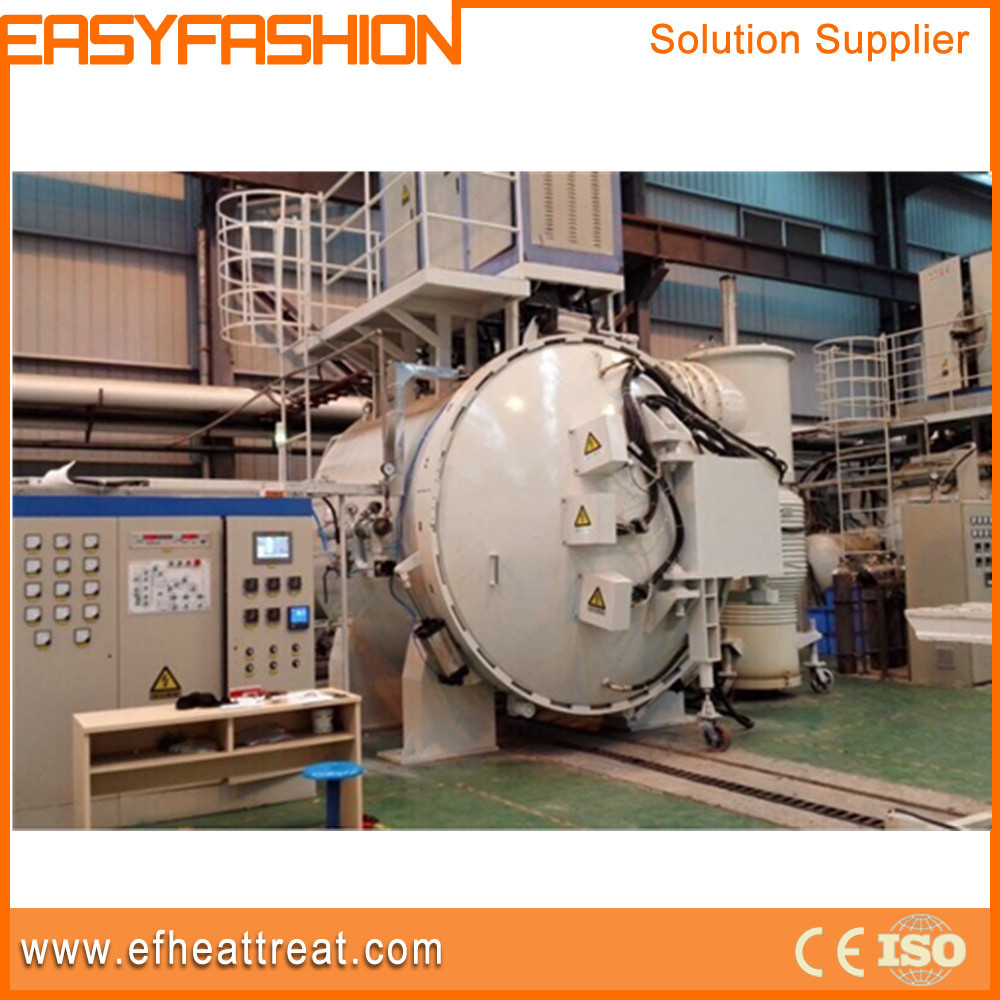

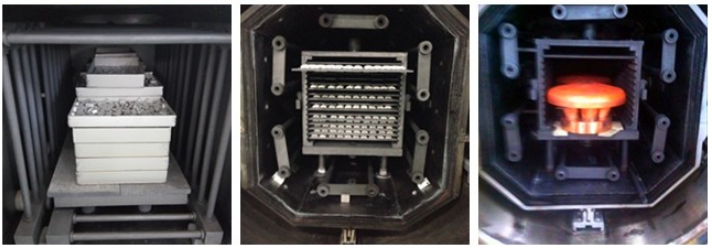

Vacuum Degreasing Sintering Furnace is the fantastic industrial furnace for degreasing and sintering of powder metallurgies and metal injection molding products including stainless steel, hard alloy, superalloy, high density alloy, ceramic material, magnetic material and NdFeB, etc.This powder metallurgy equipment offers continuous workflow covering degreasing, pre-sintering, sintering and fast cooling. Consequently, daunting procedures are successfully avoided, such as repeatable transport, heating and cooling to name a few. As a result, our customers benefit from drastically reduced quality failure, labor load, production cycle and cost.
Technical Parameters
Model
EF-VTS50
EF-VTS100
EF-VTS200
EF-VTS300
EF-VTS450
Rated Loading(kg)
50
100
200
300
400
Rated Temperature(C)
1550
1550
1550
1550
1550
Maximum Temperature(C)
1650
Temperature-controlled Precision(C)
≤±5
Rated Power(kw)
60
120
150
180
210
Rated Supply Voltage(V)
380
Rated Heating Voltage(V)
According to the design and configuration to set fore-furnace transformer
Ultimate Vacuum(Pa)
≤6.67(empty furnace and it's cool state)
Vacuum Pressure Increasing Rate(Pa/24h)
≤50
3×3×4
3×3×5
4.5×4×6.7
4.5×4×8.5
6×6×10
Temperature Control System Configuration
SHIMADEN intelligence temperature control unit,
adjustable PID operation module
Vacuum System Configuration
