Shanghai Jinyou Jinhong Wire&Cable Co., Ltd.
China Manufacturer with main products: Solar Cable, Power Cable, Control Cable, Bv Cable, Computer Cable |

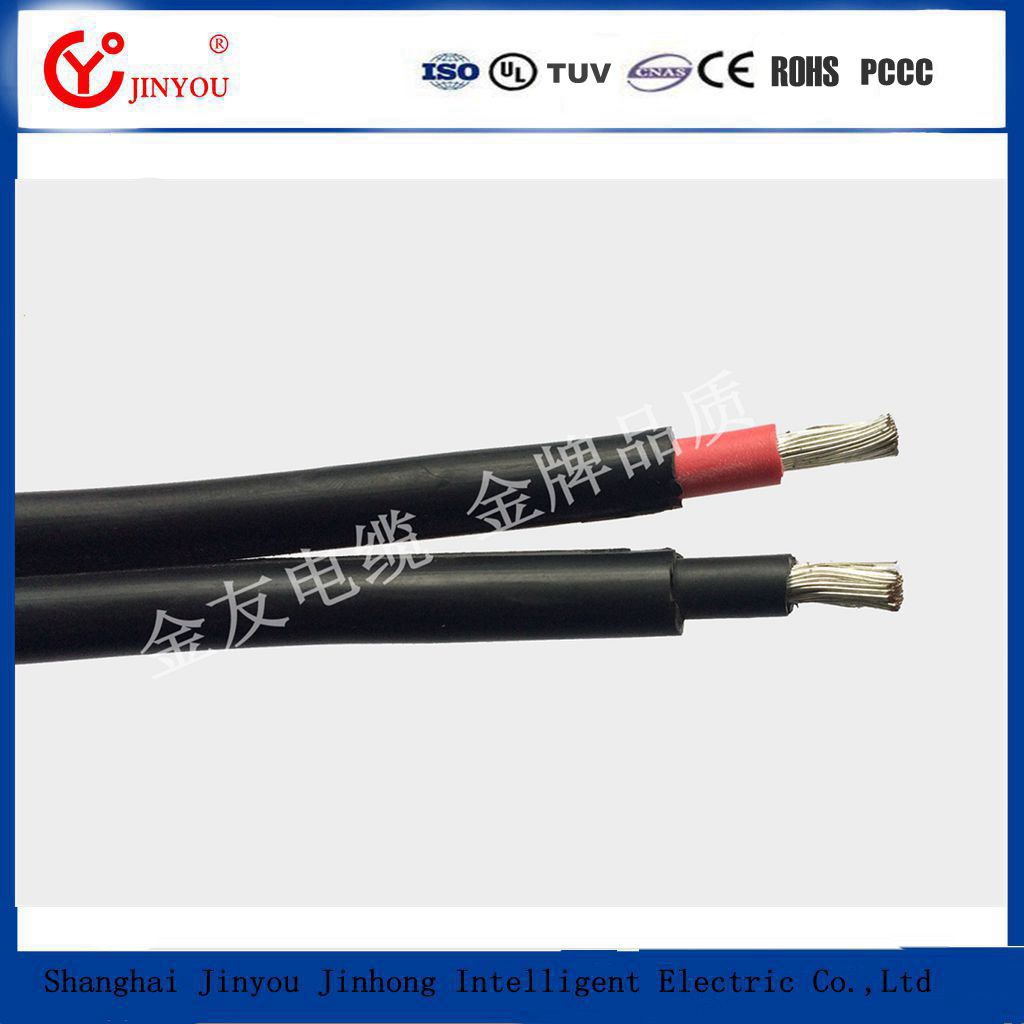

twin cores solar pv cable 2*10mm2
| FOB Price: | 1.00 - 2.00 USD/Meter |
|---|---|
| Supply Ability: | 3,000,000 Meter per Day |
| Shipping: | from shanghai port |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | per customer's request |
Quick Details
- Jacket: XLPE
- Conductor Material: Copper
- Application: Power Station
- Type: Low Voltage
- Insulation Material: XLPE
- Model Number: PV1-F
Specifications
Product Introduction
PV1-F photovoltaic cable is a kind of special cable used in solar power generation system. It is mainly applicable to DC voltage, derivate links of generating equipment, confluence connection between components and generating equipment system of DC1800V. It has climate resistance, cold resistance, high temperature resistance, friction resistance, UV and ozone resistance and other characteristics. The life service is at least 25 years.
This product is our company's patent product, patent No. 201120113349.8(dual core eight-lane separable photovoltaic cable), applicable standard CEEIA B218-2012. With the feature of polar identification on each group of cable, it can adapt MC3 and MC4 connector. It is convenient for grouping of installing and laying and on-site maintenance.

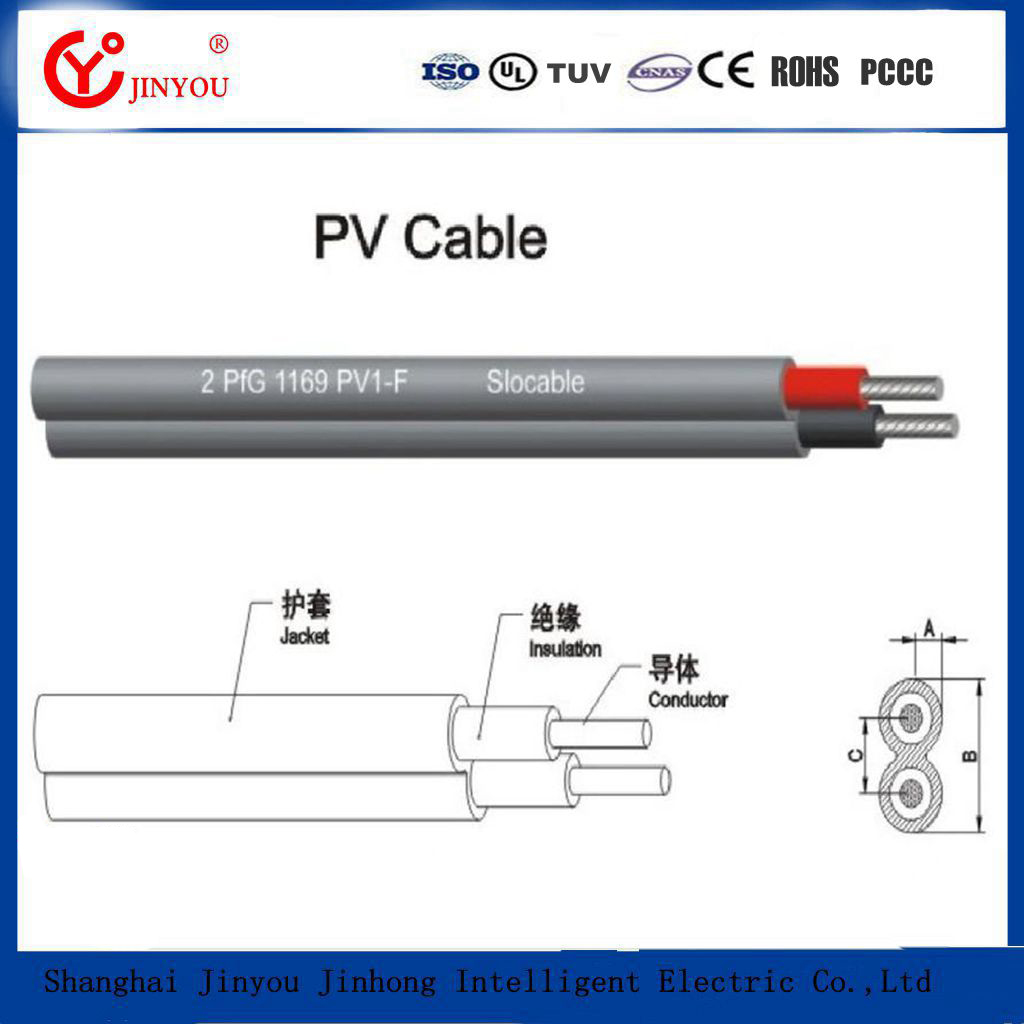

Model Specifications
|
|
|
|
|
Outer diameter() |
Conductor resistance |
Capacity(60oC A)Cable to cable |
|
AxB |
||||||
|
|
2*1.5 |
30 |
Red or White |
4.6*9.70 |
13.70 |
24 |
|
2*2.5 |
50 |
Red or White |
5.2*11.00 |
8.21 |
33 |
|
|
2*4.0 |
56 |
Red or White |
6.2*13.20 |
5.09 |
44 |
|
|
2*6.0 |
84 |
Red or White |
7.1*15.20 |
3.39 |
57 |
Product Features
Product name: Soft separable twin-core DC power cable for solar photovoltaic system
Product model:GF-WDZEESR
Product size: 2×1.5mm2
Standard:CEEIA B218
Ambient temperature:-40oC~90oC
Max temperature:125oC
Short circuit temperature:200oC
Insulation resistance:when20oC≥1014Ω,when90oC≥1011Ω
Rated voltage:U0/U=600/1000V AC,1800V DC
Test voltage:6500V,50Hz/5min
Flame retardant test:IEC60332-1,UL1581 V VV-1
Double vertical flame test:DIN EN 50265-2-1 UL1571 V VV-1
Withstand test for finished product(AC):6.5KV/5min, no broke down
Halogen free material, heat resistance,cold resistance,UV resistance,ozone and hydrolysis resistance.
Service life:at least 25 years.
