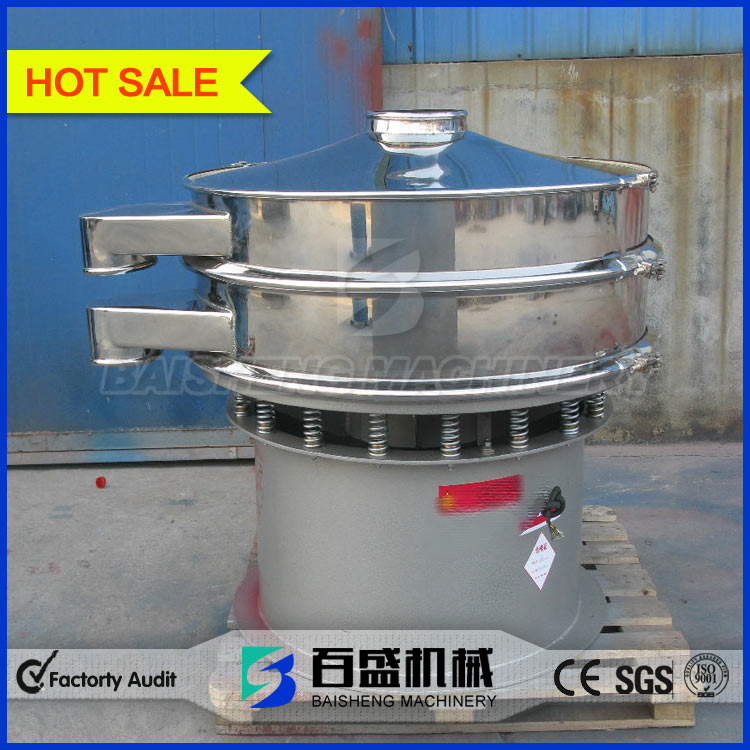

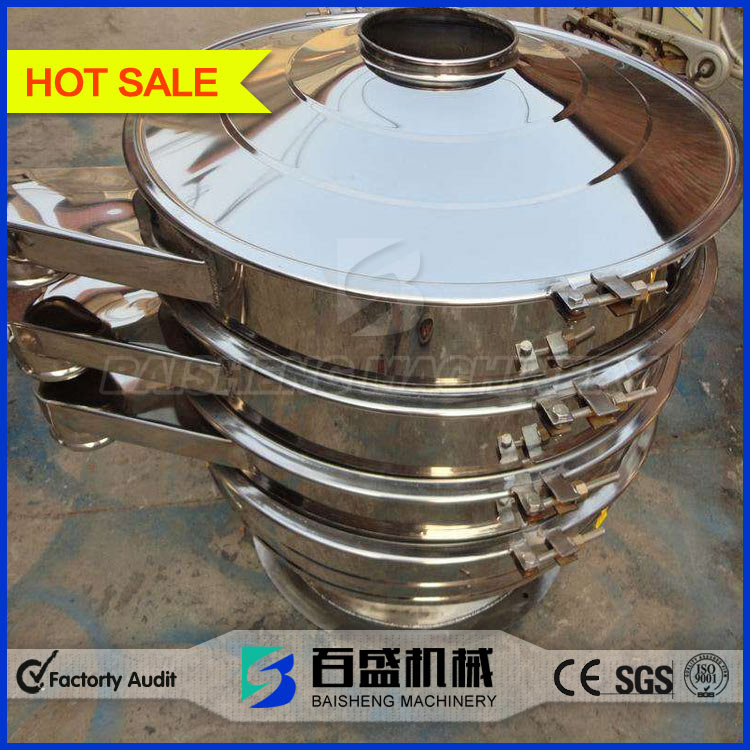

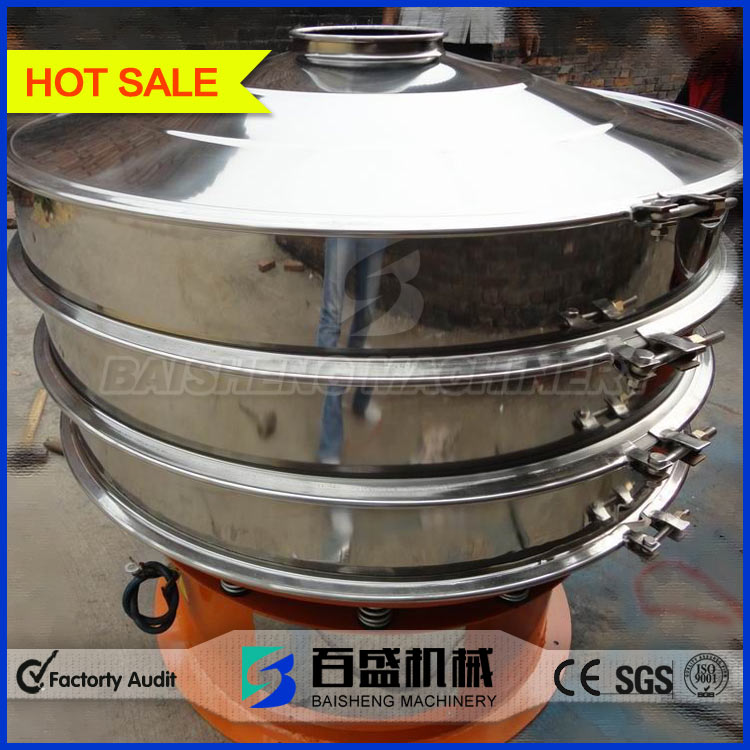

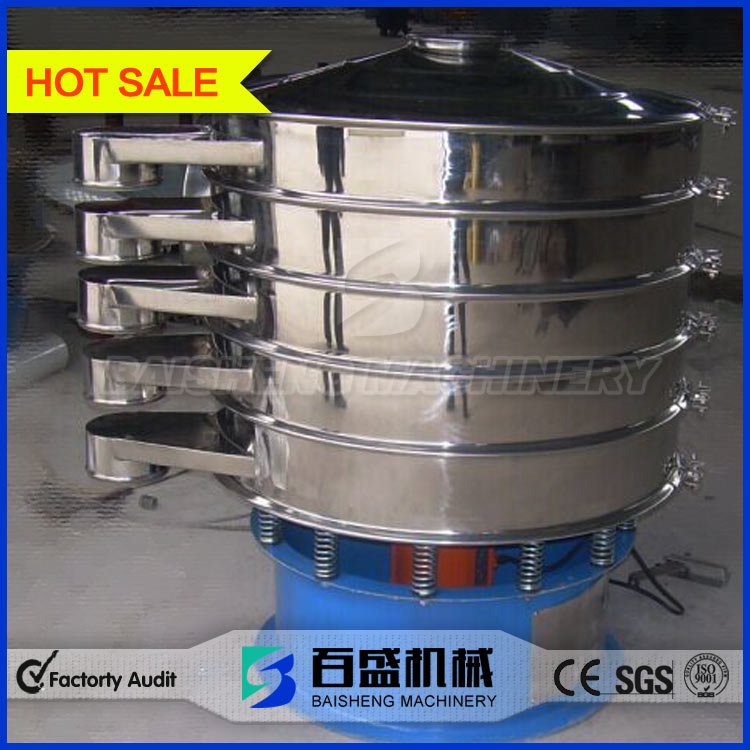

ROTARY VIBRATING SCREEN

Specifications

? Brief introduction

Rotary vibrating screen are used to separate materials into various sizes for further processing. Or for end use. Depending on our need. The material is separated by passing it through a vibrating "screen box" which has a number of different sized screens, or meshes, which the material falls through like a sieve, the material falls onto attached conveyors which stock pile the end products. The end products can then be used in the building and construction industries.

? Main Features

1.Small size, light weight, convenient to move, the material mouth direction can be arbitrary adjustment, coarse and fine material to be automatic out, can automation homework
2. The screening high precision, high efficiency, any powder, granule, mucus class all can apply
3.Don't mesh of obstruction, powder not float in the sky, the screening the most fine to 500 mesh (28 micron) filter the most fine to 5 micron
4.Unique network design, sieve net use for a long time, change nets fast, only 3 to 5 minutes, simple operation, easy clean
5. No mechanical action, maintain a simple, single or layers can be used

? Working principle

XZ Series multilayer rotary sieve rotary vibrating screen is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source. The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be change by adjusting the phase angle on both top and bottom parts.

? Application Area

XZ Series multilayer rotary sieve rotary vibrating screen acts as a precise powder sieve to filter medium particles such as sand, powder and mucilage. It mostly applied in chemical and pharmaceutical industries, metallurgy, mining industry, food processing, waste treatment etc.

To choose the most suitable machine for you ,please provide us more detail information as the followings:

1．Material:
  -Material name:_____
  -Feeding size:_____mm
  -Material density:_____t/m3
  -Material distribution:_____%
  -Separation destination:_____

2．Screen machine
   -Capacity:_____t/h
   -Screen deck: _____
3．Particle size distribution of each layer:
    -Opening size:_____mm
    -Construction material:_____
