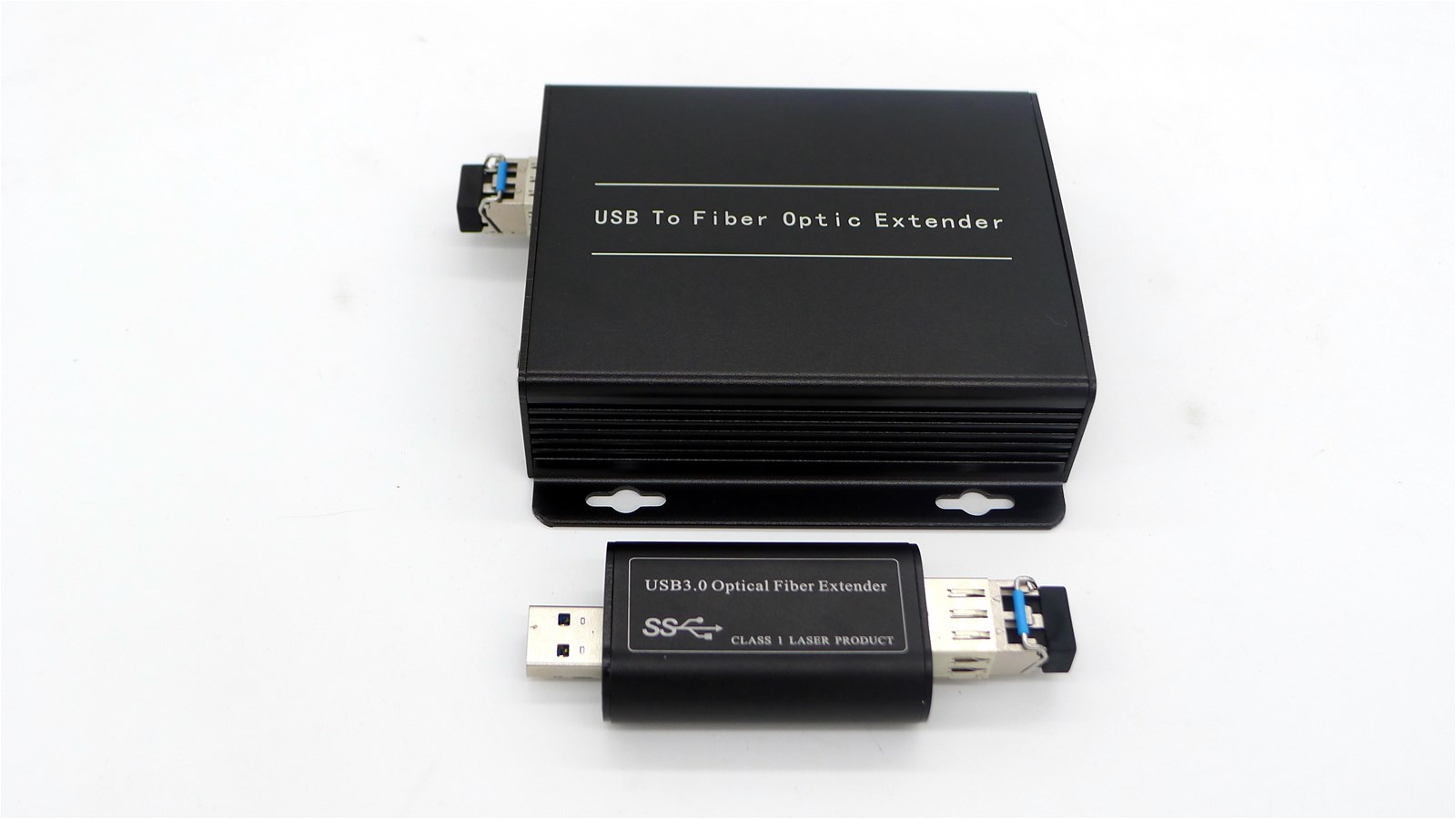

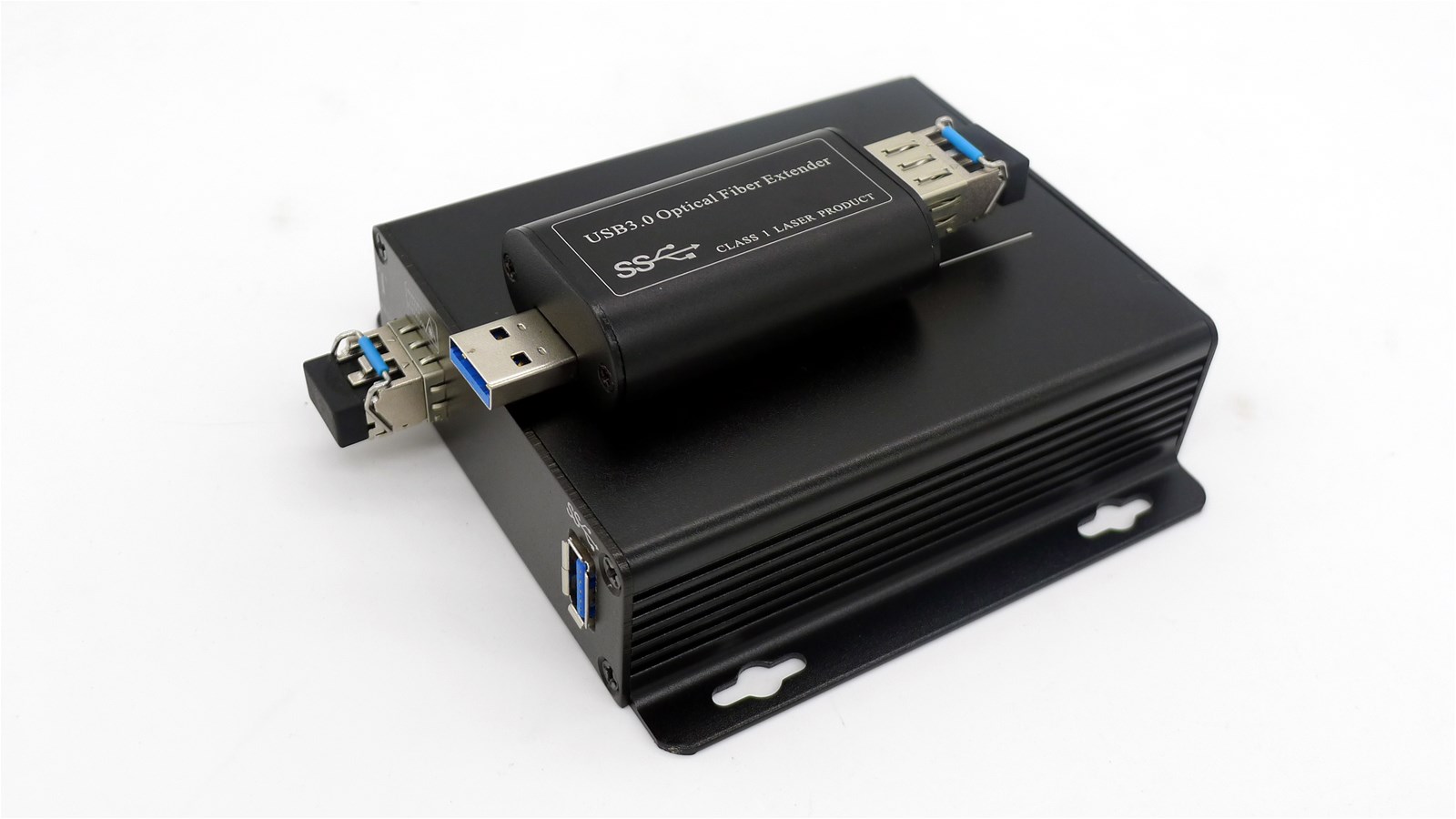

USB3.0 over Optic Fiber Extender/USB 3.0 to Fiber Converter
| Supply Ability: | 5,000 Pair(s) per Month |
|---|---|
| Shipping: | FOB shenzhen |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | carton box |
Quick Details
- Type: DC/AC Inverters
- Output Voltage: 5v2A
- Input Voltage: 5V2A
- Output Type: Single
- Brand Name: OEM/Beyondopto
- Output Current: 1
- Output Frequency: 60hz
- Weight: 1
- Size: 104mm x104mm x28mm
- Model Number: BY-ET-K3
- Wavelength: 1310/1550
- Data Rate: 5Gbps
- warranty: 2years
- Connector: LC/FC/SC
- Input Power Requirements: DC 5V@2A
- Shipping Weight: 1kg
- MTBF: >100,000 hours
Specifications

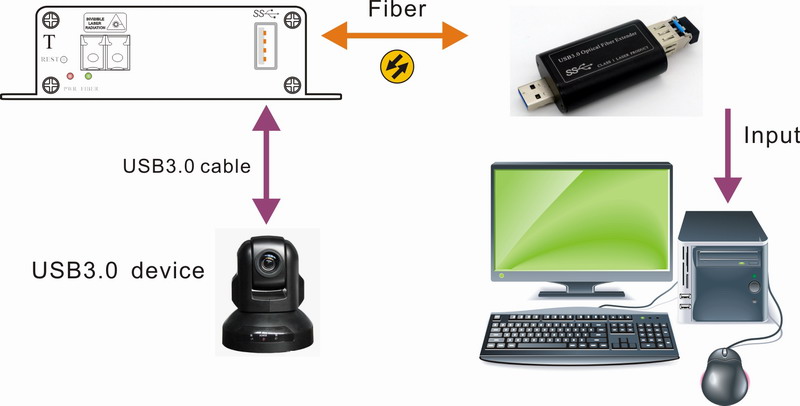

USB3.0 Optical Fiber Extender, also called USB3.0 to Fiber Converter. the device includes a transmitter(client-side) and a receiver(host-side), which can extend the SuperSpeed USB3.0 to a remote location over 1or 2 core fiber cable, max distance 250m (SM or MM fiber cable). Product specification: Optical Connector Duplex/Single LC Wave length 1310nm/1550nm Physical Size (L W H) 104mm x104mm x28mm Case Aluminum Color Black N.W. 0.75Kg Power Voltage 5V DC Sender power consumption <5W Receiver power consumption <5W Environment Working temperature 0-50 Storage temperature -40-85 Humidity 0-95% (non-condensing) Panel diagram: Equipment powered sequence: (1) Receiver(host-side)input USB3.0 port (2) Transmitter(client-side)powered with the DC 5 v adapter (3)the USB3.0 device connect to the transmitter(client-side) Note: If the host PC does not recognize the device, you can carry out the following operations: 1 press the the REST key of transmitter(client-side)5 seconds, restart the device. 2 Connect another USB3.0 interface of host PC. 3 uninstall the "USB3.0 hub" in the device manager, re connect. When the device is working, do not plug USB3.0 and fiber cable, so as to avoid the equipment does not work properly. Connection diagram:
Description
the device can extend high bandwidth USB 3.0 webcams and storage devices,be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.
Product feature:
