Danyang Rightools Co., Ltd.
China Manufacturer with main products: Drill Bits, Diamond Tools, Hole Saws, Hand Tools, Cutting/Grinding Disc, Screwdriver Bits |

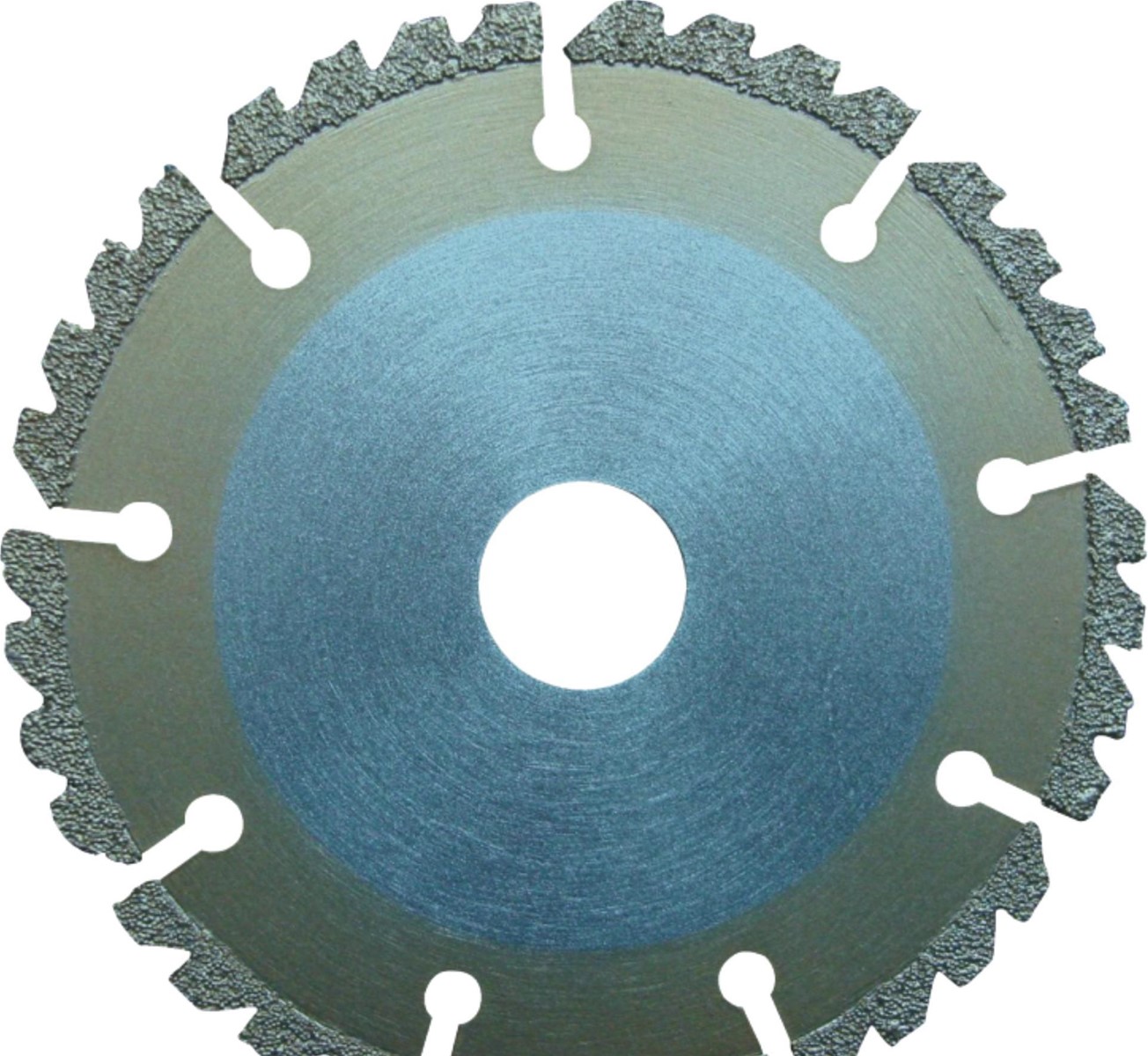

Vaccum Brazed Diamond Circular Saw Blade
| FOB Price: | 2.50 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 200,000 Piece/Pieces per Month |
| Shipping: | 20-30days after your deposite |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Color paper box,skin card,double blister card,or according to your requirement. |
Quick Details
- Size: 4",5",6",7",9",12",etc
- Finishing: Painting
- Blade Material: Diamond
- Model Number: RT-VBSB01
- Brand Name: RTOOLS OR OEM
- Material:: Diamond

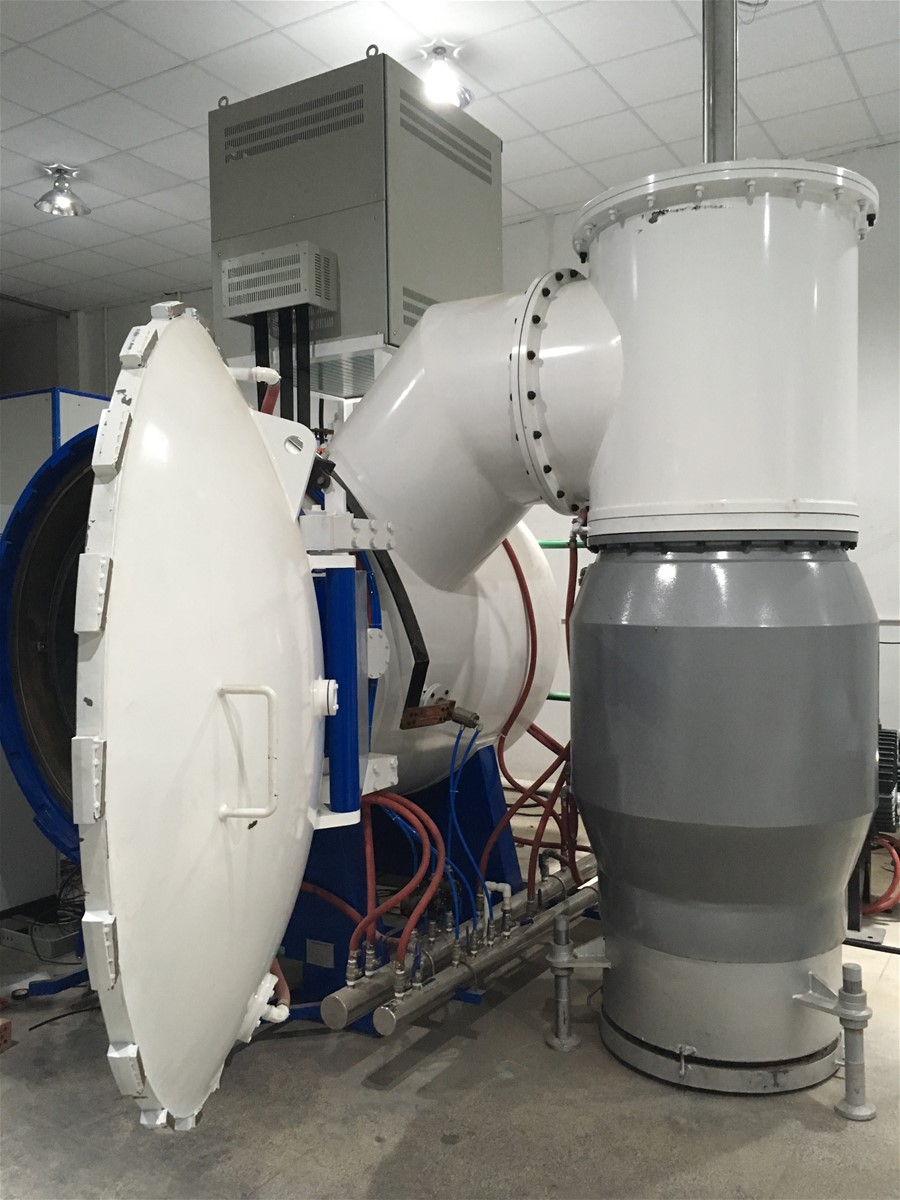

- Process:: Vaccum Brazed
- Size:: 4",5",6",7",9",12",etc
- Surface:: Painting,according to your requirement
- Diamond saw Blanks:: Wide slot, Key slot, etc
Specifications
Vaccum Brazed Diamond Circular Saw Blade
Vaccum brazed diamond tools cutting discs
1. diamond tools cutting discs for cutting the tiles /limestone/travertine, cutting much more faster and lasting much longer than electroplate marble blade.
2. Vacuum brazed, super aggressive and very smoothly while cutting the soft sones
3. Ideal for soft stone cutting, could perform on hard stone at minimized blade life
4. Wet or dry cutting and cutttig with water would help to extend the blade lifespan
Application Of diamond tools cutting discs
1, Use for cutting and grinding ordinary flat glass, frosted glass, sandblasted glass, embossed glass, wired
glass, hollow glass, laminated glass and glass block, diamond grit 80 -120. Cutting fast; the blade edge is not
easy to be broken.
2, Use for cutting and grinding granite, basalt, limestone, dolomite, sandstone, marble and other stone,
diamond grit 36- 60. Cutting fast; the blade edge is not easy to be broken.
3, Use for cutting and grinding porcelain, wall brick and floor tile, sanitary ware, ceramic handle, silicate
products and silicon wafer, diamond grit 36-60. Cutting fast; the blade edge is not easy to be broken.
4, Used for cutting and polishing of other metal products, such as aluminum, stainless steel, etc.
Size:|
Outer diameter |
Inner Bore |
Dimension of teeth |
||
|
inch |
mm |
Thickness |
Height |
|
|
3 |
80 |
16/20 |
1.8 |
8/10/12/15 |
|
4 |
105 |
16/20/22.3 |
1.8 |
8/10/12/15 |
|
4.3 |
110 |
16/20/22.3 |
1.8 |
8/10/12/15 |
|
4.5 |
114 |
16/20/22.3 |
1.8 |
8/10/12/15 |
|
5 |
125 |
16/22.3/25.4 |
2.2 |
8/10/12/15 |
|
6 |
150 |
16/22.3/25.4 |
2.2 |
8/10/12/15 |
|
7 |
180 |
16/22.3/25.4 |
2.4 |
8/10/12/15 |
|
8 |
200 |
16/22.3/25.4 |
2.4 |
8/10/12/15 |
|
9 |
230 |
16/22.3/25.4 |
2.6 |
8/10/12/15 |
|
12 |
300 |
50/60 |
3.2 |
10/12/15/20 |
|
14 |
350 |
50/60 |
3.2 |
10/12/15/20 |
|
16 |
400 |
50/60 |
3.6 |
10/12/15/20 |
1.Package:Color paper box,skin card,double blister card,or according to your requirement.
2.Payment:T/T,L/C,WESTERN UNION
Delivery:
1.20-30days after your deposite.
2.Shipping by sea,air,express
