Home >Products Catalog > High performance and stable quality induction type and vacuum PI film graphitization furnace

High performance and stable quality induction type and vacuum PI film graphitization furnace

FOB Price:	30,305.00 - 75,760.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	by sea full container loading
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	Standard export packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE & ISO
Weight: regular
Dimension(L*W*H): D500x1050mm
Power(W): 250KW
Voltage: 380v input 50/60Hz 3 phase
Model Number: KGPS-PI-250
Brand Name: no brand
Usage: Heat Treatment Furnace
Type: Induction Furnace
Condition: New
Model no: KGPS-PI-250
Power: 250KW
voltage: 380v 3 phase 50/60Hz input
Max. temperature: 3000 degree celsius
Working size: D500*1050mm
Working frequency: 1000Hz

Specifications

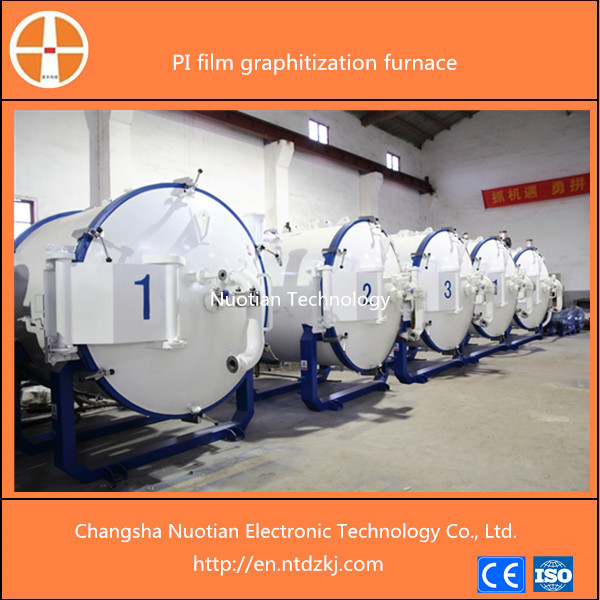

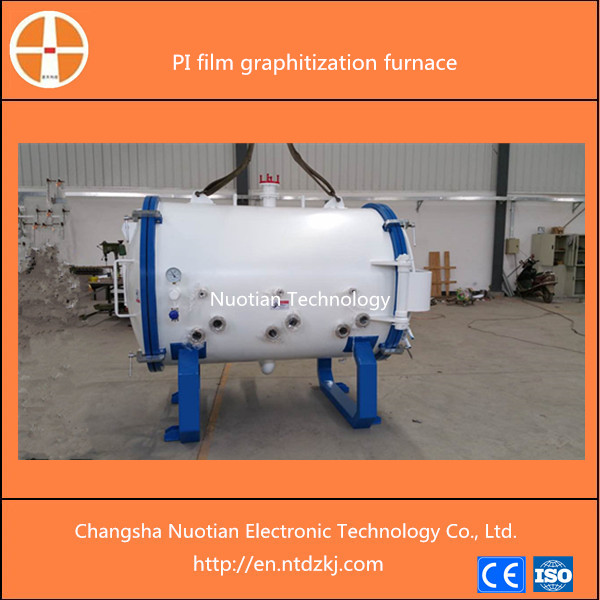

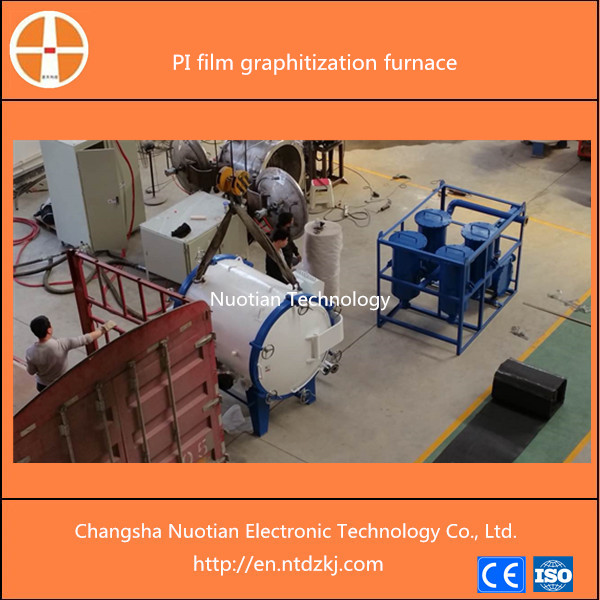

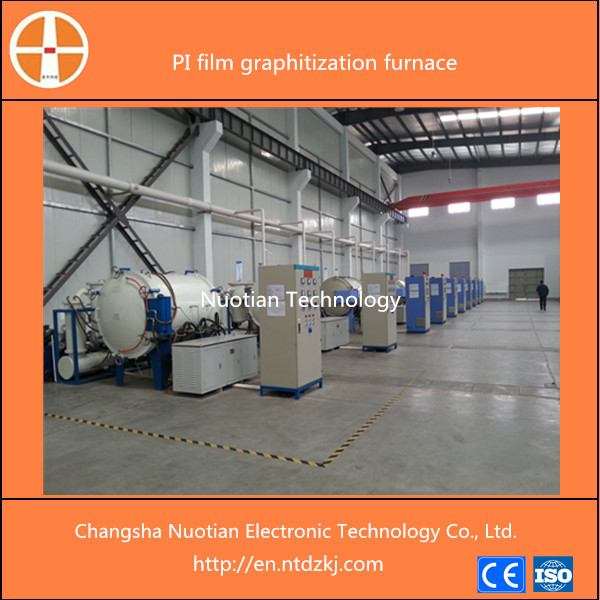

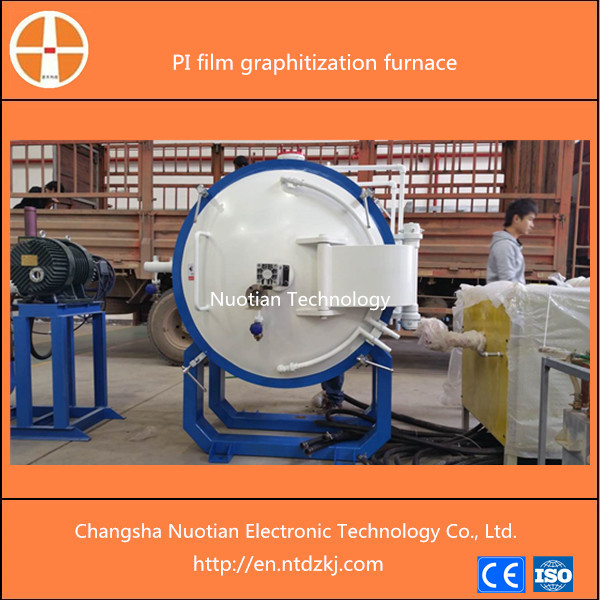

PI film graphitization furnace

A high performance intelligentize electric furnace of special carbon material field( suitable for other field) is launched by our engineers digested and absorbed foreign advanced temperature measurement, temperature control technology, intelligentize, new materials technology and furnace hearth design technology.
●Application:
Application for carbon material sintering, PI film graphitization, graphitization of heat conduction material, carbon-fiber line sintering, sintering graphitization of carbon-fiber lamp screw and other material of sintering and melting under carbon environment.
●Feature:

1.The highest using temperature: 3000℃

2.The working atmosphere in the furnace: vacuum, argon, hydrogen, nitrogen, inert gas etc.

3.Temperature measurement: far infrared optics for temperature measurement, the range of temperature measurement: 1000~3000℃ or 600~3100℃, the accuracy of temperature measurement: 0.2~0.75%

●Uniformity of furnace temperature:

Ultimate speed of temperature rising: 100℃/min(depends on the empty furnace, the volume of high temperature area and the furnace hearth structure)uniformity of furnace temperature:≤±10℃.

Temperature control: process control and manual control; the accuracy of temperature control: ±1℃

●High grade of equipment automatic:

1.Furnace body of ultra-high temperature within 3000℃, completely satisfies various of material sintering and graphitization.

2.Digital display of intelligent temperature control system, automatic high precision temperature control process, the system can rise temperature according to a given temperature curve, and can store twenty sections different craft heating curves in total 400 segments.

3. Adopting the internal circulation water cooling system; digital flow monitoring system, adopting high performance and medium frequency contactor for furnace body conversation; PLC water, electricity and gas comprehensive automatic control and protection system.

●Technology parameter:

The volume of high temperature area: 0.01m3, 0.02m3, 0.03m3, 0.05m3, 0.1m3, 0.15m3, 0.2m3 , 0.3m3 , 0.5m3, 0.8m3, 1.2m3

Parameter name/Product model	Unit	KGPS –PI-160	KGPS-PI-200		KGPS-PI-300	KGPS-PI-400
Available volume of the crucible (diameter*height)	mm	Φ200×300	Φ400*900		Φ600×1050	Φ800×1500
IF power	Kw	160	200	250	300	400
IF frequency	Hz	4000	4000	1000	1000	1000
The highest working temperature	℃	3000	3000	3000	3000	3000
Ultimate vacuum degree	Pa	6.6×10^-3	1.2×10^-1	1.2×10^-1	1.2×10^-1	1.2×10^-1
Pressure rise rate	Pa/h	2	2	2	2	2
The difference of constant temperature	℃	±10	±10	±10	±10	±10
