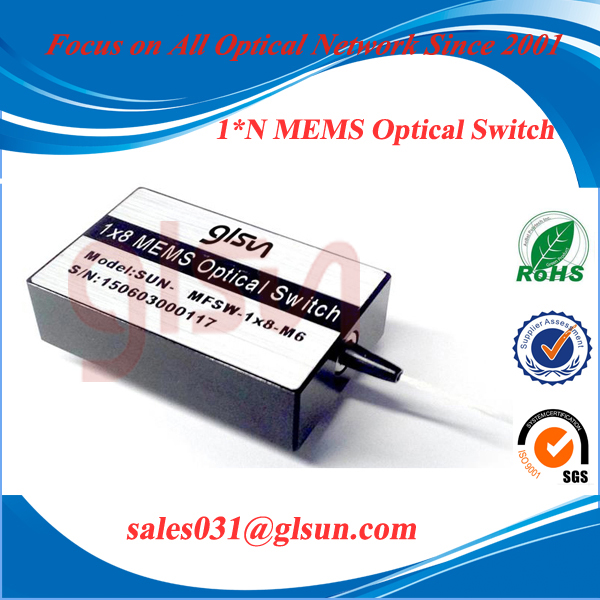

Multi-Channel Mechanical 1xN MEMS Optical Switch

Supply Ability:	20,000 Piece(s) per Month
Shipping:	within 7~30 working days
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangxi in China
Packaging Details:	by carton box

Quick Details

Brand Name: GLSUN
Wavelength: SM1260~1650, MM 850~1310 or 1550
Data Rate: //
warranty: 1 years
Connector: customized type
Model Number: SUN-MS-S1-1xN
PDL: less than 0.15
WDL: less than 0.3
Return Loss: more than 40; more than 25
Power Supply: 5~12V

Specifications

Multi-channel Mechanical 1xN MEMS Optical Switch

Applications

DWDM networks
Channel Monitor
R&D in Laboratory
Configurable OADM

Features

Base on MEMS technology
Small package
High Stability, High Reliability
Epoxy-free on Optical Path
Non-latching

Specifications

Parameters	Unit	SUN-MS-S1-1xN(16)
Wavelength Range	nm	SM	MM
Wavelength Range	nm	1260~1650	85020 or 131020 or 155020
Test Wavelength	nm	1310/1550	850/1310/1550
Insertion Loss		0.6(TYP) 0.8(MAX) N8 1.0(TYP) 1.6(MAX) N16	0.8(TYP) 1.0(MAX) N8 1.0(TYP) 1.5(MAX) N12
WDL	dB	0.3	0.3
PDL	dB	0.15	0.15
Return Loss	dB	40	25
Crosstalk	dB	50	30
Repeatability	dB	0.05	0.05
Power Supply	V	5~12
Switch Time	ms	20
Transmission Power	mW	500
Operating Temperature		-5~+70
Storage Temperature		-40~+85
Dimension	mm	(Type A) 39.1(L) x 24.7(W) x 11(H) 0.2
Dimension	mm	(Type B) 65(L) x 24.7(W) x 11(H) 0.2
Note: 1 Within operating temperature and SOP, MM CPR16. 2 Excluding connectors. 3 Power off isolation same as cross-talk. 4 WDL is specified in a 20 nm of 1550nm,at 23C. 5 Repeatability is defined after 100 cycles.
