Glsun Science & Tech Group Co., Ltd.
China Manufacturer with main products: Optical Switch, Optical Isolator, CWDM/DWDM, Splitter, EDFA, MEMS VOA, Optical Circulator, OTDR |

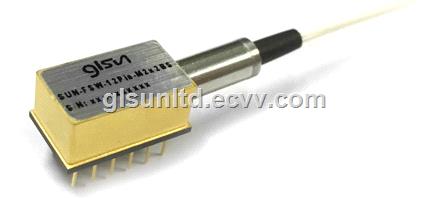

12Pin Mini single-ended Optical Switch
| FOB Price: | 1.00 - 5,000.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece(s) per Month |
| Shipping: | within 7~30 working days upon getting payment |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangxi in China |
| Packaging Details: | by carton box |
Quick Details
- Model Number: M1x1S or M1x2S or M2x2BS
- Brand Name: GLSUN
- Wavelength Range: 1260~1620
- Test Wavelength: 1310 / 1550
- Insertion Loss 1, 2: M1x1S Typ: 0.4 Max: 0.6; M1x2S or M2x2BS Typ: 0.6 Max: 0.8
- Return Loss 1, 2: more than 50 dB
- Crosstalk 1: more than 55 dB
- PDL: less than 0.10 dB
- Repeatability: less than +/-0.02
- Operating Voltage: 3V or 5V
- Durability: 10 Million
- Switching Time: Less than 8ms
Specifications
Features Applications
·Low Insertion Loss ·R&D in Laboratory
·Wide Wavelength Range ·System Monitoring
·Low Crosstalk ·OADM
·High Stability, High Reliability ·MAN (Metropolitan Area Network)
·Epoxy-free on Optical Path ·Network Security and Monitoring
·Latching and Non-latching
Specifications|
Parameters |
Unit |
M1×1S or M1×2S or M2×2BS |
|
|
Wavelength Range |
nm |
1260~1620 |
|
|
Test Wavelength |
nm |
1310 / 1550 |
|
|
Insertion Loss 1, 2 |
dB |
M1×1S |
Typ: 0.4 Max: 0.6 |
|
M1×2S or M2×2BS |
Typ: 0.6 Max: 0.8 |
||
|
Return Loss 1, 2 |
dB |
≥ 50 |
|
|
Crosstalk 1 |
dB |
≥ 55 |
|
|
PDL |
dB |
≤ 0.10 |
|
|
Repeatability |
dB |
≤ ±0.02 |
|
|
Operating Voltage |
V |
3 or 5 |
|
|
Durability |
Cycles |
10 Million |
|
|
Switching Time |
ms |
≤ 8 |
|
|
Optical Power |
mW |
≤ 500 |
|
|
Operating Temperature |
℃ |
0 ~ +70 |
|
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
|
Relative Humidity |
% |
5 ~ 95 |
|
|
Dimension |
mm |
(L)17.3×(W)10.4×(H)7.85 ±0.2 |
|
|
Note: 1 Within operating temperature and SOP. 2 Excluding Connectors. |
|||
--Pin Configurations
|
Type |
State |
Optical Route |
Electrical Drive |
Status Sensor |
||||
|
M1×1S |
|
|
Pin 3 |
Pin 10 |
Pin 5-6 |
Pin 4-5 |
Pin 8-7 |
Pin 9-8 |
|
Latching |
A |
P1-P2 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
Light close |
GND |
+5V |
Open |
Close |
Open |
Close |
|
|
Non- latching |
A |
P1-P2 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
Light close |
-- |
-- |
Open |
Close |
Open |
Close |
|
|
Type |
State |
Optical Route |
Electrical Drive |
Status Sensor |
||||
|
M1×2S |
|
|
Pin 3 |
Pin 10 |
Pin 5-6 |
Pin 4-5 |
Pin 8-7 |
Pin 9-8 |
|
Latching |
A |
P1-P2 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
P1-P3 |
GND |
+5V |
Open |
Close |
Open |
Close |
|
|
Non- latching |
A |
P1-P2 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
P1-P3 |
-- |
-- |
Open |
Close |
Open |
Close |
|
|
Type |
State |
Optical Route |
Electrical Drive |
Status Sensor |
||||
|
M2×2BS |
|
|
Pin 3 |
Pin 10 |
Pin 5-6 |
Pin 4-5 |
Pin 8-7 |
Pin 9-8 |
|
Latching |
A |
P1-P4,P2-P3 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
P1-P3 |
GND |
+5V |
Open |
Close |
Open |
Close |
|
|
Non- latching |
A |
P1-P4,P2-P3 |
+5V |
GND |
Close |
Open |
Close |
Open |
|
B |
P1-P3 |
-- |
-- |
Open |
Close |
Open |
Close |
|
Ordering Information:
SUN-FSW-12Pin-A-B-C-D-E-F-G-H
|
A |
B |
C |
D |
E |
F |
G |
H |
|
Optical Switch Type |
Fiber Type |
Operating Voltage |
Switch Type |
Test Wavelength |
Tube Type |
Fiber Length (Include connector) |
Connector |
|
M1×1S M1×2S M2×2BS |
SM: SM,9/125 X: Others |
3: 3V 5: 5V |
L: Latching N: Non-latching |
1310: 1310nm 1550: 1550nm 1310/1550: 1310/1550nm X: Others |
25: 250um 90: 900um X: Others |
05: 0.5m±5cm 10: 1.0m±5cm 15: 1.5m±5cm X: Others |
OO:None FP:FC/PC FA:FC/APC SP:SC/PC SA:SC/APC STP:ST/PC LP:LC/PC LA:LC/APC X:Others |
