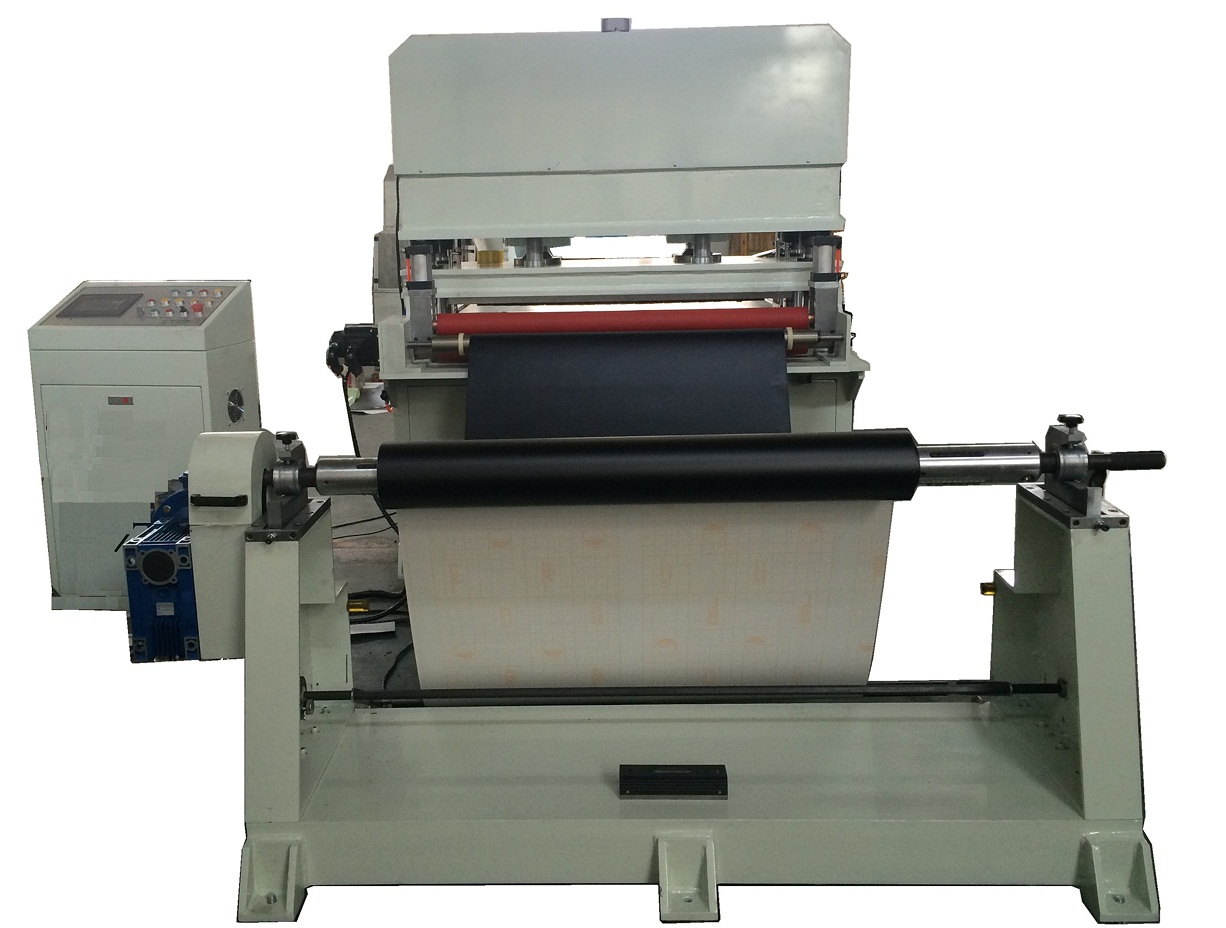

Roll to sheet automatic foam cutting machine
| FOB Price: | 10,000.00 - 40,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | Shanghai FCA or FOB or CIF |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden case packing |
Quick Details
- Processing Type: Foaming Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12months
- Certification: CE
- Weight: 4 Ton
- Dimension(L*W*H): configuration
- Power(W): 3KW,5.5KW,7.5KW,11KW
- Voltage: 380V/50HZ
- Model Number: DP-1200J
- Brand Name: DAPENG
- Product Type: Pe Film
- Condition: New
- PLC 1Set Made in: Japan Mitsubishi
Specifications
automatic automotive foam die cutting machine
this machine video please click :
https://youtu.be/L7XRezlLK-Y
Electronic positioning,automatic adjustment, precision and accurate, and the precision and accuracy can be controlled in 0.01 to 0.03 mm,
push board back and forth precision can be controlled in 0.02 to 0.05 mm
There is shockproof board installed at under-chassis , therefore , the machine body is stable and reliable
Applies to punch electronic materials such as aluminum foil ,PET, protective film , Mylar through cutting or kiss cutting,
all kinds of precision components of stamping forming
PLC + man-machine automatic programming control ,oil system adopts integrated control, and there is photoelectric protection
automatic foam cutting machine
1.With High-Speed Hydraulic System Increases Cutting Speed.100 strokes per minute
2.This machine can be used for cutting through or kiss .
3.Servo motor positioning system maintains positioning accuracy ±0.1mm which can result in up to 20% savings in material cost.
4. Used belt automatic feed. The materials are feeding from one side of machine and after die cutting , output from the other side of machine. The workers need only to pick up the finished cutting-out productss, which has greatly enhanced production efficiency.
5.Extremely robust construction maintains parallelism ensuring high precision punching accuracy.
6.Cutting table size and cutting force can be custom built upon the customers requirement.
| Configuration details | |||||
| l PLC 1Set Made in Japan Mitsubishi | |||||
| l Touch Screen 1Set Made in Taiwan | |||||
| l Photoelectric Safety 4Set Made in Taiwan | |||||
| l Automatic pressure regulating motor 2Set Made in Taiwan | |||||
| l Main Motor(7.5KW-4) 1Set Made in Taiwan Chyun Tseh | |||||
| l Oil Pump 1Set Made in Taiwan Danxin | |||||
| l Solenoid Valve ,Cooler 1batch Made in Taiwan Danxin | |||||
| l Main machine Hydro-cylinder 2 set Dapeng Machinery own | |||||
| l air cooling system 1set Made in Taiwan Danxin | |||||
| l Servo Motor 1set Made in Taiwan Delta | |||||

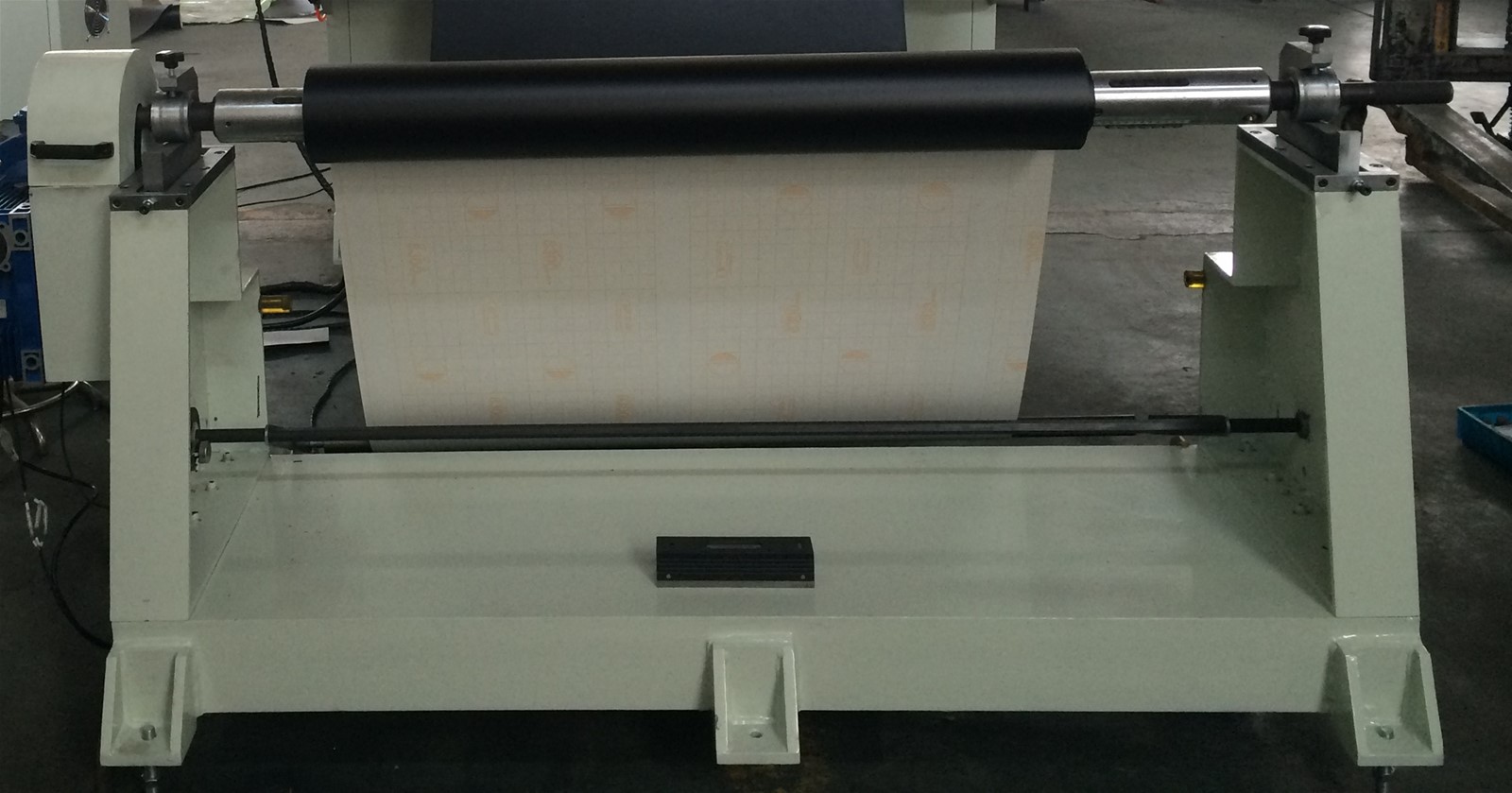

| l Automatic unwinding machine 1set width 1050MM | |||||
| l Automatic rewinding machine 1set width 1050MM | |||||
| l electronic pressure sensors 2 set Made in Beijing Hangtian | |||||
| l unwinding roller ( with tension control ) Dapeng Machinery own | |||||
| l waste discharge roller 1set ( include waste discharge motor) | |||||
| l pulling roller 1set Servo motor transmission | |||||
| Model | DP-20T,30T,40T,60T,80T,100T |
| Max cutting force(T) | 20T,30T,40T,60T,80T,100T |
| Stroke adjustment | 50-200 |
| Cutting area(mm) | 600×600 |
| 1000×600,700,800 | |
| 1600×600,700,800 | |
| Motor power | 3KW,5.5KW,7.5KW,11KW |
| Machine Net weight (KG) | 2200 |
| 3100 | |
|
4000-500 |
our company make hydraulic die cutting machine ,foam die cutting machine , gasket die cutting machine, EVA foam cutting machine etc ,
these machine used in automotive industrial , electronic industrial , packing industrial are ok
highly precision ,
high cutting force ,
large cutting area
automatic foam cutting machine
