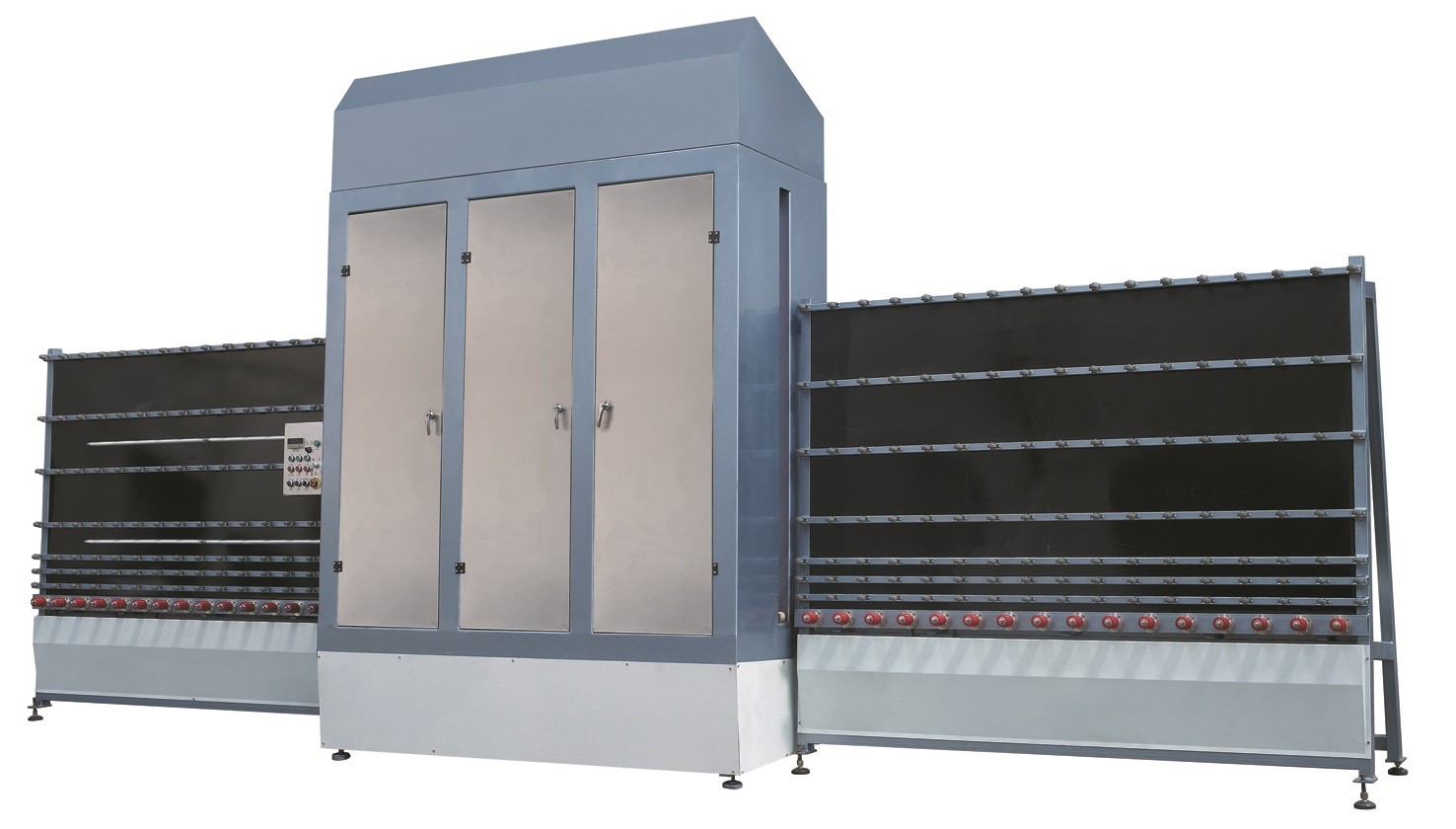

Vertical Glass Wash and Dry Machine

Specifications

Vertical Glass Washing And Drying Machine
Item NO. : SW18V

Description:

Vertical glass washing machine can be matched with glass insulating Line. It is combined function of three steps washing, stepless regulator driving system, which is easily to wash different size of glasses. Washing area has installed with stainless steel and other special treatment steel. Optional for hard and soft brusher device which is suitable for washing Low-E glass,

Features:

1). The machine has loading section, washing and drying section, washing quality inspection section.
2). LB Series vertical glass washing machine can be matched with insulating glass production line.
3). Glass can be dried fast with the design of strong air knives, stainless steel washing tank.
4). The soft low-e brush can wash low-e glass, also the machine can be designed according to your special demands.
5). PLC control system with touch screen operation interface.
6). Apply water-proof shaft and bearing in the drying section, imported Sweden SKF oil-free water proof bearings prevents the contamination to the water.
7). It has 6 soft brushes(we do machine is with 6 pieces brushes for exporting machine). Soft brush can wash Low-e glass.
8). There is one sensor on the first transmit stage. It saves electricity a lot.
9). Adopt interval working design for saving energy.
