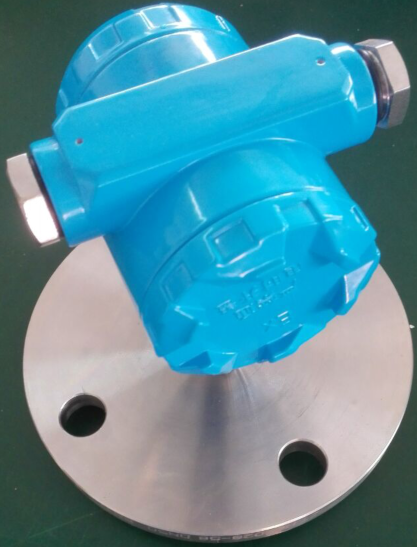

Explosion-proof Digital Pressure Transducer with Flange connections
| FOB Price: | 50.00 - 85.00 USD/Piece |
|---|---|
| Supply Ability: | 60,000 Piece/Pieces per Year |
| Shipping: | Shenzhen |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard export packaging |
Quick Details
- Model Number: HPT-3
- Brand Name: Shenzhen HUATIAN
Specifications
Instruction:
HPT-3intelligent pressure transmitter is an intelligent pressure measurement product with high accuracy, high stability, multi-parameter and four digits LCD display. It conforms to Hart protocol.
The product uses the most advanced digital technique, and reliable ex-proof construction for production andwhole product has high accuracy, and local display indictor could be widely used onpressure measure in outdoor application, such as petroleum, chemi-industry, metallurgy and power station, etc.
For signal output 4-20mA,RS485 and RS232 are optional.Feature:
Conveniently adjust Zero point and the full range;
Anti electromagnetic interference Design, Suitable for harsh environment;
Using micro computer technology;
Fully digital signal processing;
RS485/RS232 interface ( Up to 512 nodes );
Software correction of Zero point,full range,no need potentiometers;
High accuracy, 4-digit number LED display;
Suitable for large-scale data acquisition and automatic control system.
Applications
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system.
Energy and Water treatment system.
Automation equipment.Industrial process control.
|
Specifications( Refer to 25℃ ) |
||||
|
Sensor Type |
Piezoresistive |
|
Operable Temp.(℃) |
-20~85℃ |
|
Wetted parts |
316L Stainless steel |
|
Storage Temp(℃) |
-40℃…125℃ |
|
Sealing method |
O-ring |
|
Long term stability(annual) |
±0.25%FS(Typical) |
|
Housing material |
Aluminum alloy |
|
Zero error(%FS) |
±0.5% |
|
Damping |
Adjustable |
|
Full range error(%FS) |
±0.5% |
|
Protection grade |
IP66 |
|
Thermal Zero drift(%FS)* |
±2.0% |
|
Pressure port |
See below code description |
|
Thermal Span drift(%FS)* |
±2.0% |
|
Accuracy (Combined Non-linearity, Hysteresis and Non-repeatability)%FS |
0.5%(Typical),025%,0.1% |
|
Input Voltage / Output |
See below code description |
|
|
Response |
1KHz |
||
|
Pressure Range(Bar) |
0~0.1…600Bar |
|
Insulation |
Min1MΩ @250VDC&25℃ |
|
|
Shock |
100g, 11msec |
||
|
Over pressure |
3X Full Range |
|
Noise |
< 2m VRMS |
|
Burst pressure |
4X Full Range or 20kpsi which is less |
|
Pressure reference |
Absolute /Vent Gauge/ Seal Gauge |
|
Life |
>107 Full Range Pressure |
|
Weight |
950g Max. |
|
|
||||
l Thermal drift refer to 25℃ output
