Lake Technology Co., Ltd.
China Manufacturer with main products: Elevator Parts, Safety Barrier, Shaft Light, LED Panel, Load Weigher, Door Detector, Escalator Parts |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Type: Elevator Parts
Specifications
Specification
| Protection Class | IP65 |
| Material coating | PVC, self-extinguishing |
| Voltage | 220V-240V AC 50-60Hz |
| Lumen | 840lm/m |
| Light colour | 4000K |
| Angle of radiation | 120° |
| Durability | ≈ 50.000h |
| Supply cable | 10m H05VV-F 2x1.5mm2 with plug |
| Length LED band | maximum 50m |
| Ambient temperature | -30°C up to +45°C |
| Dimensions PVC coating | 13 x 8mm |
| Weight (without cable) | 108g/m |
The LED shaft lighting is appropriate for the homogeneous illumination of the lift shaft.
The LED band runs in one piece from the shaft ceiling to the pit, thereby avoiding horizontal shadows which are usually generated by the distance between the lamps. The coating of the strip shaft lighting consists of self-extinguishing PVC. There are 60 LEDs per metre, and always two LEDs are parallel connected. This arrangement increases the reliability of the individual sections.

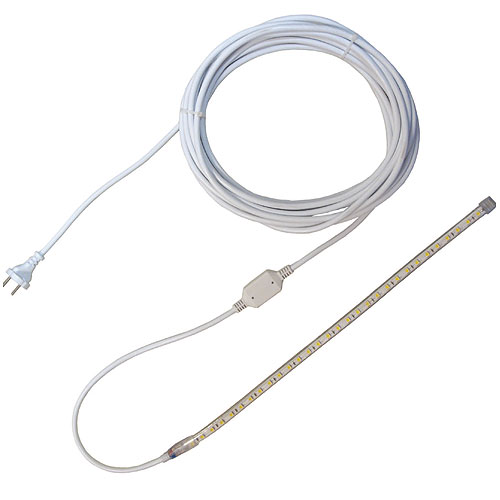

The LED band is delivered ready for connection with a 10m supply cable. The LED band is assembled in intervals of 1m. The longest piece possible is 50m. One LED band is sufficient for a shaft surface of up to approximately 6,4m.

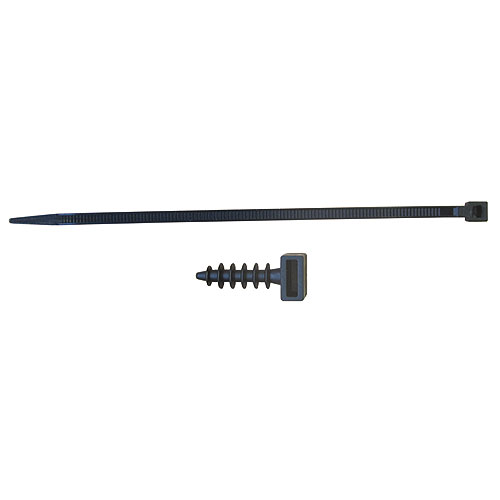

Other than for retrofitting this shaft lighting is especially suitable for the mounting of new installations without scaffolding. Due to the compact structural shape (width 13mm / height 15mm, including cable fixing dowels), the LED band can be installed in every lift shaft.
