Supplier of used tire to oil machine

FOB Price:	40,000.00 - 60,000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Qingdao(Shanghai)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Wooden packgae

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE,GS,ISO
Equipment Capacity: 6t 8t 10t
Condition: New
Model Number: DY-6t 8t 10t
Brand Name: DY
Capacity: 6t 8t 10t
Structural Form: Horizontal rotation
Cooling Model: water cooling
Function: recycle waste tire, plastic, rubber to oil
Heating fuel: coal, fuel oil, wood, gas etc
Material of Reactor: standard Q245R boiler steel

Specifications

Supplier of used tire to oil machine

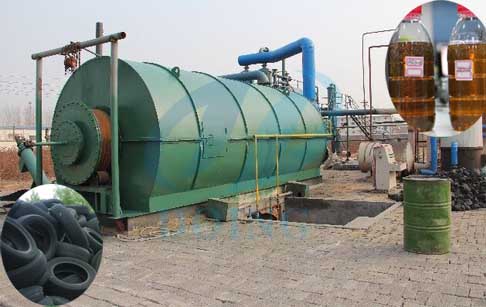

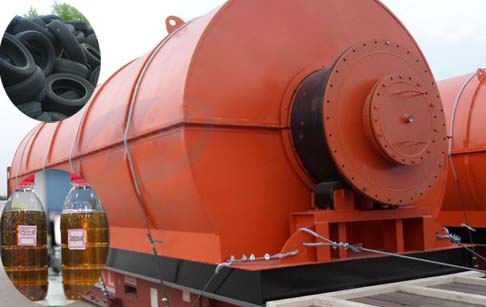

Used tire to oil machine
With Industrial progress, the emergence of new manufacturing facilities will inevitably lead to an increase of industrial and household wastes. A significant part of the MSW consists of rubber waste and plastic wastes: gaskets, hoses, conveyor belts, rubber rugs, protective clothing, etc. But the major environmental challenge is used tires. Every year, there are more than 1 million tons of used tires produced in China. In Europe countries, this figure rises to 2.5 million tons, in the United States—even up to 3 million tons. Find new green way to recycle so many used tires is of great environmental and economic significance for all countries around the world.

Here comes the DOING GROUP used tires to oil machine, it adopts the 100% recycling pyrolysis technology. The pyrolysis technology is characterized by high temperatures, conversion rates and continuum of processes ranging from thermal decomposition of rubber without addition of any reactive gases, such as air or oxygen. The used tires to oil machine pyrolysis process transforms scrap tires into a valuable fuel products and creates renewable energy sources. Used tires to oil machine technologies handle used tires through a process of thermal treatment to convert them into a fuel product: combustible gas, crude oil and steel wire, carbon black. The resultant pyrolysis gases can be used for energy production, fuels or chemical production, which significantly reduces the power consumption for processing – energy is only required during startup and emergency situations.

Used tires to oil Pyrolysis is process of molecular breakdown where larger molecules are broken down into smaller molecules. Used tires to oil machine is an industry designed to carry out pyrolysis of waste plastic & tyre. In the case of plastic/tire pyrolysis, long chain polymer is broken down into smaller chains of Hydrocarbon Gas and Pyrolysis Oil. Heat and catalyst are required for the reaction. The working process is outlined as the following:

1. Feed the whole waste tires or scrap tires into reactor, seal the reactor tightly.
2. Heat the reactor by burning the fuel (coal, wood, natural gas, oil) in the combustion system. The temperature in within the reactor is controlled and smoothly increased;
3. There is a thermocouple installed the oil gas outlet to test the oil gas temperature, when thermocouple show 120 Celsius degree, the oil gas will come out, then go through the cooling system become oil.
4. At same time, there are some gas (CH4, C2H6, C3H8, C4H10 and H2) which cannot be cooled under normal pressure; they will be recycled back to combustion system to burn as energy.

The main part of used tire to oil machine is: Reactor, catalyst chamber, water-oil separator, two big horizontal Condensers (great cooling effect), two oil tank, anti-back fire device, negative pressure device, vacuum device, buffer tank, water jet flue, condenser pipe, de-dusting system, draft fan and chimney.

Technical parameter of used tire to oil machine
No.	Items	Contents
1	Equipment type	DY-1-6	DY-1-8	DY-1-10
2	Raw material	Waste tires	waste tires	waste tires
3	Structural form	Horizontal rotation	Horizontal rotation	Horizontal rotation
4	24-hour Capacity	6 ton	8 ton	10 ton
5	Oil yield	2.7-3.3ton	3.6 -4.4ton	4.5 -5.5ton
6	Operating pressure	Normal	Normal	Normal
7	Material of pyrolysis Reactor	Q245R	Q245R	Q245R
8	Thickness of pyrolysis Reactor	16mm	16mm	16mm
9	Rotate speed of pyrolysis Reactor	0.4turn/minute	0.4turn/minute	0.4turn/minute
10	Total power	19KW	19KW	19KW
11	Mode of cooling	Water cooling	Water cooling	Water cooling
12	Cooling area of condenser	100sqm	100sqm	100sqm
13	Kind of transmission	Internal gear drive	Internal gear drive	Internal gear drive
14	Noise dB(A)	≤85	≤85	≤85
15	Size of Reactor(D×L)	2200×6000	2200×6600	2600×6600
16	Working form	Intermittent operation	Intermittent operation	Intermittent operation
17	Delivery time	20days	20days	20days
18	Weight	27T	30T	35T

Prepared by customer about used tire to oil machine
No.	Item	Consumption
1	Coal(for choice)	500kg/day
2	Wood(for choice)	800kg/day
3	Natural gas(for choice)	100-150kg/day
4	Oil(for choice)	300-350kg/day
5	Electricity	244kwh/day
6	Water(recycled)	60? /month
7	Total power	19kw
8	Land area	35m*15m

Used tires to oil machine pyrolysis technology is one of the most environmental friendly, cost-effective options for treating a wide variety of rubber products and plastics. Our machine have been installed in many developing and developed countries India, Pakistan, Malaysia, Philippines, Poland, Italy, Romania, Lebanon, Turkey, Mexico, Iran, Jamaica,Haiti, Ecuador and Guatemala, Haiti, Mexico, Brazil, Panama, Nigeria, Nigeria etc.
