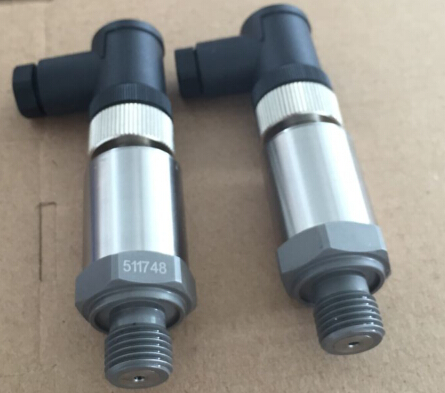

High Stability Pressure Transducer for Injection Molding Machine

Specifications

Features:

Compact,Universal structure;
Optional output signal.(Voltage/Current)
Optional core.(The ceramic core and The diffusion silcon core)
Optional pressure connection.
Widely used in Automotion equipment for measurement.

Applications:

The oil industry, chemical industry, Electric power.
Hydrautlic pressure system, pneumatic system.
Energy and water treatment system.
Automation equipment.
Industrial process control.



Performance parameters

Pressure range    : -0.1~250MPa
Pressure mode     : Gauge Pressure, Absolute Pressure
Output signal     : 4~20mA , 0~10V or Optional
Accuracy(%FS)     :     0.1   0.25    0.5
Nonlinearity(%FS) :   ≤0.1  ≤0.25   ≤0.5
Hysteresis(%FS)   :   ≤0.1  ≤0.25   ≤0.5
Repeatability(%FS):   ≤0.1  ≤0.25   ≤0.5
Zero drift (%FS/℃):  ≤0.02
Temperature drift(%FS)≤0.02
Stability (%FS/Year): ≤0.25
Working voltage(V)  : 12~36V DC(Standard: 24V)
Working temperature(℃): -20~85℃
Overload capacity(%): 300
Life span: more than 9 million times pressure cycle
Load resistance (Ω): ≤750
Response time (ms): ≤1
Measurement of medium: Mediums compatible with 316L
Diaphragm material: 316L or the ceramic diaphragm
Housing  material : 1Cr18Ni9Ti or aluminum alloy
Pressure interface: M20*1.5,G1/2,G1/4,1/4NPT or others
Protection grade: IP65
Weight : 80g
