Henan Quanshun Flow Control Science & Technology Co., Ltd.
China Manufacturer with main products: Industrial Valve, Segment Ball Valve, Slurry Valve, Tank Bottom Angle Valve, Bi-Directional Sealing Valve, Large Size Valve, Metal Seated... |

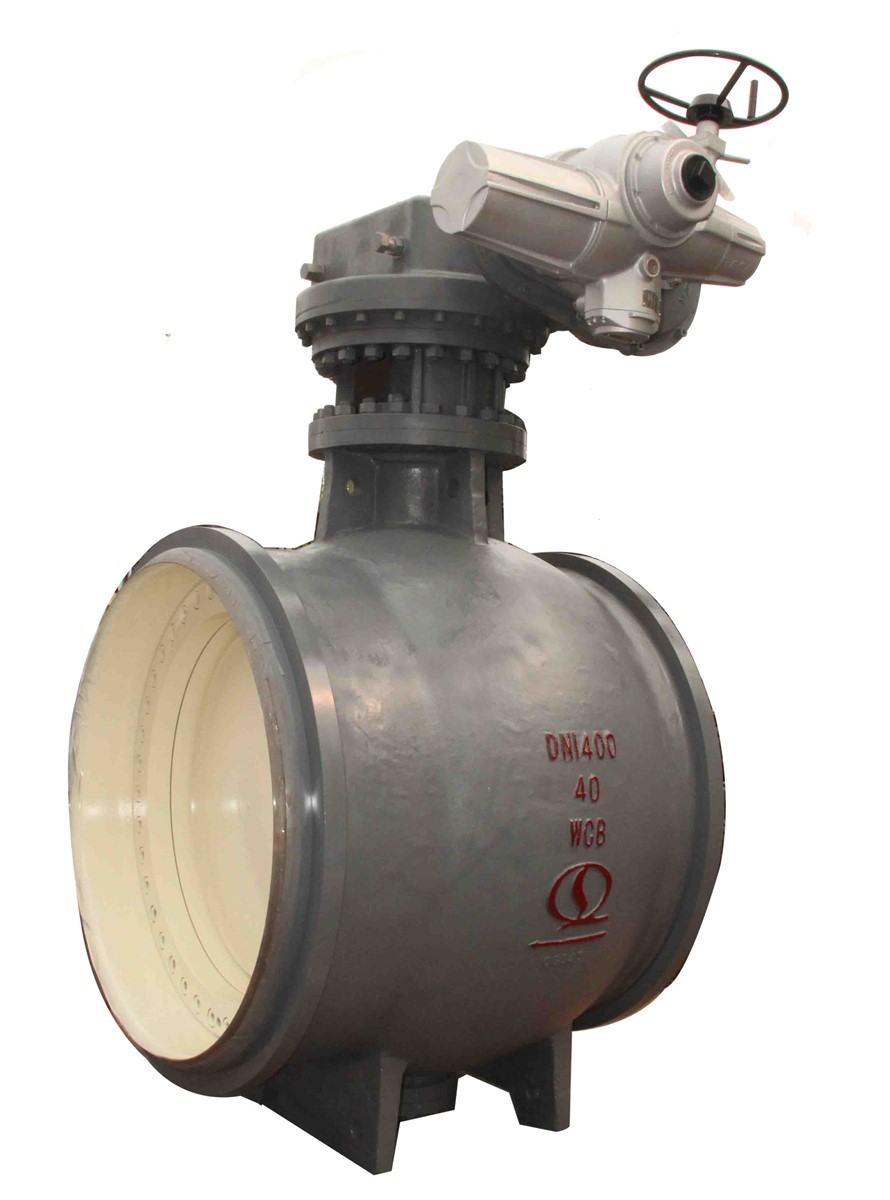

Electric weld type segment ball valve
| Supply Ability: | 500 Set/Sets per Month |
|---|---|
| Shipping: | By Sea |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden Box |
Quick Details
- Brand Name: QUANSHUN VALVE
- Model Number: BQ960H-40C
- Port Size: Shanghai
- Media: Water
- Temperature of Media: Medium Temperature
- Material: Casting
- Power: Hydraulic
- Pressure: Medium Pressure
- Structure: Ball
Specifications
Electric Weld type Segment ball valve is a high performance valve we have developed with advanced technology.It is designed on the base of O type ball valve,which solves the difficulties of conveyance of " solid-liquid" and " solid-gas" two phase medium.
Benefits
1.With straight through type valve body ,this valve can keep the fluid flow by linear when the valve fully opened,so it reduced less energy loss compared with other valves.
2.Easy to operate: As the valve disc moved away from valve seat without any contact,so it has smaller starting torque compared with O type ball valve and easy to operate.
3.Because of double eccentric structure design ,the semi-ball valve is perfectly sealed and can be closed tightly .
4.When the valve is closed ,the wedding force is able to remove the foreign materials ,therefore it has anti-scaling performance.
Technical parameter
1, Size: DN40~DN1400 2" ~56"
2 Pressure: PN0.6MPa~PN4.0MPa Class 150~Class900
Material: WCB(A105), CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc.
4.Sealing material: Stainless steel ,hard alloy or special treatment
5. Connection method: Welded type
6.Driving method : Electric
7, Design standard : ASME or DIN standard
Application
Steel Industry
Soda Industry
Water Industry
