Xi'an Foresight Electronic Technology Co., Ltd.

China Manufacturer with main products: Ups/Stationary Battery Test Equipment, DC Load Bank, Battery Discharge Tester, Battery Load Bank, Laser Rangefinder, Laser Distance Meter,...

Home  >Products Catalog > battery tester > Battery discharge tester 10V-300V 120Amp comparing to TORKEL840

Battery discharge tester 10V-300V 120Amp comparing to TORKEL840

FOB Price: 4,800.00 - 6,000.00 USD/Unit
Supply Ability: 200 Unit/Units per Month
Shipping: SHANGHAI
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shaanxi in China

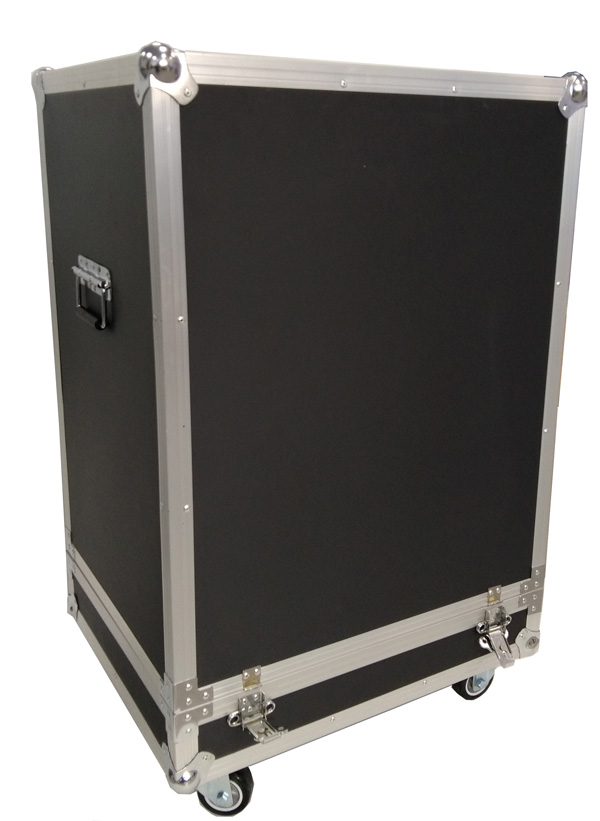

Packaging Details: ALLOY CARRYING CASE AND WOODEN CASE

Quick Details

  • Model Number: FST-8400CT
  • Brand Name: FORESIGHT
  • String voltage range: 1-300v
  • Discharge voltage: 10V-300V
  • Discharge current: 1-120A
  • Voltage measurement resolution: 0.01v
  • current measurement resolution: 0.1A

Specifications

General:

Batteries in power plants, transformer substations, Telecom company and Force communications must provide the equipment they serve with standby power in the event of a power failure. Unfortunately, however the capacity of such batteries can drop significantly for a number of reasons before their calculated life expectancy is reached. This is why so important to check batteries regular intervals, and the only reliable way of measuring battery capacity is to conduct a discharge test.

FST-8400CT –Utility is used for battery systems range from 10-300V, Discharge can take place at up to 120Amps, and if higher current is needed, two or more FST-8400CT units can be linked together.

Features

Specifications

Model

 FST- 8400CT

String Voltage measurement range

10V-30V

30V-60V

60V-144V

144V-288V

String Voltage Resolution

0.01V

Voltage measurement accuracy

0.5%

Constant Power adjustable range

600W-18000W

Discharge current Range

1-60A

1-120A

1-120A

1-60A

Discharge current control accuracy

0.1A

Current Measurement resolution

1%

Cell voltage measurement type

1.2V/2V: 0-4V; 6V:0-8V; 12V: 0-15V

Cell Voltage measurement range

Adopt Bluetooth wireless module, it can also monitor 1-24 battery strings, the quantity of each string is not limit, one module can monitor 24cells

 Cell Voltage resolution

0.01V

 Work Voltage

Single-phase three wire system 220VAC±15%   50Hz/60Hz

High-Voltage insulation test

Input-The enclosure: 2200Vdc 1min

Input-Output: 2200Vdc 1min

Output- The enclosure: 700Vdc 1min

Safety standard

EN610950

Cooling mode

Forced Air Cooling

Communication mode

USB Communication port and SD Card storage

Display

7inch Touch screen

Work Temp.

-550

Storage Temp.

-4070

Humidity

090%(40±2)

Noise

60dB

Altitude

Rated Altitude 4000m

Heat Dissipation

Forced Air Cooling

Dimensions

Weight

<55Kg
