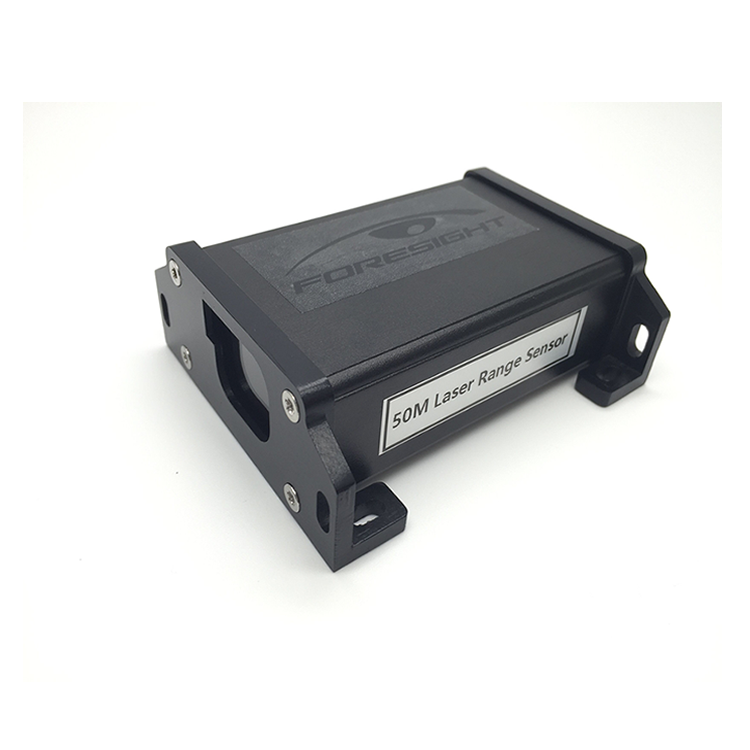

50M High Precision Industry Laser Distance Meter RS232/485 Interface/4-20mA Output for Industry Automation Application
| Supply Ability: | 1,000 Unit(s) per Month |
|---|---|
| Shipping: | shsanghai or shenzhen |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | CARTON |
Quick Details
- Measurement Range: 0.05-50M
- Measurement Accuracy: 1MM
- Size: 57X28X100mm
- Brand Name: FORESIGHT
- Gross Weight: 160g
- Model Number: FST-50M
- Power Supply: 5VDC or 9-24VDC
- Measurement Rate: 10HZ
- Laser life: 50000hours
- Laser type: 635nm
- Operation temperature: -20degree to60degree
- IP Grade: IP65
- Laser grade: class 2
- output mode: RS232 or 4-20mA analog output
Specifications
|
5VDC or 9-24VDC |
Measurement Accuracy |
+/-1mm |
Measurement rage(No reflector |
0.05-50m |
Rate: |
5Hz |
Laser Energy |
10mj |
Laser Life |
>20000h |
Spot Size |
5mm(10M) 8mm(20-50M) |
Laser beam angle |
<1mrad |
Laser Grade |
2 |
Output Mode |
UART;RS232 interface; 4-20Ma |
Laser type |
635nm,<1mw |
Dimensions |
57x28x100mm |
Weight |
160g |
Operation temperature |
-20 degree to 60degree |
Storage temperature |
-25 degree to 60degree |
Protect Grade |
IP54 |
