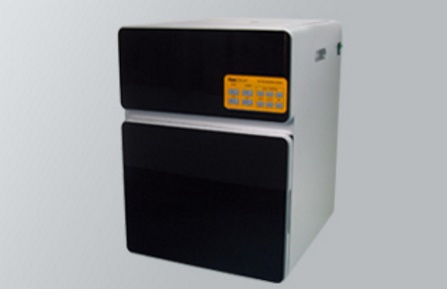

Gel Documentation System FluorShot PRO II SC850

Supply Ability:	500 Piece/Pieces per Year
Shipping:	2-3 weeks after money received
Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

B Factor assay kit / medical devices / automati...

Price:

Min. Order:1 Set
Model Y200D Oxygen Transmission Rate Tester

Price:

Min. Order:
Portable Intelligent Uroflowmeter CE Approved

Price:600.00-900.00 USD/Piece

Min. Order:1 Piece
Blood Glucose Test Strips

Price:

Min. Order:

Product Details

Place of Origin:	Shanghai in China

Quick Details

Model Number: FluorShot PRO II SC850
Brand Name: BIOTOP

Specifications

Model:	FluorShot PRO II SC850
Acquisition system:	Professional high definition black/white CCD
Effective resolution (pixels m) :	2,592x 1,944
Pixel Size (um V*H):	5.2*5.2
SNR:	70db
Pixel Density:	12 bit
Port:	USB 2.0
Lens:	Imported 6x motorized zoom F1.0, 2/3 inch high caliber penetrating lens
Darkroom:	Mold production, enclosed camera, built-in acquisition system, dustproof and shockproof, UV Safty
Filter:	Standard 590 screw-type filter with coating (contact for special requirement)
Operation interface:	With a panel or computer you can make full automatic control of zoom, focus, diaphragm, UV Trans and Reflect lamps.
Display:	Computer
UV Trans:	Standard 21*26cm with 312nm (254/365nm) Optional 20x28cm white light plate
UV Reflect:	Optional UV Reflect light source; used for paper chromatography and other Electrophoresis carrier which are opacity, but need a UV burst
White Reflect:	Standard LED white light
Fixed time functions:	Automatic switching off UV light source in 5 minutes (we can change it before product will leave the factory)
Software:	Genescope fully control-analysis software with Chinese interface, Win2000/XP, image capture, edit, analysis and database.
Power source:	110/220V
Dimension(mm):	430410560
Weight:	22kg
Certification:	CE

Main features

More models are available.

CE certification, more reliable.

Delicate computer, easy-moving, system noise is low.

Darkroom with mold production, enclosed camera, built-in acquisition system, dustproof.

Detection sensitivity: 20pg of double-stranded DNA.

Large area of UV transmission station, the biggest sample can be 21x26cm.

Wavelength of UV Trans and Reflect: standard 312nm, 254/365nm are available.

The most safety UV glue cutting device.
