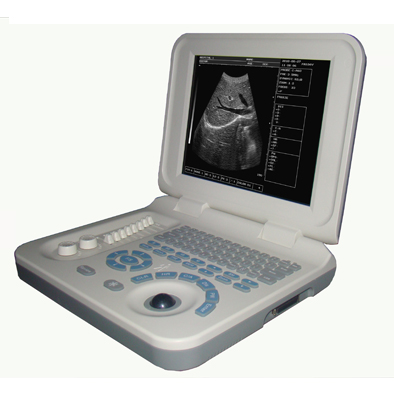

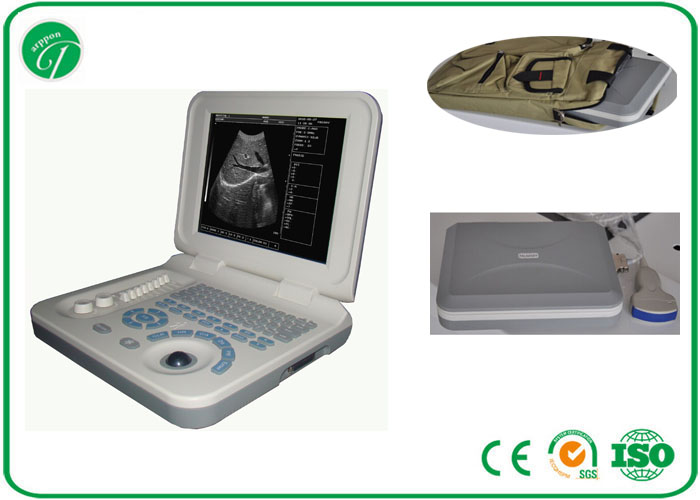

PL-3018 Full Digital Laptop Ultrasound Scanner

Specifications

10.4 inch Human use Full Digital B Mode Ultrasond scanner

Applications:

• Diagnosis of liver, gallbladder, kidney, spleen, pancreas, heart, thyroid gland, breast, uterus, bladder, ovary, etc.
• Clinical examination and diagnosis of abdomen and department of obstetrics and gynecology in the hospitals of county, rural-town and town.
• Supervising stations of Planned Parenthood in the city, county, rural-town and town to be suitable for the examinations of early pregnancy, contraceptive ring, perinatal period of pregnant woman, etc.

Standard Configuration:

• Main unit

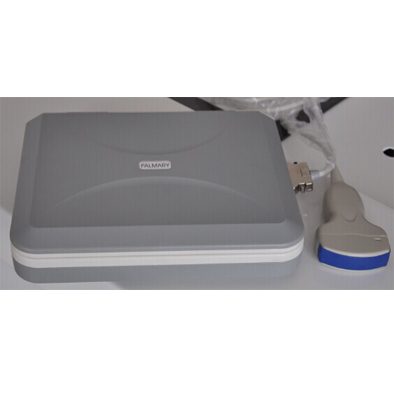

• 3.5MHz convex probe
• All accessories

Optional:

• 7.5MHz Linear probe
• 6.5MHz trans-vaginal probe
• Video Printer (MITSUBISHI P93)

Specifications:

• Display Mode: B, B/B, 4B, B+M, M;
• Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0;
• Scanning depth: ≥ 170mm;
• Lateral resolution: ≤ 2mm (depth≤80mm), ≤ 3mm (80"depth≤130mm);
• Longitudinal resolution: ≤ 1mm (depth≤80mm), ≤ 2mm (80"depth≤130mm);
• Blind: ≤ 5mm;
• Geometric position accuracy: lateral ≤ 15%;
• Longitudinal: ≤10%;
• Dynamic range: 0~120dB adjustable;
• Monitor: 10.4 inch high-resolution;
• Grey scale: 256;
• Measuring function: Distance, perimeter, area, volume, ellipse measurement, heart rate, gestational weeks (BPD, GS, CRL, FL, HL, etc), expected date of confinement and so on;
• Annotation: hospital name, patient's name, gender and age, full-screen character annotation, real-time clock display;
• Body marks: 64;
• Puncture guide: displayed under B mode;
• Gain control: 8 segments TGC and full gain can be adjusted respectively;
• Image reverse: left/right, black/white, up/down;
• Cine loop: 256;
• Permanent storage: 128;
• Image display: continuous playback, pieces of view Video;
• Output: SVGA, PAL, video recorder, Image workstation and etc;
• USB output;
• Machine size(mm): 300(L)×245(W)×60(H);
• Power: AC 220V±22V 50Hz;
• Input power: ≤ 300VA;
• Continuous work hours: ≥ 8h.
