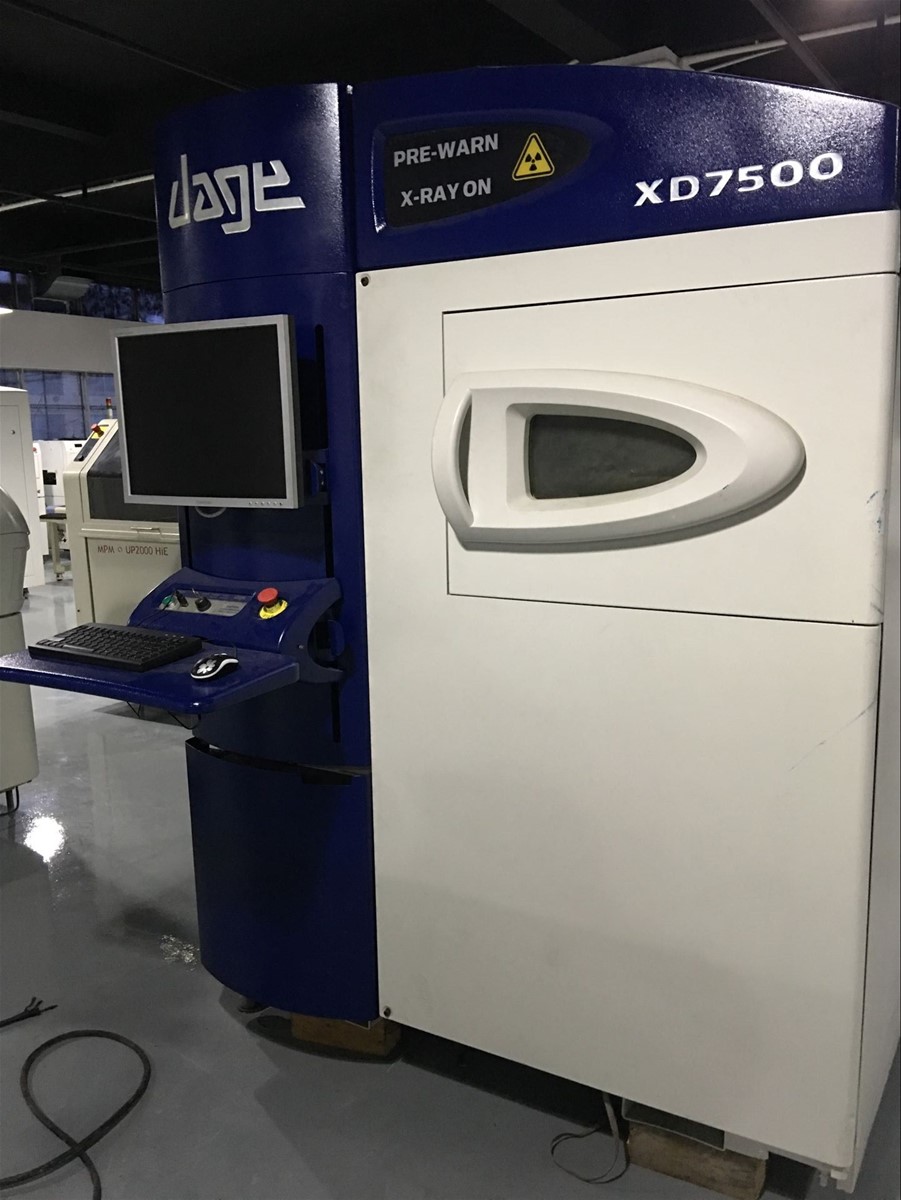

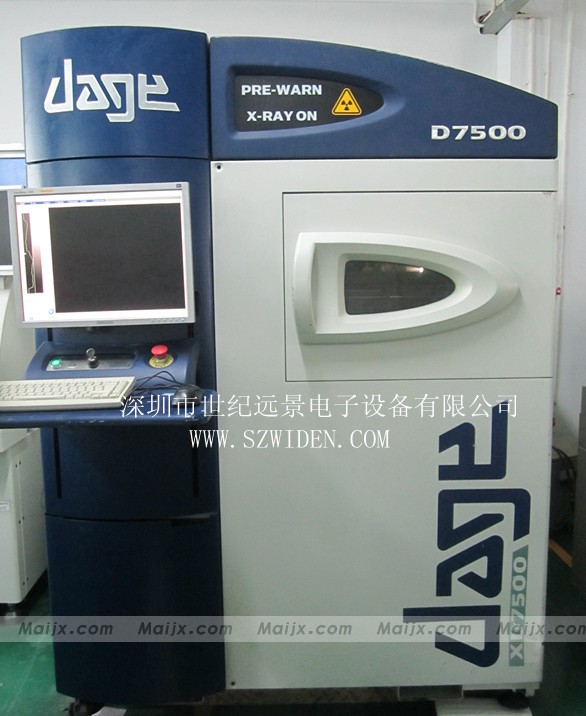

Dage XD 7500/7600/7800 X-ray inspection

FOB Price:	1.00 - 53,000.00 USD/Piece
Supply Ability:	5 Piece/Pieces per Month
Shipping:	Shipped in 10 days after payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia
Place of Origin:	Guangdong in China
Packaging Details:	Wooden Case

Quick Details

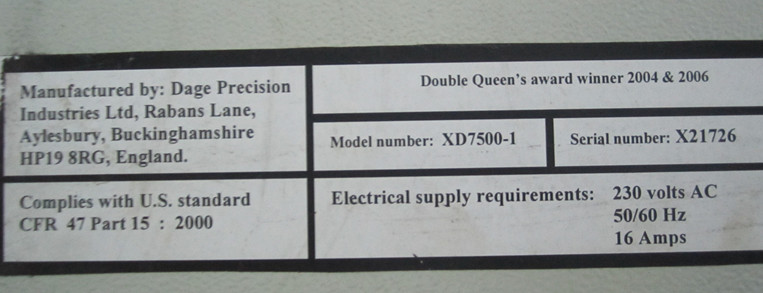

Model Number: XD 7500/7600/7800
Brand Name: Dage
Minimum resolution: 0.95 micron
Largest sample size: 508MM x 444MM
X-ray tube voltage range: 30-160 KV
X-ray transmitting tube: Open tube
Size: 1450*1700*1970mm
Weigh: 1900kg

Specifications

Features

New system delivers high technology in cost effective platform

Nordson DAGE Open, Transmissive X-ray Tube
< 0.95 μm Feature Recognition Tube
160 kV Tube with Full 3W of Target Power at Sub-Micron Feature Recognition
Nordson DAGE 1.33 Mpixel @ 10fps Long Lifetime CMOS Flat Panel Detector with Real Time
Image Enhancements
Geometric Magnification 1,400 X, System 4,200 X
29" x 22.8" (736 x 580 mm) Maximum Board Size
Up to 65° Oblique Views without Loss of Magnification
23" TFT LCD Monitor
No Programming Skills Required for Automated Inspection Tasks
High Quality Real Time Imaging
μCT Option

Application

The tester desigh meet PCB and the growth of the semiconductor industry needs,user could easily get high quality/High magnification/high resolution which be tested any image at any directions.As use the open tube technique ,more than use closed Tube which X-Ray tester submicron order tester could reach submicron in the magnification factor,could meet the customer accuracy demand.
