2 cavity full automatic stretch injection blow moulding machine

FOB Price: 9,800.00 - 15,800.00 USD/Set
Supply Ability: 30 Set/Sets per Month
Shipping: by sea from ningbo port
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: South America, Africa, Mid East, Eastern Asia
Place of Origin: Zhejiang in China
Packaging Details: wooden case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 year
  • Certification: CE, SGS, ISO9001
  • Weight: 1300kgs
  • Dimension(L*W*H): 1800*1600*1700mm
  • Power(W): 15kw
  • Voltage: 220v
  • Model Number: KM-200
  • Brand Name: METO
  • Automatic: Yes
  • Blow Moulding Type: Injection Blow Moulding
  • Plastic Processed: PET
  • Application: Bottle
  • Condition: New

Specifications

2 cavity full automatic stretch injection blow moulding machine

Summary

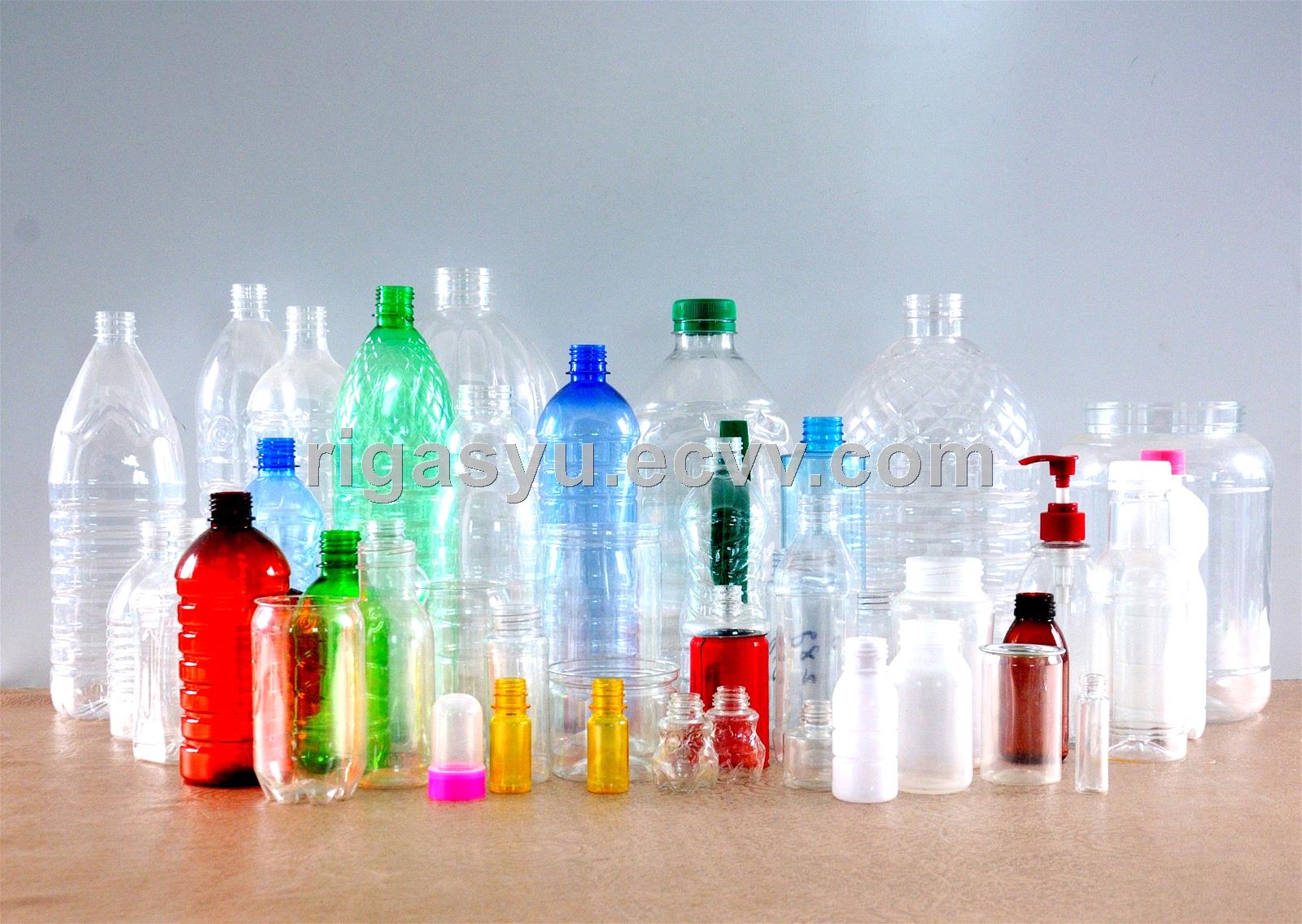

Kemo series Full Automatic Stretch Blow Molding Machine, from one cavity to six, produce the container max to 2L, used for the series kinds of PET bottle, such as the edible oil bottle, medicinal bottle, drinking bottle, cosmetic jars, Wild-mouth bottle and so on.



Feature

High capacity, low breakage rate, the output is from 2000 to 6000 BPH, the bottle scrap rate lower than 0.1%.

Full automatic to load the preform with the auto feeder, save the labor effectively.

Computer control system, with safe and stable performance.

Simple and safe operation, convenient maintenance.

Main parts of the machine use the imported good quality brand, like the FESTO, Omron, Mitsubishi and so on.

Machine is driven by cylinder, greatly reducing environmental pollution.

Each program adopt safe self-locking device, with the function of automatic detection diagnosis fault.

Perfect after-sales service.

The production process ( PET Stretch Blow Technology)



Preform Injection Molding

Preform Auto Feeder

heating the preform(temperature adjustment)

Stretch Blowing

Take out the bottle

 Inspection



Pre-blow —Stretch—Blowing—Molding.

ITEM

KM-200

Theoretical output

2000

Max.container volume

2L

Max.neck diameter

45MM

Max.container diameter

120MM

Max.container height

325MM

Number of cavity

2

Number of lamp

24

Max.heating power

15KW

Installation power

40KW

Actual power consumption

8KW

Operating low pressure

0.7-1.0Mpa

Low pressure consuming

1800L/min

Blowing pressure

2.5-3.5Mpa

High pressure consuming

3500L/min

Operating pressure

0.3-0.5Mpa

Temperature

10 degree

Flow rater

40 L/min

Machine dimension

2.3×1.6×1.8

Machine weight

2200Kg
