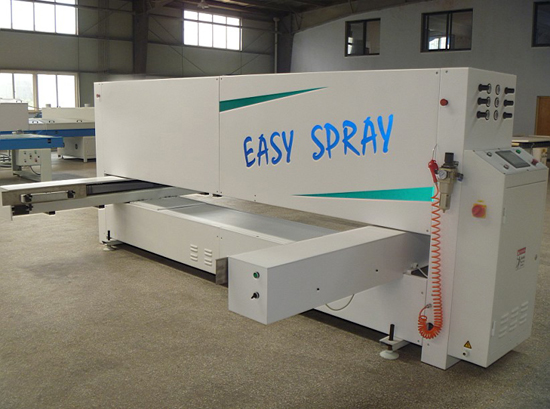

Automatic Wood Door Painting Machine YICH-DPSM2500A

FOB Price:	10000.00 - 15000.00 USD/Set
Supply Ability:	50 Set(s) per Month
Shipping:	with in 30 days after receiving the advance payment
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Soft plasctic foam

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: YICH
Condition: New
Certification: CE/ISO
Voltage: Customerize
Model Number: YICH-DPSM2500A
color: white
max. painting width: 1300mm
max. painting thickness: 80mm
max.weight of work piece: 70kg
daily output: 150-200 pcs
paint can spray: PU, UV, NC,AC,PE,Water Based Paint

Specifications

Machine Features:

General Description
1. this machine is specially used to spray sealer, primer, finish coat on door panels to make the interior doors.

2. It can no only spray the varnish paint & color paint, but also can spray the color ink.

3. this machine can paint about 150-200 pieces of interior doors per shaft(8 working hour /shaft)

4. When working, this machine only need 2 general workers to load the door panel and discharge the painted

doors

5. this machine should be located in a dust free room with the air inlet & exhaust system.

6. with a paint shaft assistance, this machine can also paint the door frames, furniture panel etc.

7. this machine can spray the PU,UV, Water base paint, NC, PE, AC paint, etc, Also can spray the laminating glue

for PVC or wood veneer laminating doors

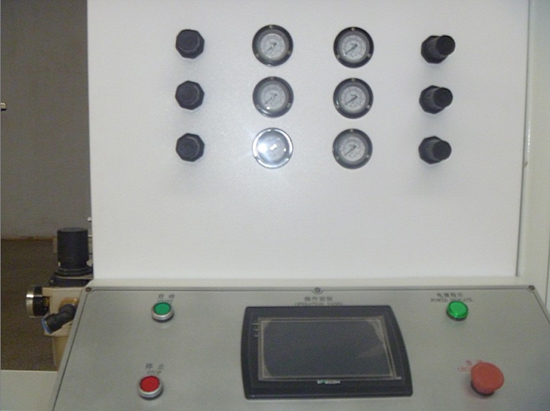

8. Before painting 1 kind of door panel, we pre-set the spray parameters of the door, such as width,height,

thickness into the PLC through the LCD Touch Screen, when finish setting and saving, then the PLC will

generate the spraying program for this kind door panel, and will store this spraying program into the data base

of PLC. Then in the furniture, if you want to paint this kind door panel, just need to take this spraying program

and run, no need re-set. When painting, after loading the door panel, the worker just need to press the start

button on the feeding part is ok.

9. this machine can paint 2 surface+4 sides of the door panel at 1 time, about take 1.5-2minute.

10.the painting shaft adopts reciprocating moving

Electronic System:

Name of Electronic Element	Brand
PLC Control System	PANASONIC
LCD Touch Screen	DELTA
Transducer	DELTA
Servo Motor	PANASONIC
Servo Driver	PANASONIC
Transformer	TECO
Relay	OMRON
Contactor	SCHNEIDER
Air Switch	CHNT

Spraying System:

Name of Spraying Element	Brand

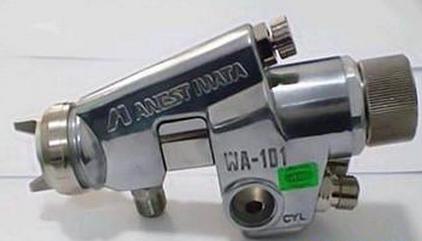

Low Pressure Air Spraying Gun	IWATA
Diaphragm Pump	BINTST

Conveying System:

1.the conveying system of this machine adopts chain clamping conveying system, it can save the space, and no

need to be cleaned every day like the belt conveyor, and save much paint thinner.
2. When the workers load the panel on the conveying chain, no need to go to the LCD to set the running state, he

Just need to press the run button on the feeding part, then the conveying chain will conveying the work piece

Automatically.

Spraying head & its moving system:

1.the spraying head is driven by the servo motor & its driving system. the movement is more precise, and

quickly.

2. the angles of the spraying guns can be adjust, so it can spray the edges well by adjust spraying angles

3. the paint flow and the atomization can be adjust manual on the spraying guns.

4. It is very easy to connect the paint supply pump to the machine

Technical Parameters:

Model	YICH-DPSM2500A
Size of work piece can be paint	2400120080
Max. Weight of work piece can be paint	80kg
Feeding Speed	0-8m/min
Spraying guns moving speed	0-100m/min
Air Pressure	0.5-0.8Mpa
Total power	1.5 KW
Overall dimension	450038001800mm
Weight	1200 kg
