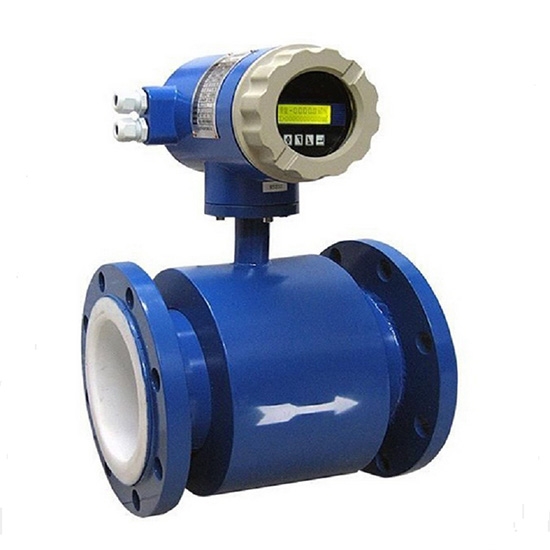

electromagnetic flowmeter
| FOB Price: | 490.00 - 500.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 30days |
| Payment Terms: | L/C, T/T, Other, paypal |
Related products from verified members
| Export Markets: | North America, Southeast Asia |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | as required |
Quick Details
- Model Number: F-L-53M
- Brand Name: Abeisi
Specifications
|
Nominal Diameter(mm) Customized |
PTFEpipeliner:DN10～DN600 Rubberpipeliner:DN40～DN1200 |
| Flow Direction | positive,negative,netflow |
| Measure Range Ratio | 150:01:00 |
| Repeatability error | ±0.1%Measuredvalue |
| Accuracy Class | PipelineStyle:±0.5%,±1.0% |
| Medium temperature measured | Generalrubberliner:－20～＋60℃ |
| High-temperaturerubberliner:－20～＋90℃ | |
| PTEFliner:－30～＋100℃ | |
| High-temperaturePTEFliner:－20～＋180℃ | |
|
Rated working pressure (High pressure customizable) |
DN6－DN80: ≤1.6MPa |
| DN100－DN250: ≤1.0MPa | |
| DN300－DN1200: ≤0.6MPa | |
| Flow rate range | 0.1－15m/s |
| Conductivity range | Fluidconductivitymeasured≥5μs/cm |
| Current output | Loadresistance0～10mA: 0～1.5kΩ4～200mA: 0～750kΩ |
| Digital Frequency Output | 1～5000HZ |
| ExternalPower≤35V | |
| Collectorcurrent≤250mA | |
| Power supply | AC220VorDC24V |
| Straight length | Upstream≥5DN, downstream≥2DN |
| Connection mode | Flangejoint |
| Explosion-proof class | mdIIBT4 |
| Protection class | IP65,uptoIP68 |
| Ambient Temperature | －25～＋60℃ |
| Relative Humidity | 5%～95% |
| Total power consumption |
＜20W |
