China Pioneer Hydraulic Winch Hydraulic Motor Co., Ltd.
China Manufacturer with main products: Hydraulic Winch, Hoisting Winch, Hydraulic Motor, Piston Motor, Drilling Rig Hydraulic Winch, Wire Line Winch, Planetary Gearbox Brevini &... |
20 Ton Hydraulic Winch Marine Winch
| Supply Ability: | 500 Set(s) per Month |
|---|---|
| Shipping: | delivery time 10 days |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | plywood case |
Quick Details
- Capacity: 1-100 ton
- Application: Boat
- Power Source: Hydraulic
- Brand Name: kemercathy
- Contact: Cathy
- Model Number: GW series
- Driven by: high torque low speed hydraulic motor
- Applied for: drilling rig, crane, marine, dredger, etc.
- Contact: Cathy
- Skype: kemercathy
Specifications
Hydraulic winch manufacturer, hydraulic winches, hoisting winch, marine winch, drilling rig winch, crane winch, power winch, hydraulic operated winch, dredger winch
Company introduction
We are the China-based manufacturer of hydraulic winch (hydraulic winch, hoisting winch, wireline winch, cargo winch, drilling rig winch, crane winch, marine winch, dredger winch, hydraulic winches, compact winch, free fall hydraulic winch) with more than 10 years experience in designing and manufacturing different types of hydraulic winches fro widely application.
Product introduction
for the winch in the picture, it is our GW series hydraulic winches (hydraulic winch, hoisting winch, wireline winch, drilling rig winch, crane winch, dredger winch), which are widely used in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery.
Features:
1. One-or two-stage planetary gearboxes, smooth operation and reasonable structure.
2. Normally closed friction type brake, high braking torque, safe and reliable operating.
3. Small volume, compact structure and high transmission efficiency.
4. Radial piston hydraulic motor with long life operating.
5. Mounting frame is available on request.
6. Balance valve, shuttle valve, limit switch and other accessories are also available on request.
Specification:
for the following specification, it is for your reference, we can also design and manufacture the winch with pull force up to 60 ton based on your requirements.
| Model | the 1st layer | Diameter of reel bottom (mm) | Diameter of rope (mm) | Capacity of rope (mm) | |
| Pull Force (KN) | Rope Speed (m/min) | ||||
| GW2.5-10-60-10-ZP | 10 | 0-30 | 238 | 10 | C2.5-5 |
| GW2.5-20-50-12-ZP | 20 | 0-30 | 238 | 12 | C2.5-5.5 |
| GW3-30-65-15-ZP | 30 | 0-35 | 305 | 15 | C3-5 |
| GW3-40-60-16-ZP | 40 | 0-35 | 305 | 16 | C3-5.5 |
| GW4-50-70-20-ZP | 50 | 0-40 | 380 | 20 | C4-5 |
| GW4-60-68-21.5-ZP | 60 | 0-40 | 380 | 21.5 | C4-5.5 |
| GW5-80-100-24-ZP | 80 | 0-40 | 470 | 24 | C5-5 |
| GW5-100-90-28-ZP | 100 | 0-40 | 470 | 28 | C5-5.5 |
| GW6-120-176-30-ZP | 120 | 0-30 | 600 | 30 | C6-5.5 |
| GW6-150-150-34-ZP | 150 | 0-25 | 600 | 34 | C6-5.5 |

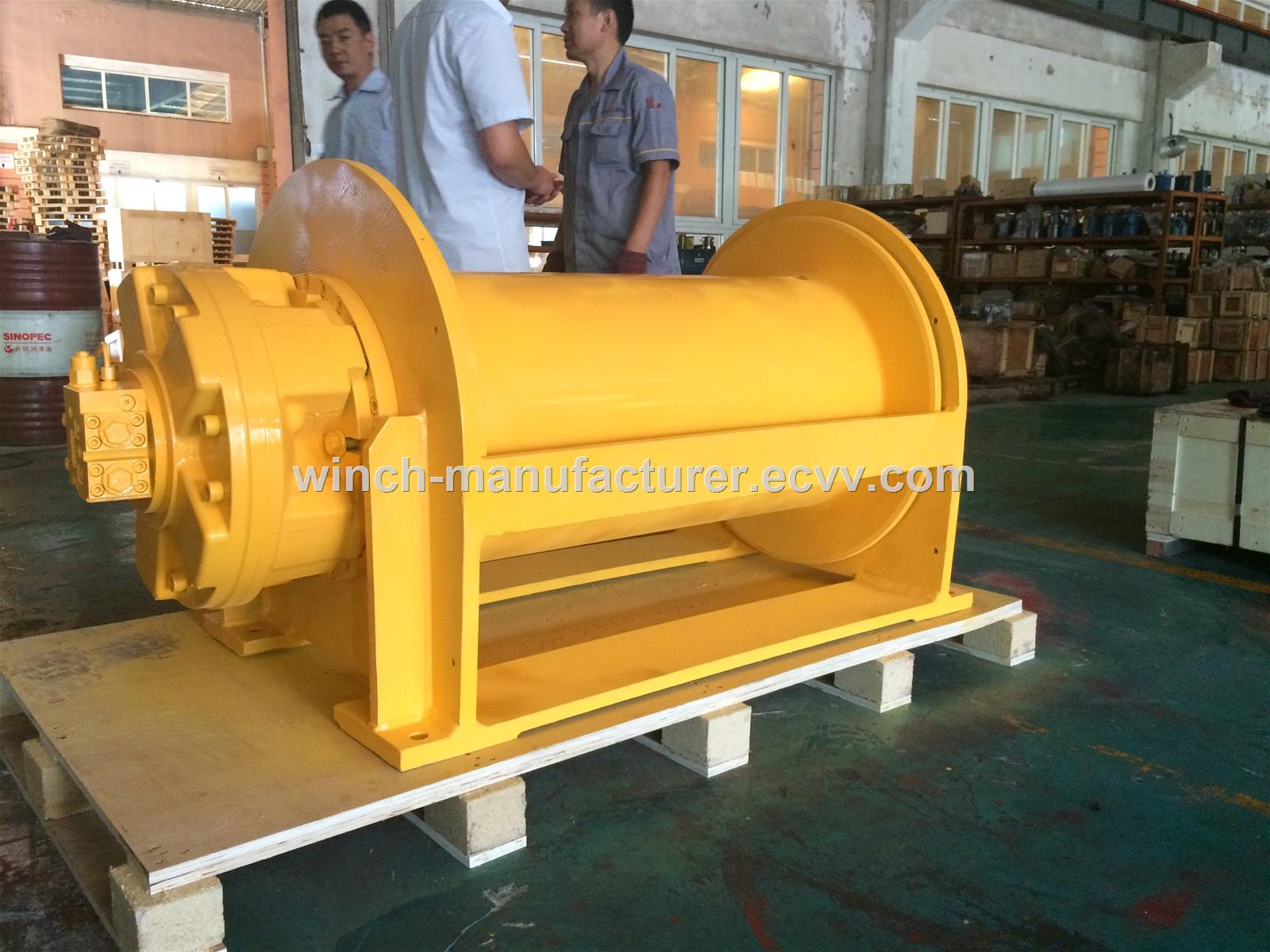

Picture for reference:
