Microwave sensor round 20w IP65 LED ceiling Light

FOB Price: 18.00 - 22.00 USD/Piece
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Item Type: Ceiling Lights
  • Light Source: LED
  • Model Number: BKD20-270PC
  • Brand Name: Cheerglory
  • Certification: CE,RoHS
  • IP Rating: IP65
  • Lamp Body Material: Aluminum
  • Working Lifetime(Hour): 50000
  • Color Temperature(CCT): Pure White
  • CRI (Ra>): 70
  • Lamp Luminous Efficiency(lm/w): 60
  • Lamp Luminous Flux(lm): 1200
  • Lamp Power(W): 20
  • Input Voltage(V): 85-265
  • Install Style: Surface Mounted
  • LED Light Source: SMD
  • Power: 20w
  • Material: AL+ PC
  • Microwave sensor: Yes
  • Warranty: 3 years

Specifications

Microwave sensor round 20w IP65 LED ceiling Light

Product Picture:





Microwave sensor round 20w IP65 LED ceiling Light

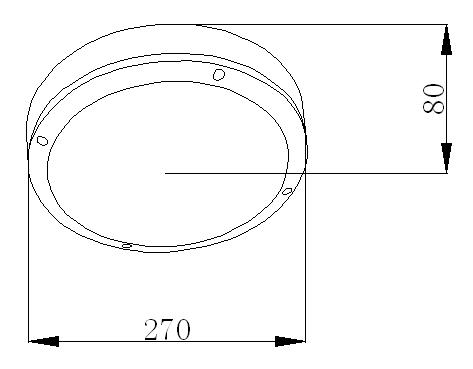

3, Product Size:





Microwave sensor round 20w IP65 LED ceiling Light





4, Product Parameters:

4.1, Electricity Parameters:

NO

Items

Parameters

1

Input Voltage

90-265V 42-63HZ

2

Input Current

0.114A(230V)

3

Power

20W

4

Output Voltage

30V

5

Output Current

0.67A

6

Power Factor

>0.9PF

7

Luminous Efficiency

≥85%

4.2, Optical Parameters:

NO

Items

Parameters

1

Beam angel (H,V)

115°

2

Peak Light Intensity

514cd

3

Luminous Flux

1000/1500Lm

4

Color Rendering Index

75Ra

5

Color Temperature

2800-3200k /4000-4500k/5500-6000k

4.3, Physical Parameters:

NO

Items

Parameters

1

Working temperature

               -40° 60°

2

IP range

IP65

3

N.W

1.4Kg

4

Length

270mm

5

Width

270mm

6

Height

80mm

5, Light Intensity Distribution Curve:

Microwave sensor round 20w IP65 LED ceiling Light

6, Packing:



No

part

size

parameter


1

Inner Packing

Box Size

280*280*95mm



Weight

1.52Kg

2

Outer packing

(5/case)

Box Size

465*285*285mm



Total weight

8.4Kg



7. Attentions:



7.1, Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*16mm screw to fix the lamp base and lamp cover.

7.2, Installation methods : with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base ).

7.3, when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body ,  screw in the expansion bolt . installation over . see the picture :

 Microwave sensor round 20w IP65 LED ceiling LightMicrowave sensor round 20w IP65 LED ceiling Light
