Hoisting Machine and Tower Crane Application Flex Rubber Cable
| FOB Price: | 1.00 - 5.00 USD/Meter |
|---|---|
| Supply Ability: | 50 Kilometer(s) per Day |
| Shipping: | by ship |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | 100metre/roll wooden drum |
Quick Details
- Jacket: Rubber
- Conductor Material: Copper
- Application: Industrial
- Type: Low Voltage
- Insulation Material: Rubber
- Model Number: Flex Rubber Cable
- Brand Name: JINHE
Specifications
Hoisting Machine and Tower Crane Application Flex Rubber Cable
Application:
Very flexible cable for use on cable tender systems, festooned cable applications, pendant cable drops, overhead bridge cranes, warehouse stacking cranes, car dumper, poke car, moving trucking, car puller, reel trailer, crane, or any tough industrial application that requires both strength and flexibility. Approved for use in cable trays, in raceways supported by a messenger wire, in open air, and for direct burial applications.
Suitable for AC rated voltage 300/500V,450/750V,And the following tower cranes or other moving electrical equipment power control.

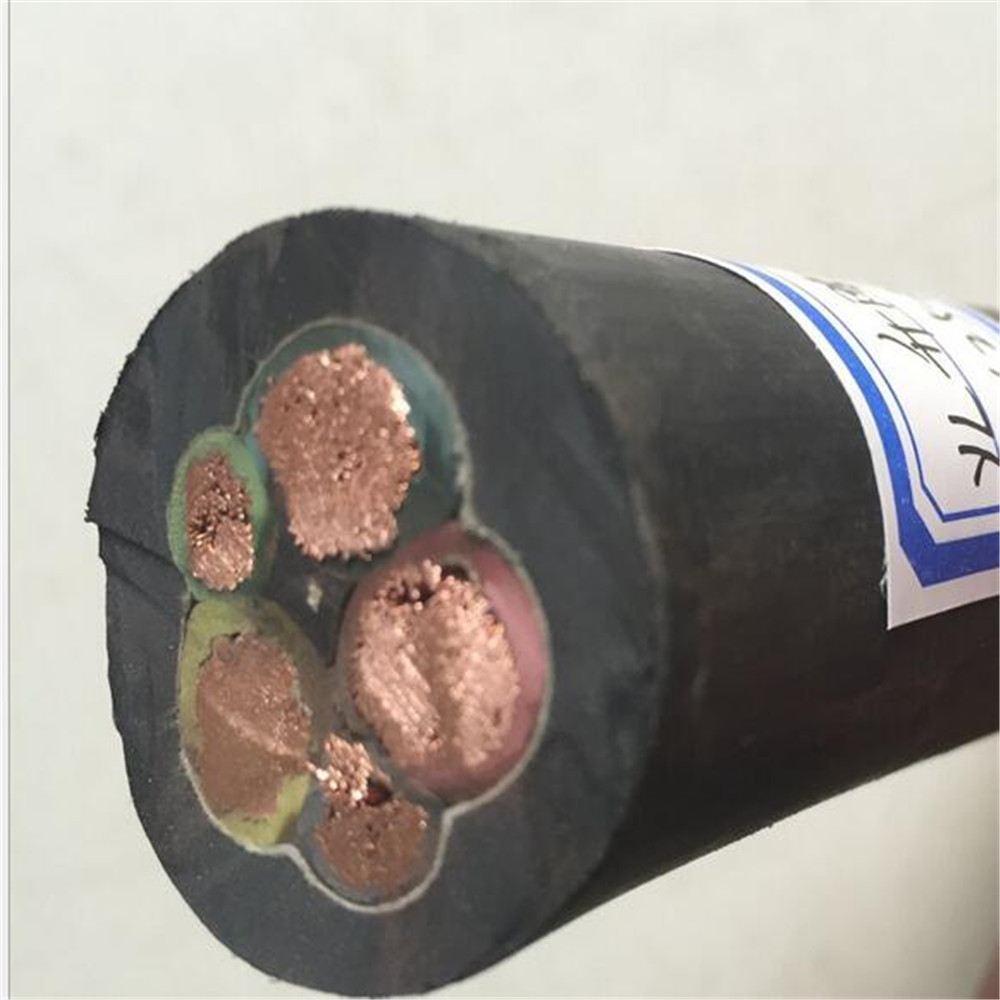

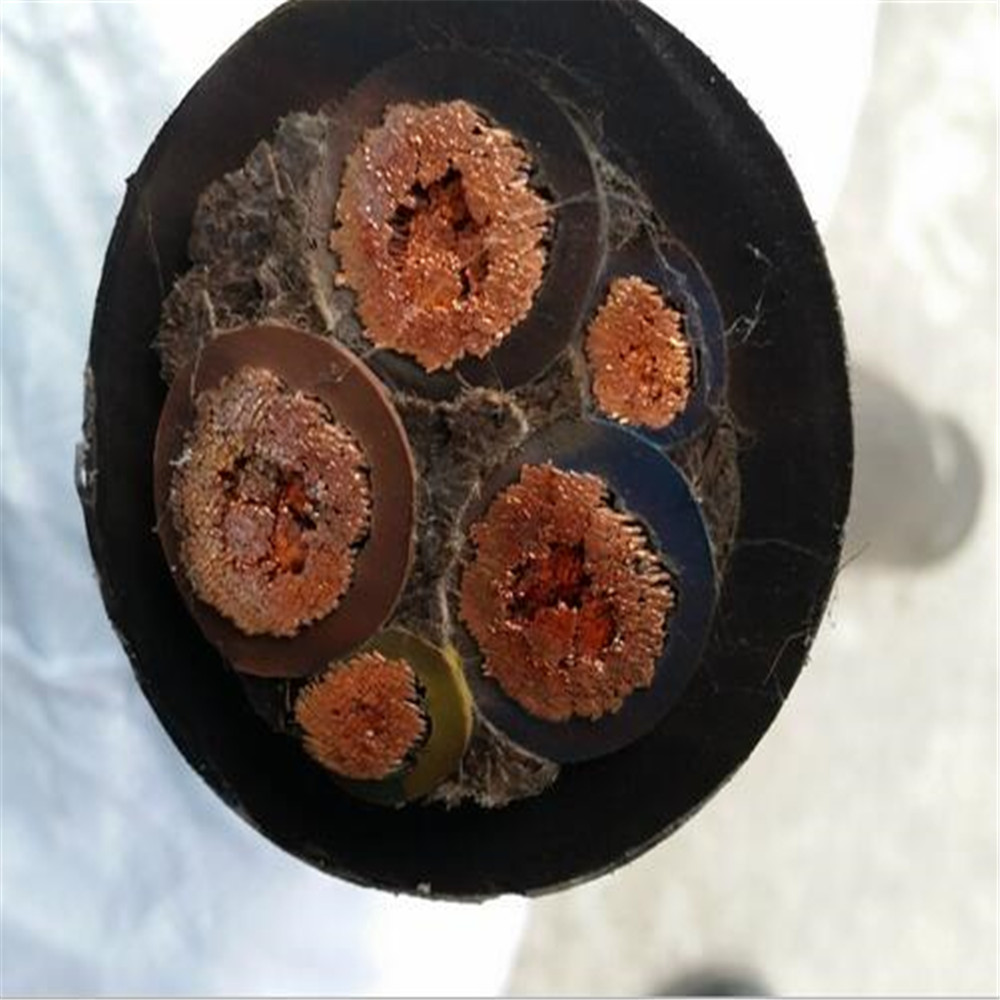

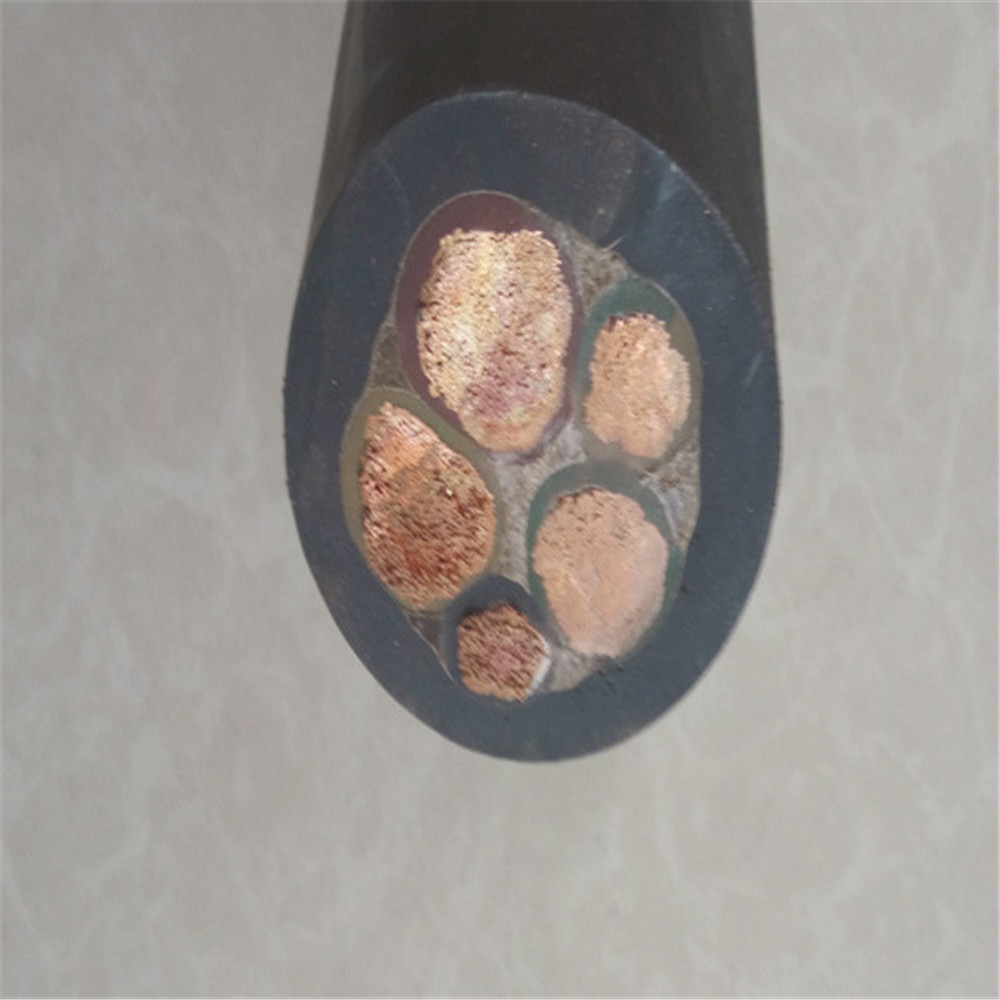

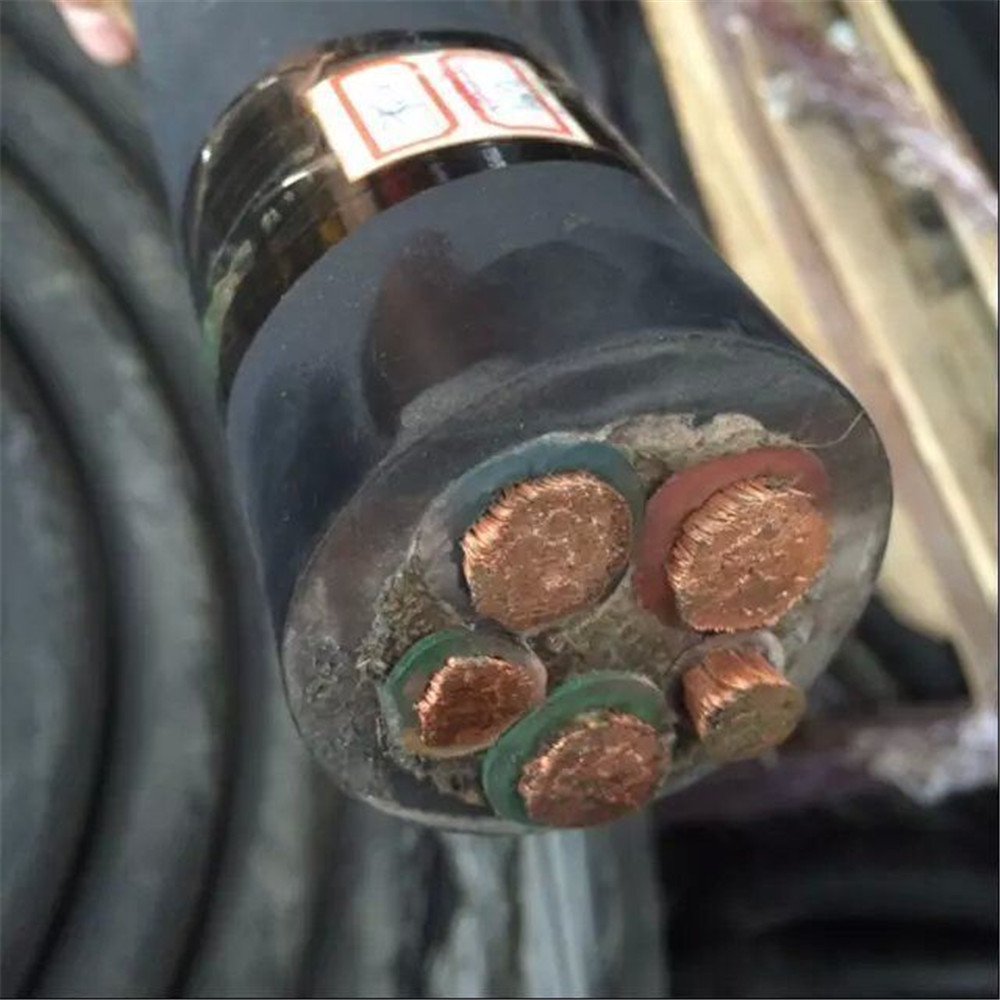

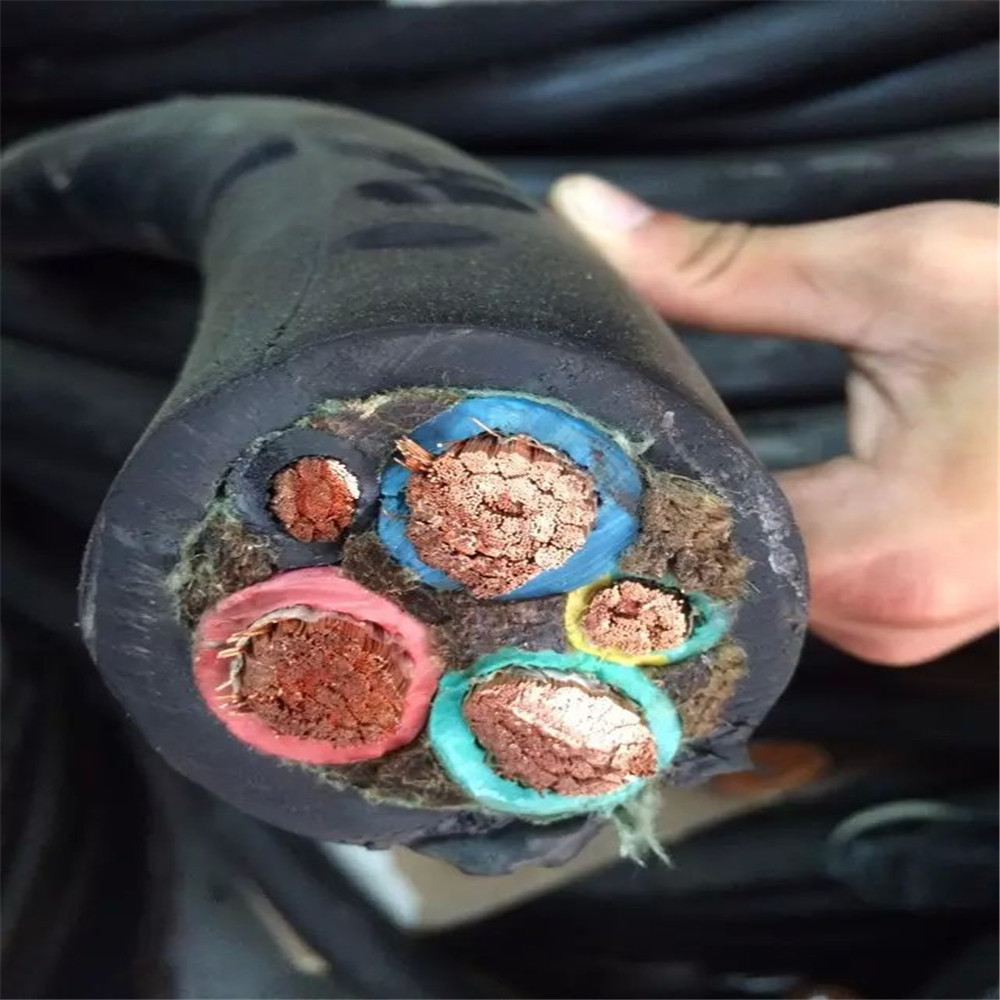

Construction
Conductor:Class 5,fine copper wire strands manufactured to IEC 60228 (previously BS6360)
Insulation:EPR (Ethylene Propylene Rubber)
Sheath:Black neoprene (PCP) outer sheath to BS7919:2001
Conductor Identification
Single Core:Black
Two Core:Brown and blue
Three Core:Brown, blue and green/yellow
Four Core:Brown, black, grey and green/yellow
Five Core:Brown, blue, black, grey and green/yellow
Technical Information
Rated Voltage:450/750V
Test Voltage:3000V
Temperature Range:-25°C to +85°C
Ambient Temperature:30° C
Operating Temperature:60°C
Minimum Bending Radius:6 x ? for cables not exceeding 25mm
Static:8 x ? for cables exceeding 25mm
Flexing:15 x ?
|
Rubber Insulated and Rubber Sheathed Cable |
||||
|
Conductor Section-area (mm2) |
Nominal thickness of insulation (mm) |
Nominal thickness of sheath(mm) |
Overall Diameter (mm) |
Max. DC resistance at 20°C(Ω/km) |
|
1x1.5 |
0.8 |
5.9 |
50 |
13.3 |
|
1x2.5 |
0.9 |
6.5 |
65 |
7.98 |
|
1x4 |
1 |
7.4 |
89 |
4.95 |
|
1x6 |
1 |
8.1 |
115 |
3.3 |
|
1x10 |
1.2 |
10.4 |
190 |
1.91 |
|
1x16 |
1.2 |
11.6 |
259 |
1.21 |
|
1x25 |
1.4 |
13.7 |
375 |
0.78 |
|
1x35 |
1.4 |
15.4 |
492 |
0.554 |
|
1x50 |
1.6 |
17.7 |
675 |
0.386 |
|
1x70 |
1.6 |
20 |
908 |
0.272 |
|
1x95 |
1.8 |
22.1 |
1171 |
0.206 |
|
1x120 |
1.8 |
24.5 |
1445 |
0.161 |
|
1x150 |
2 |
26.9 |
1783 |
0.129 |
|
1x185 |
2.2 |
28.9 |
2125 |
0.106 |
|
1x240 |
2.4 |
32.6 |
2733 |
0.0801 |
|
1x300 |
2.6 |
36.5 |
3348 |
0.0641 |
|
1x400 |
2.8 |
40.4 |
4293 |
0.0486 |
|
1x500 |
3 |
42.6 |
5262 |
0.0384 |
|
1x630 |
3 |
47.2 |
6790 |
0.0287 |
