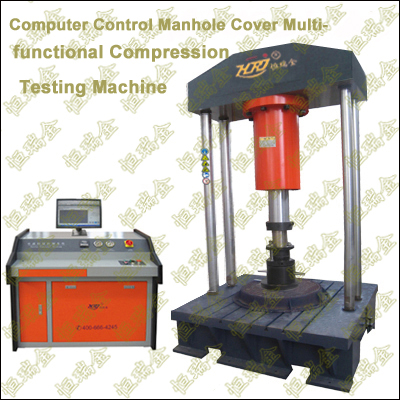

Computer Control Multifuntion Manhole Cover Compression Testine Machine
| FOB Price: | 1.00 - 2.00 USD/Set |
|---|---|
| Supply Ability: | 360 Set(s) per Year |
| Shipping: | Qingdao |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden case |
Quick Details
- Usage: Compression Testing Machine
- Power: Hydraulic
- Model Number: JAW-2000
- Brand Name: HRJ
Specifications
Introduction
1)used for metal wellshutter,steel fiber reinforced concrete manhole
Cover,recycled resin composite material manhole cover,organic composite manhole
Cover,inorganic composite manhole cover,heavy manhole cover, ordinary
Covers,light-weight cover, round manhole cover,square manhole cover,inorganic
Glass-fiber reinforced plastic manhole cover,BMC mold plastic cover,rain
Perforated strainer,drain cover,water grating covers, etc.
2) used for compression and bending test for concrete Member, tubular piles, building materials, etc.
3) used for hydraulic jack test, flaring and flanging tests of metal tubes, seamless steel tubes, nonferrous tubes, etc.
4) used for compression test for square, cylinder and
Profiles members and super high strength concretes.
Standards
Gully tops and manhole tops for vehicular and pedestrian areas;
→Part1: Definitions, classification, general principles of design, performance requirements and test methods;
→Part2: Gully tops and manhole tops made of cast iron;
→Part3: Gully tops and manhole tops made of steel or aluminium alloys;
→Part4: Gully tops and manhole tops made of steel reinforced concrete;
→Part5: Gully tops and manhole tops made of composite materials;
→Part6: Gully tops and manhole tops made of polypropylene (PP), polyethylene (PE) or unplasticized poly (vinyl chloride) (PVC-U);
Technical Specification
1) max. Static test force: 2000kN
2) relative error of Indicating value: ±1%
3) resolution of test Force: 1/300000
4) constant stress control Range: 2～60 N/mm2·S-1
5) constant strain control range: 0.00025/s～0.0025/s
6) measuring range of Deformation: 0-500mm
6) deformatmion resolution: 0.01mm
7) compression space: 0-500mm
8) test space (L*W): 1400*1500mm, T-slot
9) spherical pressure Platen: Φ356x40mm
10) piston stroke: 0-400mm
11) dimension of loading Frame (L*W*H): 1900x1600x2600mm
12) dimension of console
(L*W*H): 1160x800x940mm
13)
Working voltage: 380V/50Hz
14) power: 3.0kW
