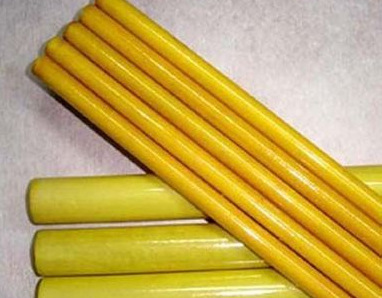

Fiber Glass Rod

FOB Price:	10.00 - 20.00 USD/Acre
Shipping:	30days or as quantities demanding
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Standard seaworthy wooden cases, pallets appropriate for export 1.Standard exportable fumigated wood

Quick Details

Tensile Strength: 120KN
Rated Voltage: 45KV
Application: High Voltage
Material: Fiberglass
Type: Insulator
Model Number: Junai
Brand Name: Junai

Specifications

An epoxy resin fibreglass rods are constructed from ECR glass filaments impregnated with epoxy resin and produced by using a pultrusion process. Fiber glass rod has a high mechanical resistance utilizing ECR glass fibre reinforcement and the characteristic of a high temperature vitreous transition. Fiber glass rod is the main part of composite insulators.

Glass fiber rods physical and mechanical properties:

Specifications Name	Units	Value
Density	g/cm3	＞2.1
Water absorption	%	＜0.10
Tensile strength	Mpa	≥1100
Flexural strength	Mpa	≥900
Fuchsine test	Min	＞15
Water diffusion test	mA	＜1
Industrial frequency withstand voltage in transformer oil (10mm)	Kv/cm	≥50
