Beijing Sdi Science&Technology Co., Ltd.
China Manufacturer with main products: Fizoptika Series, Inertial Measurement Unit (Imu), Novatel OEM Board, Gps/Ins System, Vehicle Multiple Sensors, North Founder, Fiber Optic... |

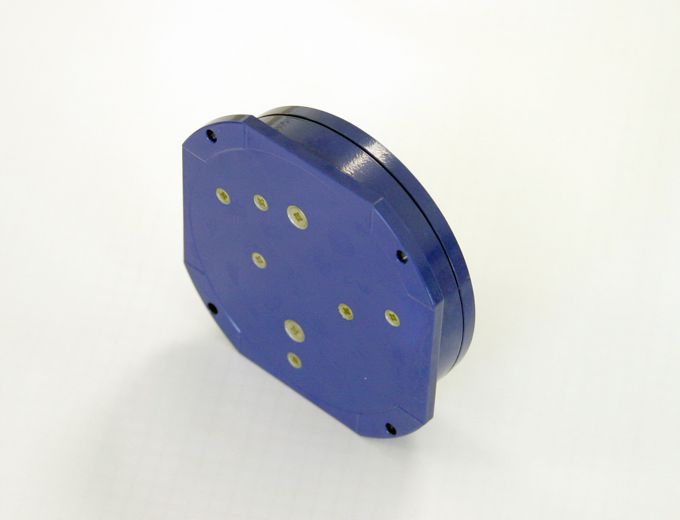

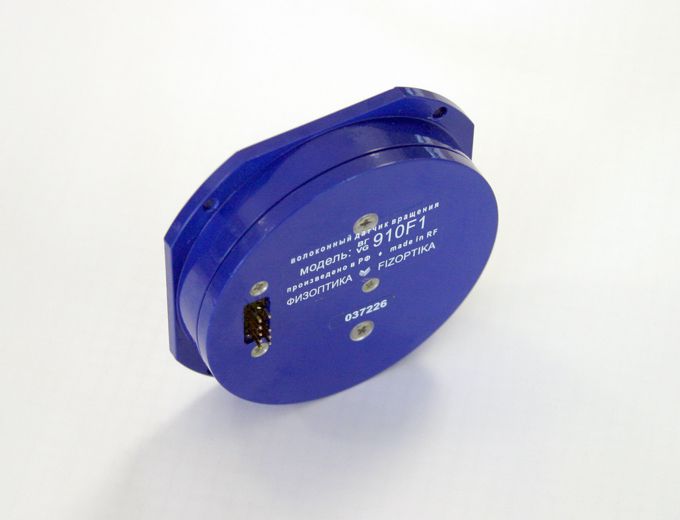

FOG Fiber optic gyroscope VG910F1 from Fizoptika
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|---|
| Shipping: | 6-8 weeks |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Russian Federation |
| Packaging Details: | world standard export packing |
Quick Details
- Model Number: VG910F1
- Brand Name: Fizoptika
Specifications
Fiber optic gyroscope VG 910F1 is rugged modification of VG 910F
PHYSICAL PARAMETERS
|
1. |
Ω - sensing axis, 90°± 0.5° to the reference plane |
|
2. |
Dissipation - 1 W |
|
3. |
Weight - 150 gram (180 gram max) |
|
4. |
Volume - 0.1 litre |
|
5. |
Housing material - aluminum alloy |
|
6. |
Housing protection - powder coating |
|
7. |
Tolerances per ISO 2768-m |
|
8. |
Ingress protection class - IP67 |
Specification
MAIN PARAMETERS ( typical values )
|
? Rate range |
150 deg/s |
|
Scale Factor (SF) |
7 mV/deg/s |
|
Frequency range |
0... 0.45 kHz |
|
Angle random walk |
0.04 deg /√ h |
|
Bias stability, RMS |
2 deg/h |
|
SF stability, RMS |
0.1 % |
|
Readiness time |
0.1 s |
ENVIRONMENT
|
Temperature operating |
-40°C ... +70°C |
|
Temperature endurance, 2 hr |
-55°C... +85°C |
|
Vibration, RMS |
18g,20Hz...2kHz |
|
Shocks |
450g, 3 ms |
|
Acceleration |
5 g |
RELIABILITY
|
?? MTBF |
95000 hours (20o С, predicted) |
|
?? Lifetime (predicted) |
15 years |
|
? Precision class - 4 |
|
?? Estimated for low humidity |
RECOMMENDATIONS AND PRECAUTIONS
|
1. |
Do not deform housing |
|
2. |
Fragile components inside - no shocks, no drop |
|
3. |
Treat as electrostatic sensitive unit |
|
4. |
Is designed to be mounted inside water protected equipment |
|
5. |
Increased humidity shortens essentially lifetime |
|
6. |
Mounting surface must be grounded |
|
7. |
Power must be off during connecting |
|
8. |
Soldering to contacts - by low-temperature solder |
