Quick Details
- Model Number: VG 910H
- Brand Name: Fizoptika
Specifications

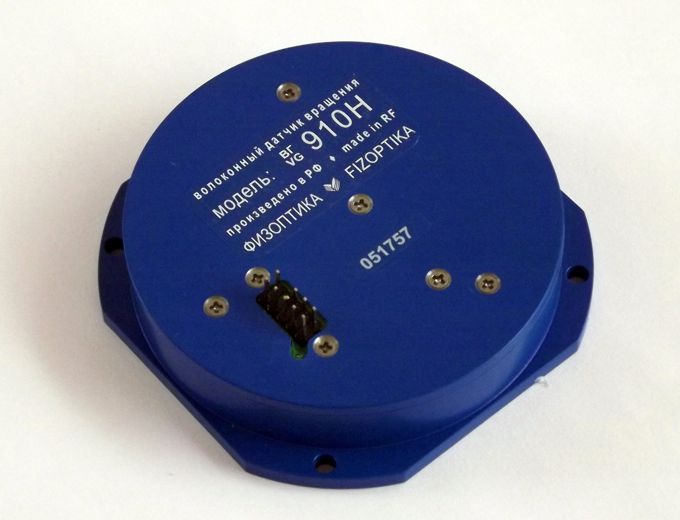

VG 910H is fiber optic gyroscope with high endurance and extended temperature range
PHYSICAL PARAMETERS
|
1. |
Ω - sensing axis, 90°± 0.5° to the reference plane |
|
2. |
Dissipation - 1 W |
|
3. |
Weight - 110 gram (150 gram max) |
|
4. |
Volume - 0.1 litre |
|
5. |
Housing material - aluminum alloy |
|
6. |
Housing protection - powder coating |
|
7. |
Tolerances per ISO 2768-m |
|
8. |
Ingress protection class - IP67 |
Specification
MAIN PARAMETERS ( typical values )
|
? Rate range |
160 deg/s |
|
Scale Factor (SF) |
8.4 mV/deg/s |
|
Frequency range |
0... 1 kHz |
|
Angle random walk |
0.015 deg /√ h |
|
Bias stability, RMS |
3 deg/h |
|
SF stability, RMS |
0.1 % |
|
Readiness time |
0.02 s |
ENVIRONMENT
|
Temperature operating |
-40°C ... +75°C |
|
Temperature endurance, 2hr |
-55°C... +85°C |
|
Vibration, RMS |
12g, 20Hz...2kHz |
|
Shocks |
500g, 1 ms |
|
Acceleration |
5g |
RELIABILITY
|
MTBF |
60000 hours (20o С, predicted) |
|
?? Lifetime (predicted) |
15 years |
|
? Precision class - 4 |
|
?? Estimated for low humidity |
RECOMMENDATIONS AND PRECAUTIONS
|
1. |
Do not deform housing |
|
2. |
Fragile components inside - no shocks, no drop |
|
3. |
Treat as electrostatic sensitive unit |
|
4. |
Is designed to be mounted inside water protected equipment |
|
5. |
Increased humidity shortens essentially lifetime |
|
6. |
Mounting surface must be grounded |
|
7. |
Power must be off during connecting |
|
8. |
Soldering to contacts - by low-temperature solder |
