>Products Catalog > CCTV Mini Camera > 420TVL SONY CCD Pinhole Mini Color Camera,Low-Light Pinhole Camera With Audio

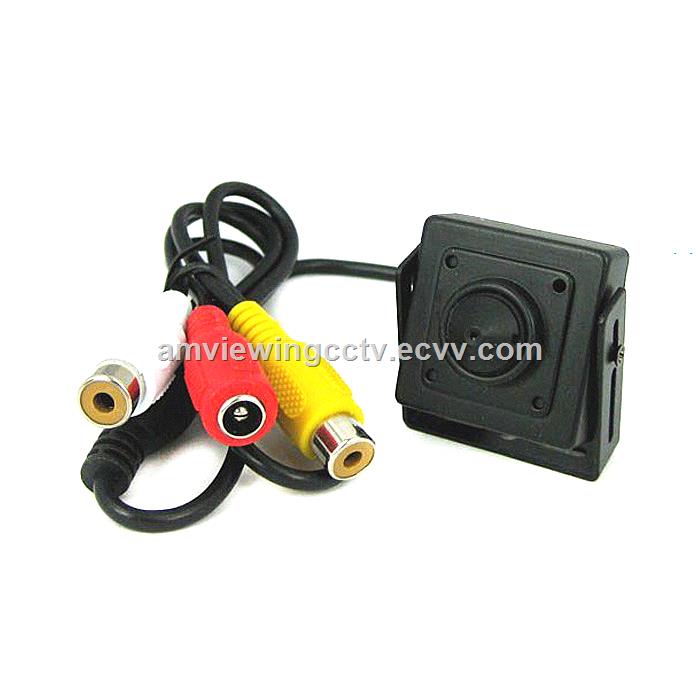

420TVL SONY CCD Pinhole Mini Color Camera,Low-Light Pinhole Camera With Audio
| FOB Price: | 1.00 - 99.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece(s) per Month |
| Shipping: | 2-6 work days for samples;7-20 work days for bulk order |
| Payment Terms: | T/T, Western Union, PayPal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Color Box,Neutral Packing,Export Carton |
Quick Details
- Special Features: pinhole lens
- Technology: Pinhole
- Sensor: CCD
- Style: Mini Camera
- Type: Analog Camera
- Model Number: AV-M134CEP4
- Brand Name: Miyeaeye
- Resolution: 420tvl
- lens: 3.7mm pinhole lens
Specifications
420TVL SONY CCD Pinhole Mini Color
Camera With Audio
Lens in option:
Specification:
Model: AV-M134CEP4
1/3"SONY CCD;
420 TV Lines, 0.01Lux;
Size: 34*34mm ; ( 20*20mm/25*25mm/30*30mm/34*34mm/40*40mm available; )
Metal Casing;
420TVL, 480TVL, 550TVL, 650TVL, 700TVL available; 650TVL, 700TVL with/without OSD Menu Control optioanl;
|
Model |
AV-M134CEP4 |
AV-M134CDNP4 |
AV-M334CP4 |
|
Image Device |
1/3" Sony CCD |
1/3" Sony CCD |
1/3" Sharp CCD |
|
Horizontal Resolution |
420TVL |
||
|
Minimum Illumination |
0.01Lux |
0.5(D)/0.05(N)Lux |
0.5Lux |
|
Effective Pixels |
PAL: 500(H)*582(V) NTSC: 510(H)*492(V) |
||
|
Scanning System |
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
||
|
S/N Ratio |
More Than 48dB(AGC off) |
||
|
Electronic Shutter |
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto |
||
|
Gamma Characteristic |
0.45 |
||
|
White Balance |
Auto |
||
|
Lens Option |
3.7mm pinhole lens; (board lens, wide angle lens, vari-focal lens available) |
||
|
BLC |
Auto |
||
|
AGC |
Auto |
||
|
Sync System |
Internal Synchronization |
||
|
Video output |
1Vp-p 75 Oms , Negative |
||
|
Power Consumption |
12V±10%DC, 50mA |
||
|
Operation Temperature |
-10℃ ~ + 50℃, RH 95% Max |
||
|
Storage Temperature |
-20℃ ~ + 60℃, RH 95% Max |
||
|
Housing |
Black |
||
|
Dimension |
34x34mm |
||
|
Weight |
30g |
||
|
Supplied Accessories |
User manual, cable, screw, bracket |
||
