Home >Products Catalog > CCTV Mini Camera > 420TVL Mini Hidden Infrared Camera,Night Vision Hidden Camera with Audio

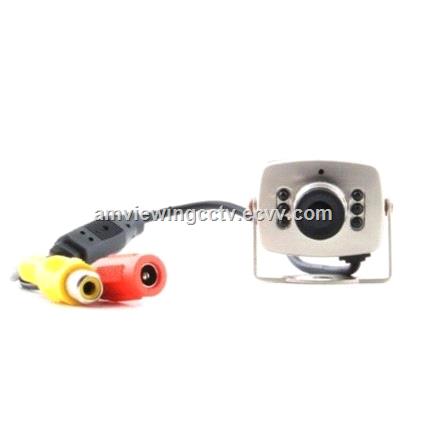

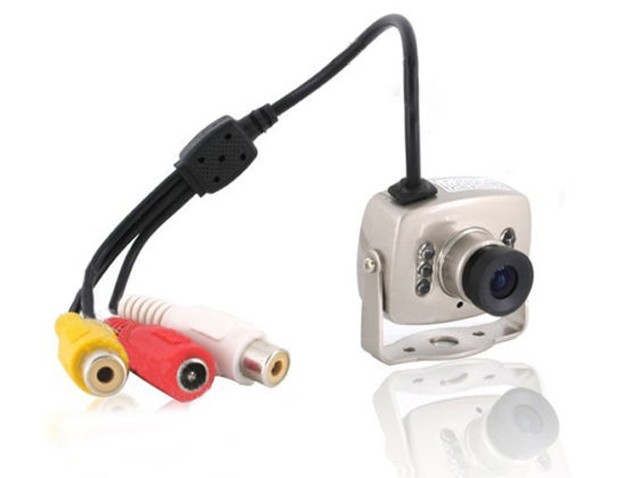

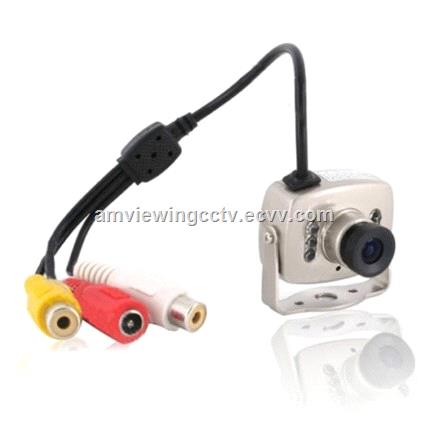

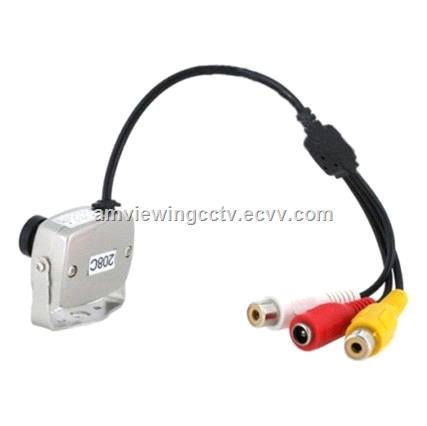

420TVL Mini Hidden Infrared Camera,Night Vision Hidden Camera with Audio

FOB Price:	1.00 - 99.00 USD/Piece
Supply Ability:	100,000 Piece(s) per Month
Shipping:	2-5 work days for samples;6-25 work days for formal order.
Payment Terms:	T/T, Western Union, Paypal

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Color Box,Neutral Packing,Export Carton

Quick Details

420TVL Mini Hidden Infrared CameraNight Vision Hidden Camera With Audio

Specifications

1. 3.6mm lens, 6leds
2. Horizontial resolution : 420Tvl color

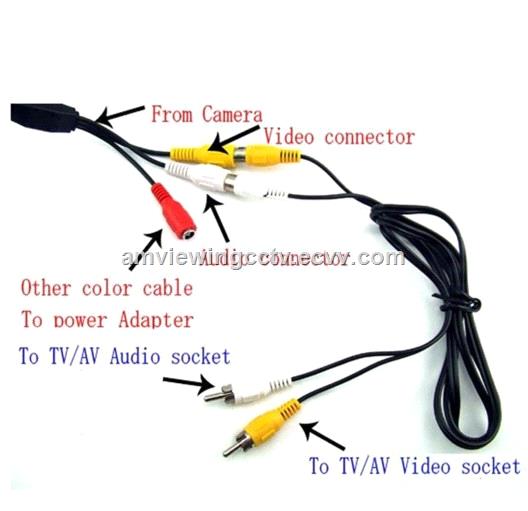

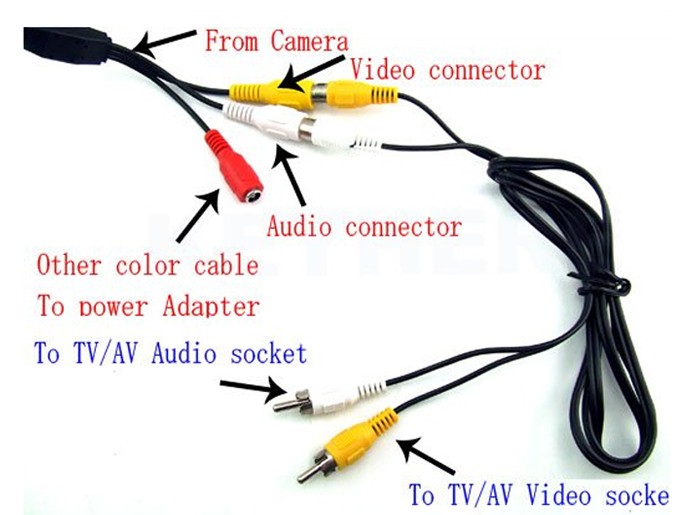

3. Wired/ wireless optional

·Multi function, Small size, Light weight, Low power consumption, power supply easy to install.

·Widely used for monitoring, video meeting, video E-mail, video door-bell, video phone, computer, dolls and car reverse.

·Dimension: 35mm x 28mm x 14mm

·Output Current: 100mA

·Power Supply: 9V

·This camera's lens is 3.6mm

·The power supply is not included

Function index \ Specification	COLOR
Resolution	420 lines
Edit 1 Degree C head-line function	Color saturation brightness and contrast ratio, self balance, exposure time and 2 times gain
Minimum illumination	0.5 Lux
Output standard	CCIR / EIA (PAL / NTSC) standard video signal
Automatic shutter	1/60 second ~ 1/15,000 second
Lens focus and Visual angle	3.6mm 92 Degree
Supply voltage/Consumed power	8-9V
Functions	Automatic exposure control, automatic gain Control, automatic balance adjustment Extemal frame synchronization, aperture Adjustment, Gamma adjustment
We specially supply white and black and color base boards to door bell manufacturers, which can be made to order regarding dimension, Besides, Lenses are selective, We are ready to provide customer-mode OEM (3.6, 6, 8, 12.16mm).
